Mazda
>>
1994
>>
Navajo 2WD V6-4.0L OHV
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>

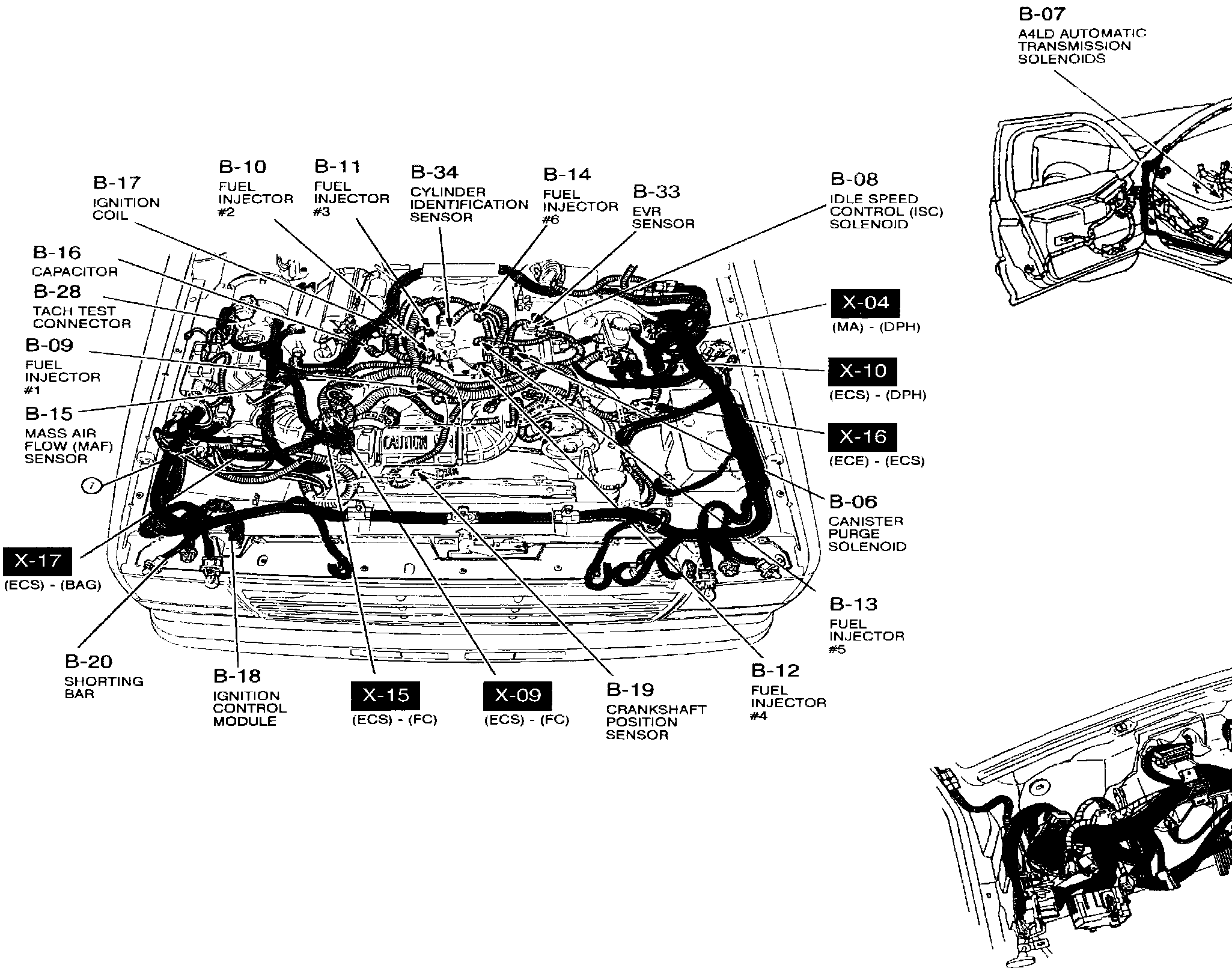

Connector Locations
>>
B-1A
B-1A
ڬ� Connector Locations:
