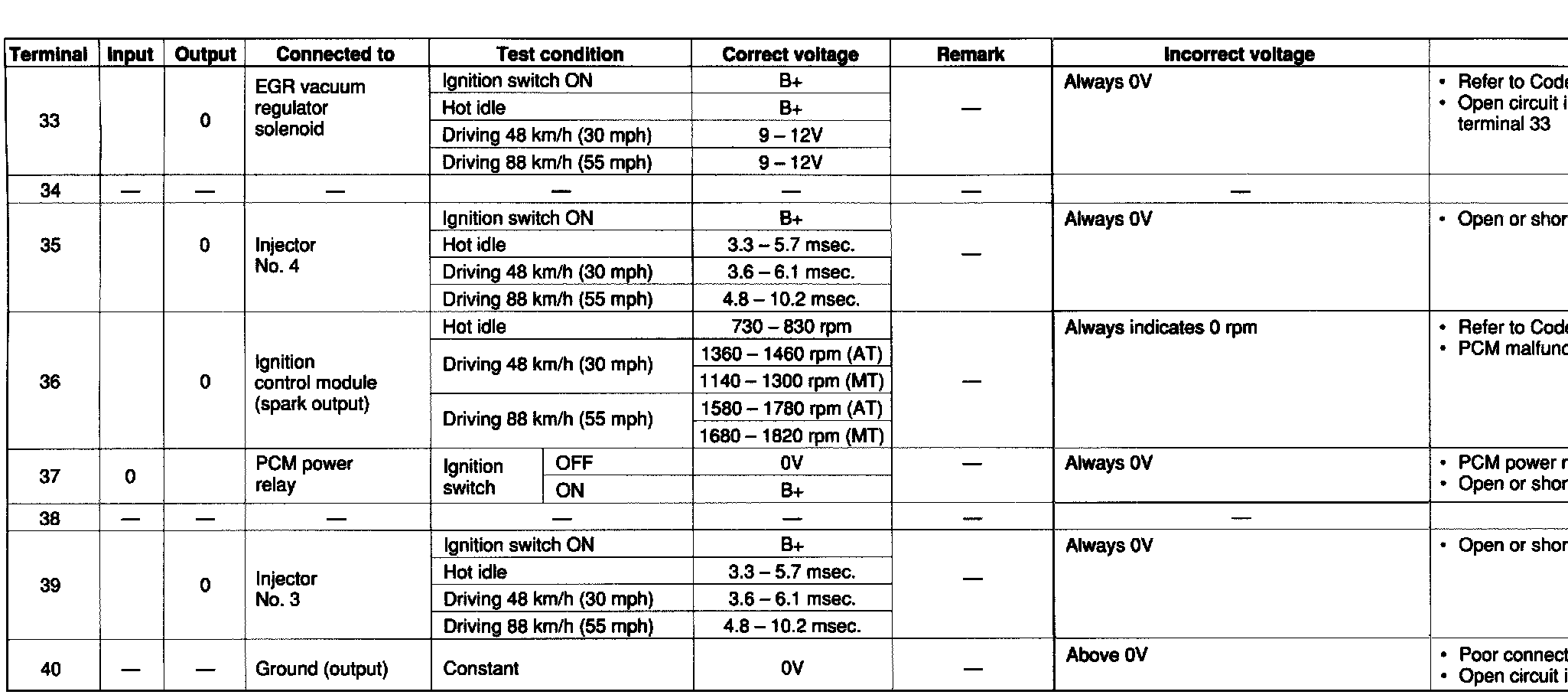

PCM Pins 33 Through 40
PCM Pins 33 Through 40
��� NOTE: All Values Shown May Vary 20% Depending on Operating Conditions. RPM Values are Axle Ratio and Tire Size Dependent:
