Component

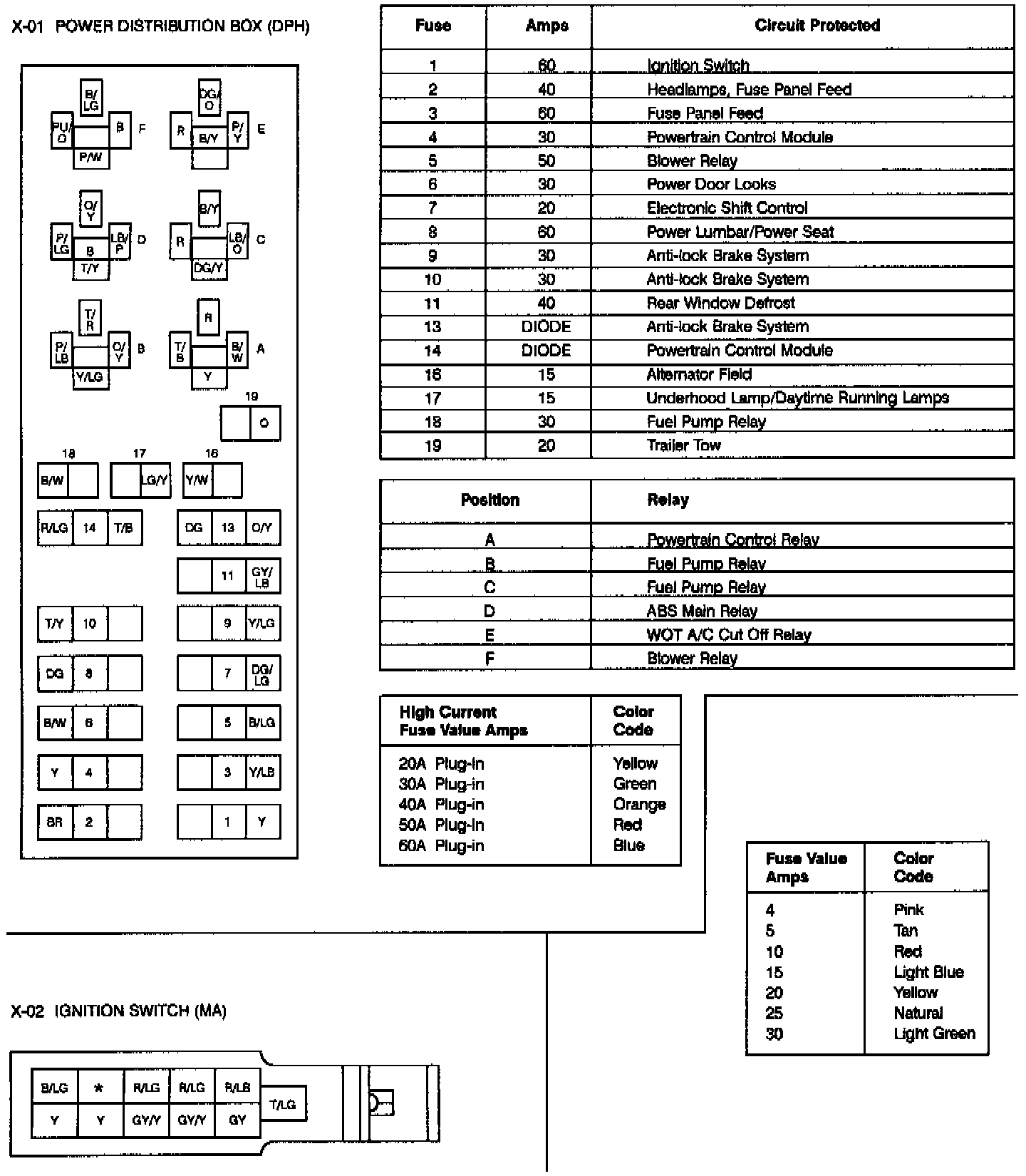

View: Underhood Power Distribution Box:

INSPECTION
1. Remove the Powertrain Control Module (PCM) power relay from the underhood Power Distribution Box.

Check Continuity Between Terminals 30-87:

2. Apply battery voltage (B+) to relay terminal 85, then ground relay terminal 86. Check for continuity between terminals 30 and 87 of the relay.
3. It not as specified, replace the PCM power relay.
