Timing Marks and Indicators: Locations

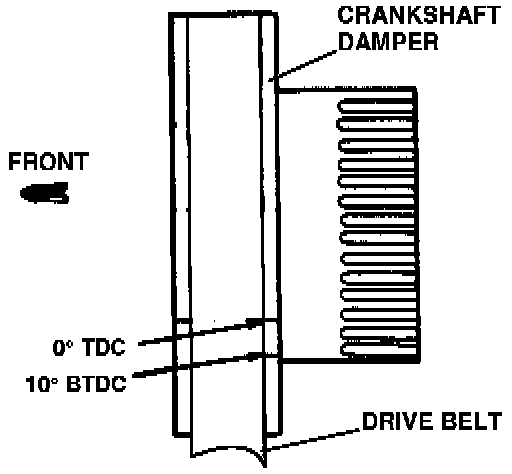

View: Timing Marks:

The crankshaft damper/pulley assembly has two marks which represent the following:
- Top Dead Center (TDC)
- 10° Before Top Dead Center (BTDC)
