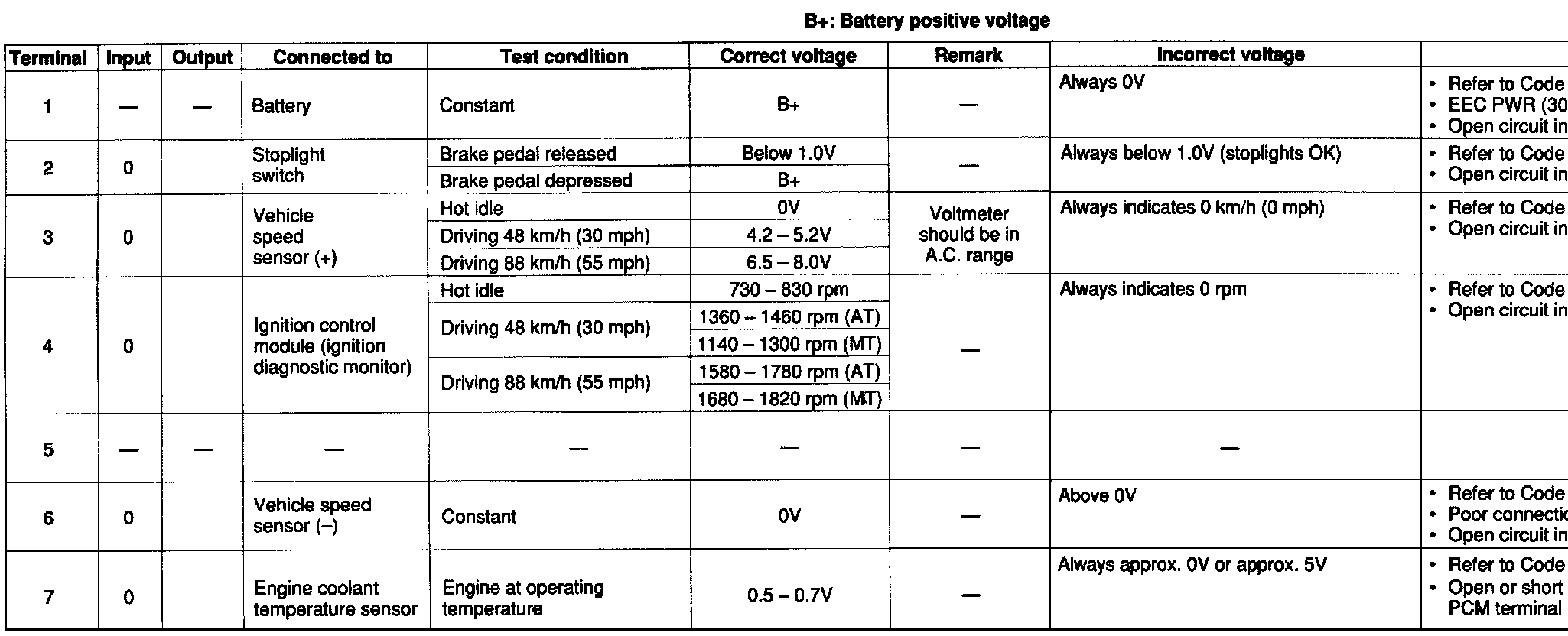

PCM Pins 1 Through 7
PCM Pins 1 Through 7
�� NOTE: All Values Shown May Vary 20% Depending on Operating Conditions. RPM Values are Axle Ratio and Tire Size Dependent:
