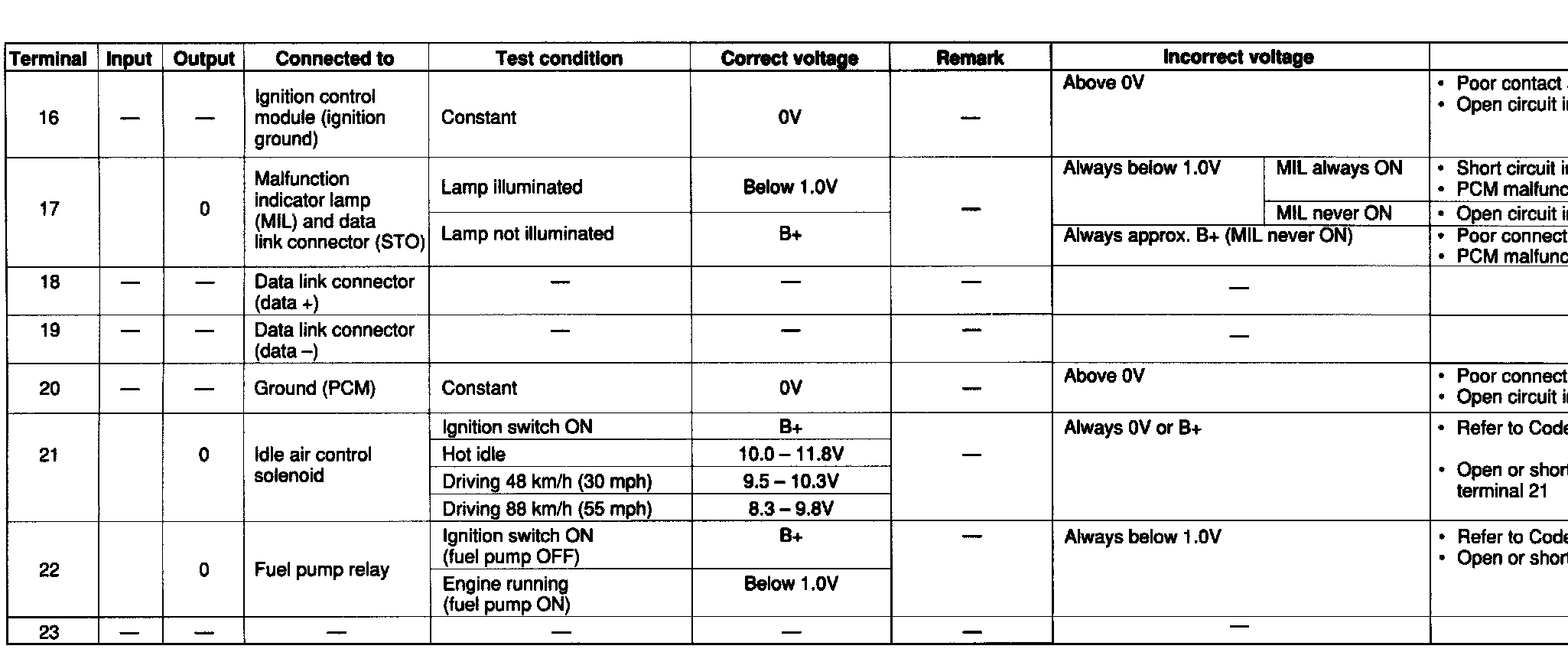

PCM Pins 16 Through 23
�� NOTE: All Values Shown May Vary 20% Depending on Operating Conditions. RPM Values are Axle Ratio and Tire Size Dependent:
