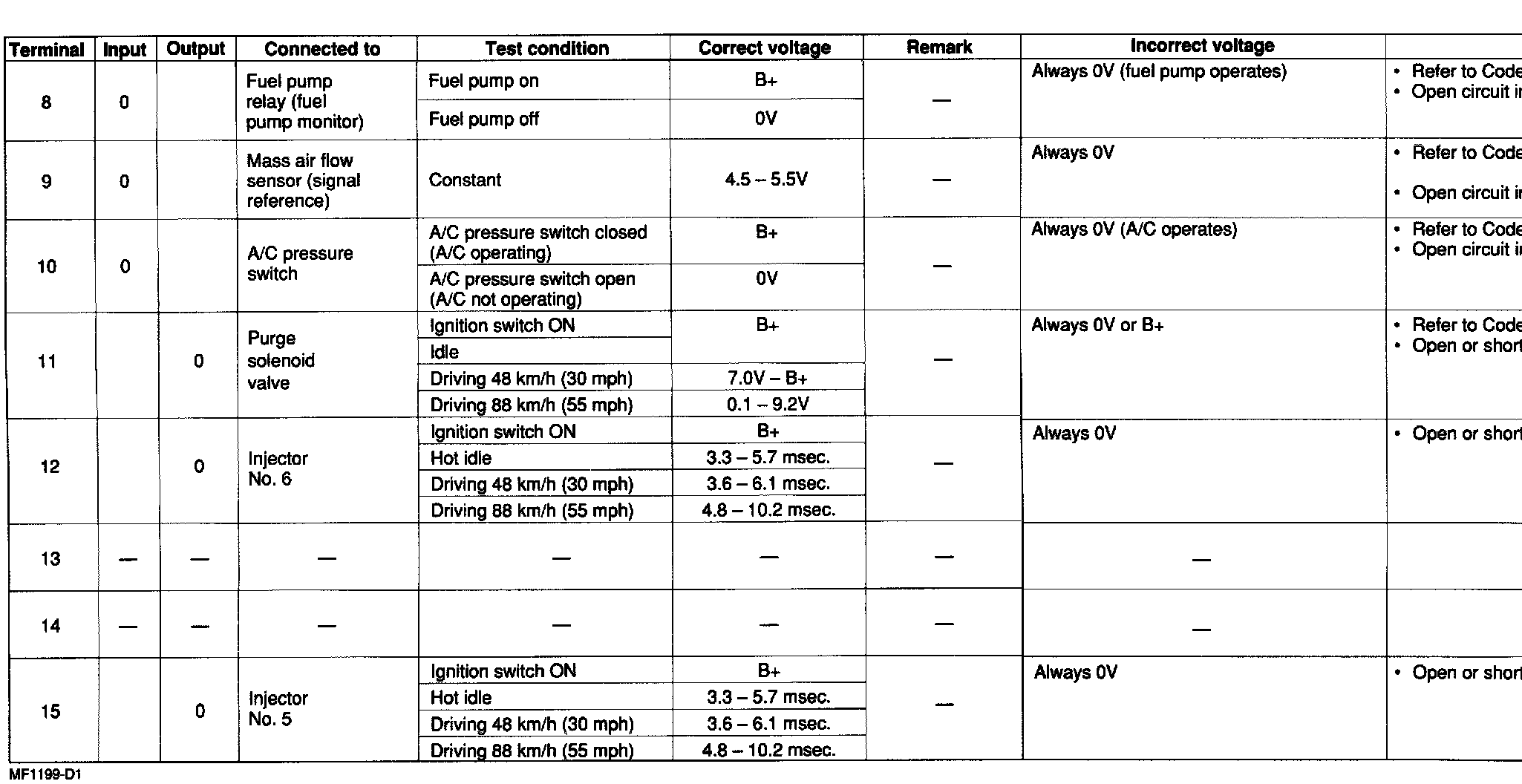

PCM Pins 8 Through 15
PCM Pins 8 Through 15
�� NOTE: All Values Shown May Vary 20% Depending on Operating Conditions. RPM Values are Axle Ratio and Tire Size Dependent:
