Torque Specifications

Intake Torque/Sequence:

Rocker Shafts:

Valve Covers:

Head Torque Sequence:

Tighten the new cylinder head bolts in the order shown in the figure.

Note: This head bolt torque procedure reflects changes per TSB # E00196 dated FEB 96.

Tightening torque
1st Step 30-35 Nm (22-26 ft-lb)
2nd Step 70-75 Nm (52-56 ft-lb)
3rd Step Additional 90°

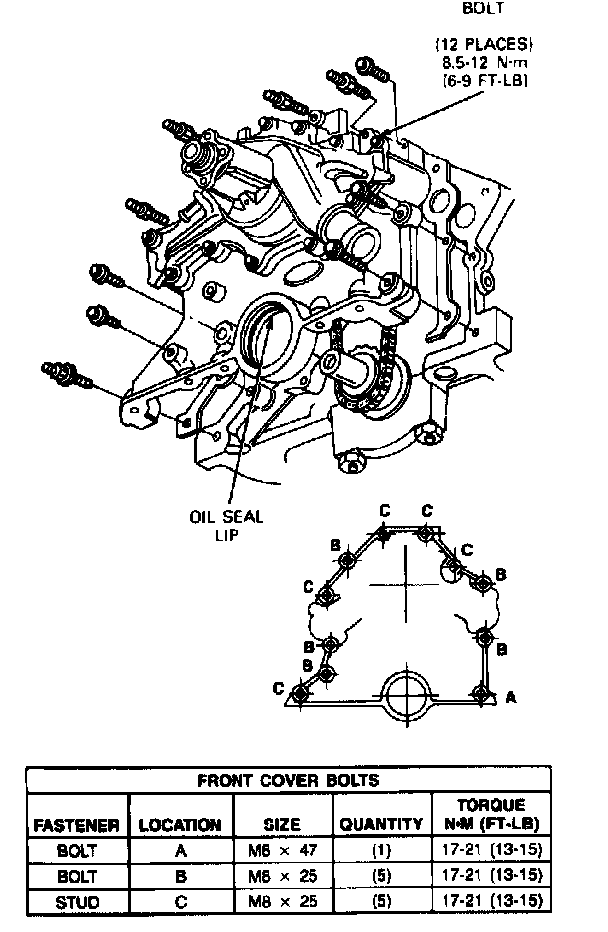

Timing Cover:

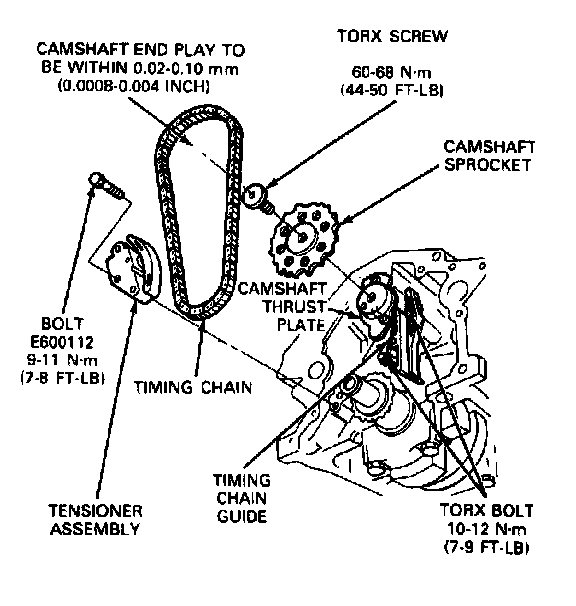

Timing Components:

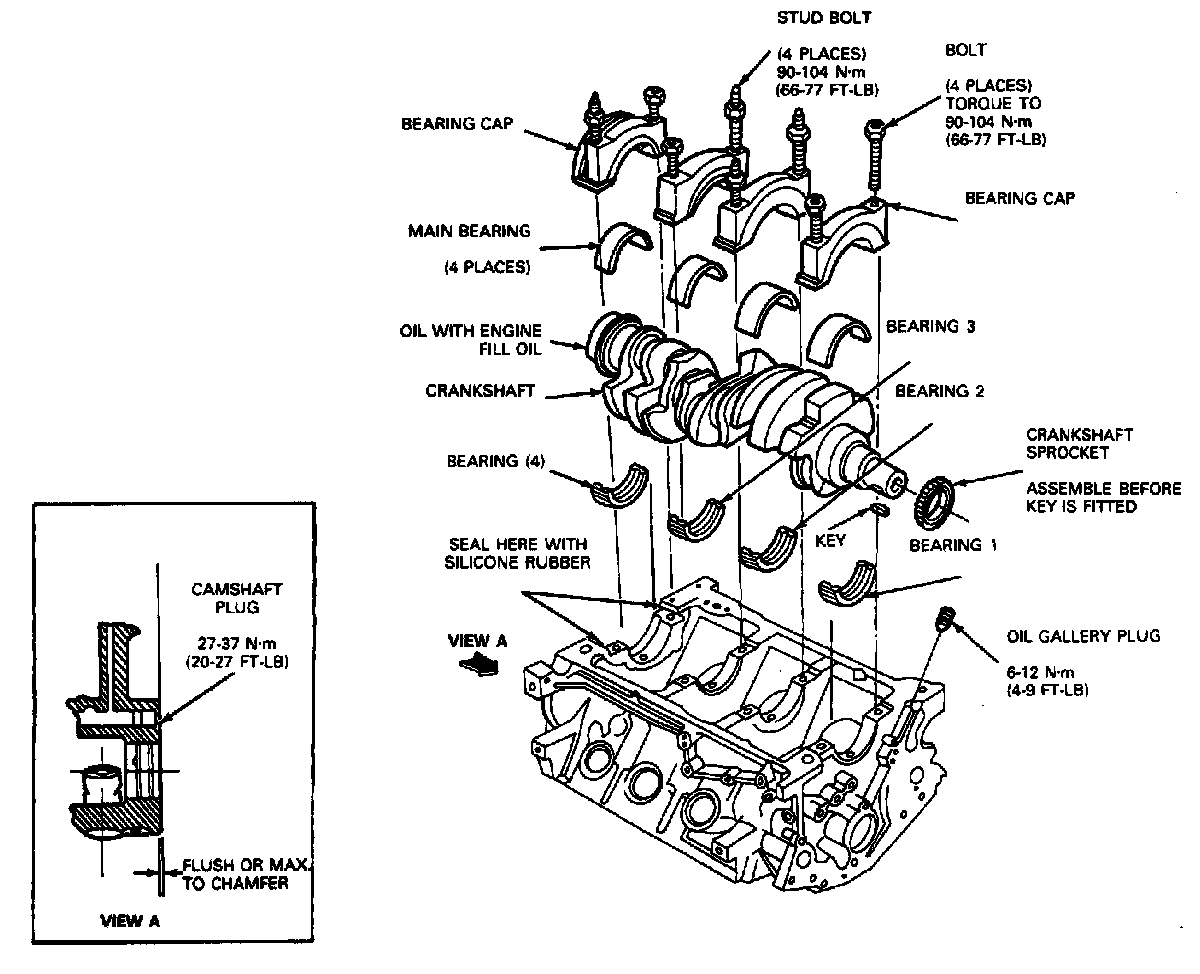

Main Bolts:

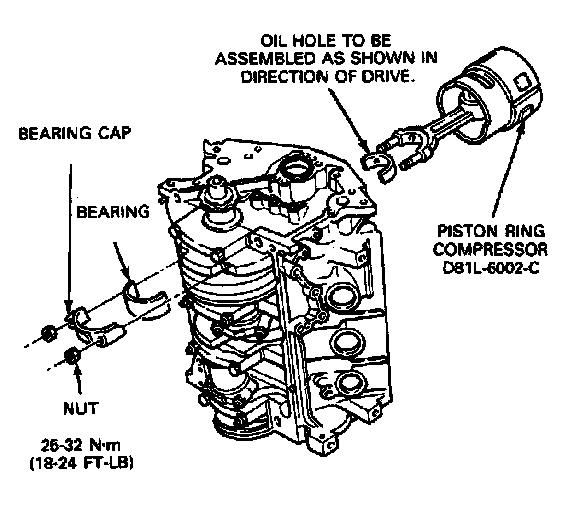

Connecting Rods:

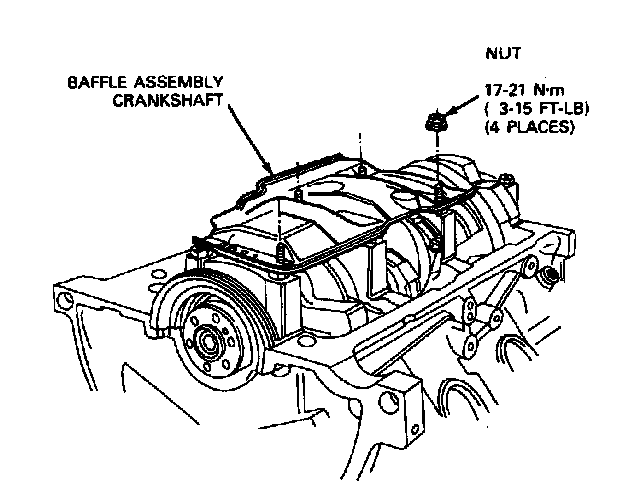

Oil Baffle:

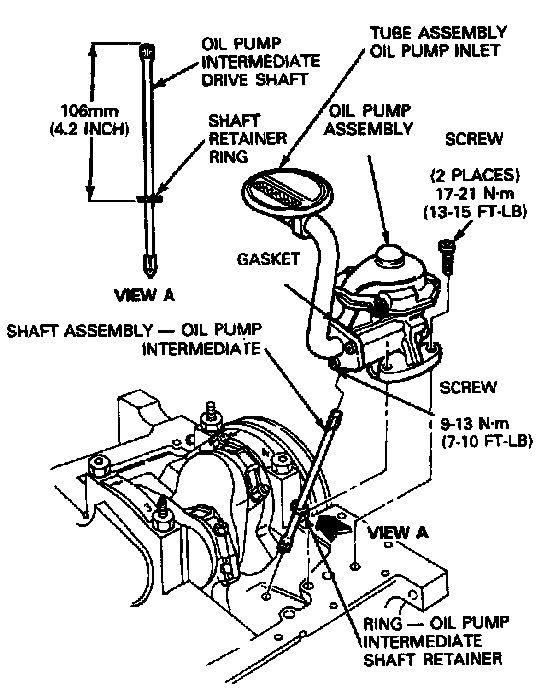

Oil Pump:

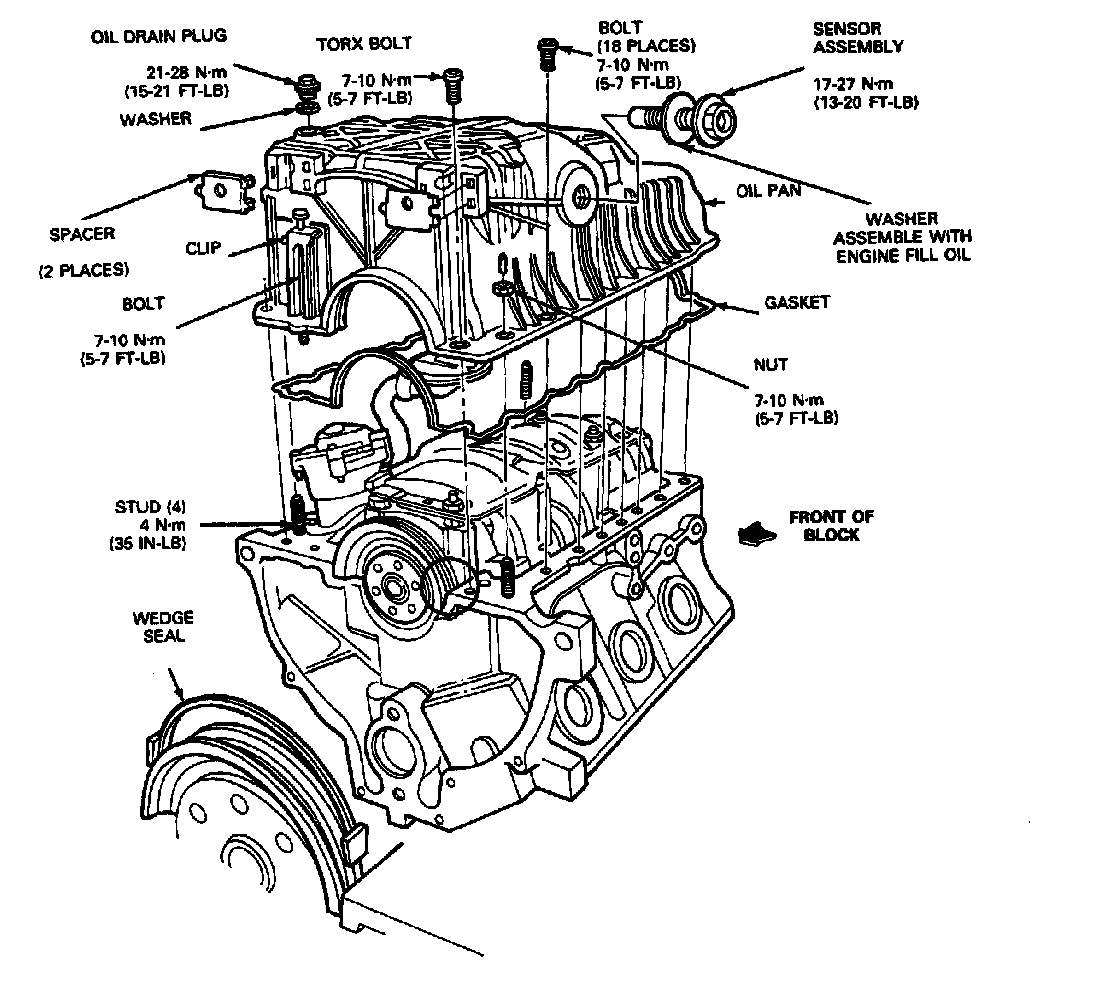

Oil Pan:

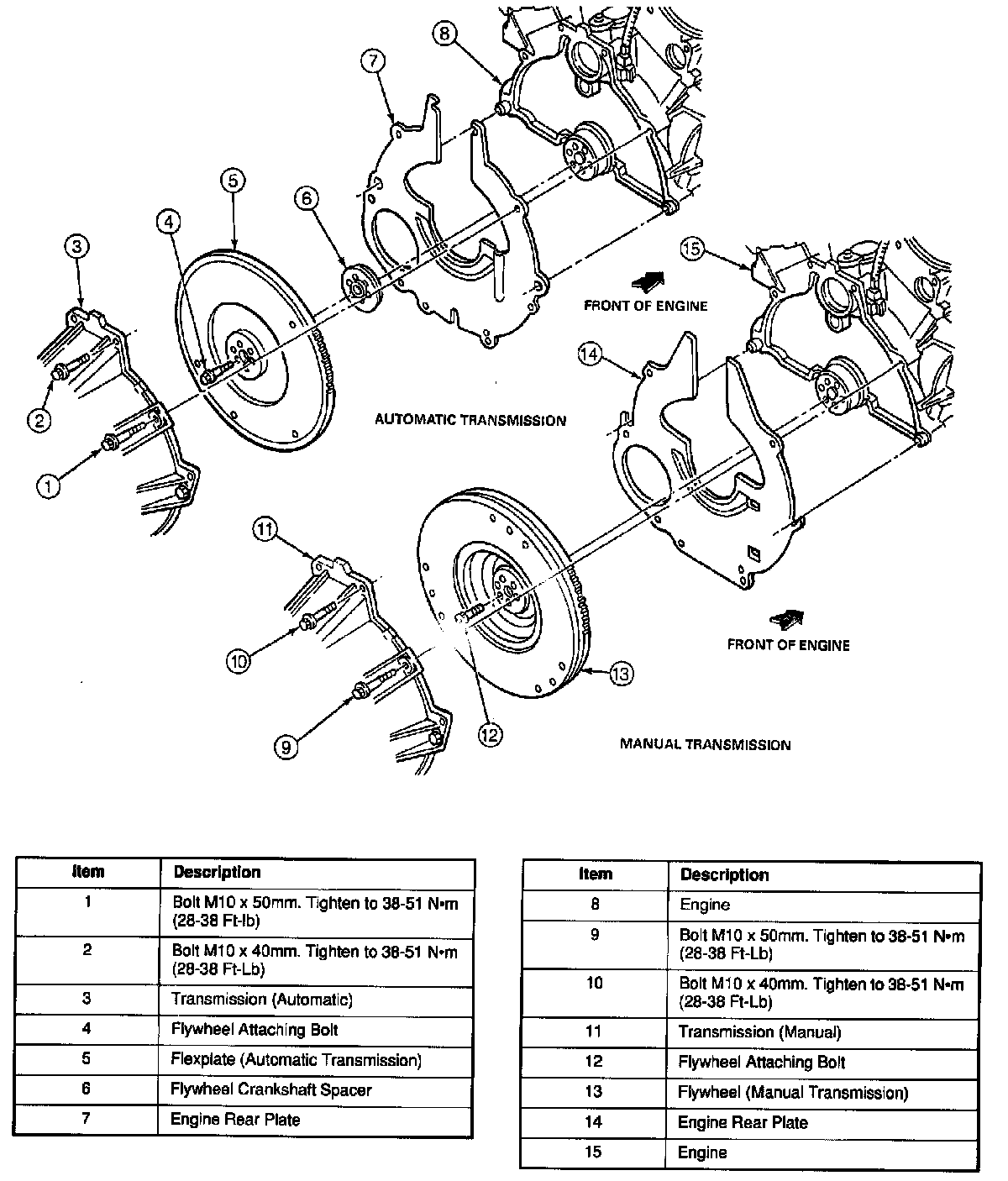

Flex Plate & Flywheel:
