Component Locations

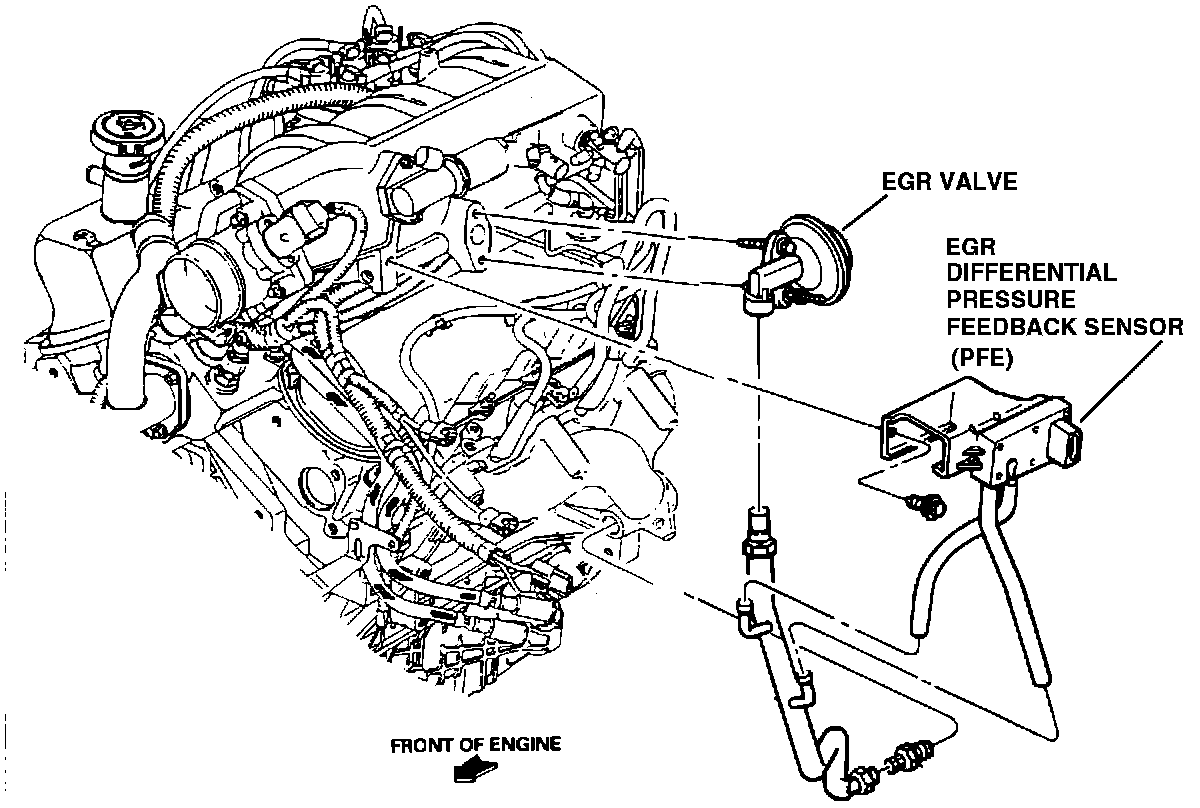

View: Exhaust Gas Recirculation Components:





Located on the left side of the upper intake manifold.
