Fluid - M/T: Testing and Inspection

1. Park the vehicle on level ground.
2. Disconnect the speedometer cable and remove the speedometer driven gear.

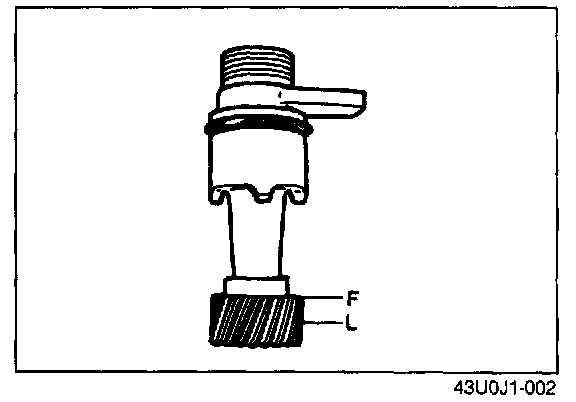

3. Verity that the oil level is between F and L. If the oil level is low, refer to step 6.

4. Install a new O-ring and the speedometer driven gear.

Tightening torque: 7.9 - 11.7 N-m (80 - 120 kgf-cm, 70 - 104 in-lbf)

5. Connect the speedometer cable.
6. Add the necessary amount of the specified oil. Service and Repair
