Intermediate Shaft

1. Disassemble in numerical order, Fig. 37, noting the following:

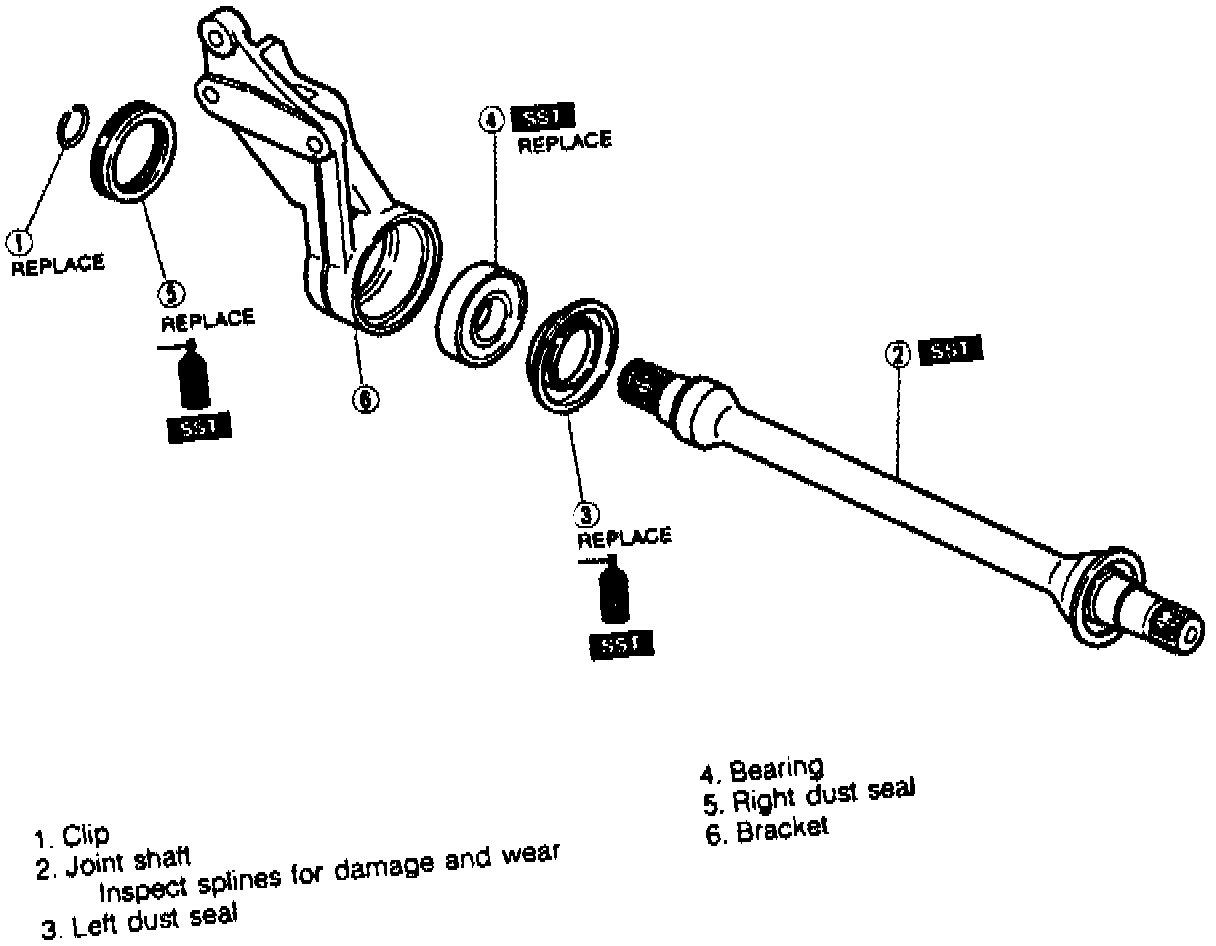

Fig. 37 Exploded View Of Intermediate (Joint) Shaft:

a. Support bearing and press off joint shaft with suitable press. Hold shaft by hand, do not let it drop.
b. Support bracket and remove bearing with suitable press.

2. Reverse procedure to assemble.
