Electrical Coolant Fan System
Purpose To improve idle smoothness and engine reliability.

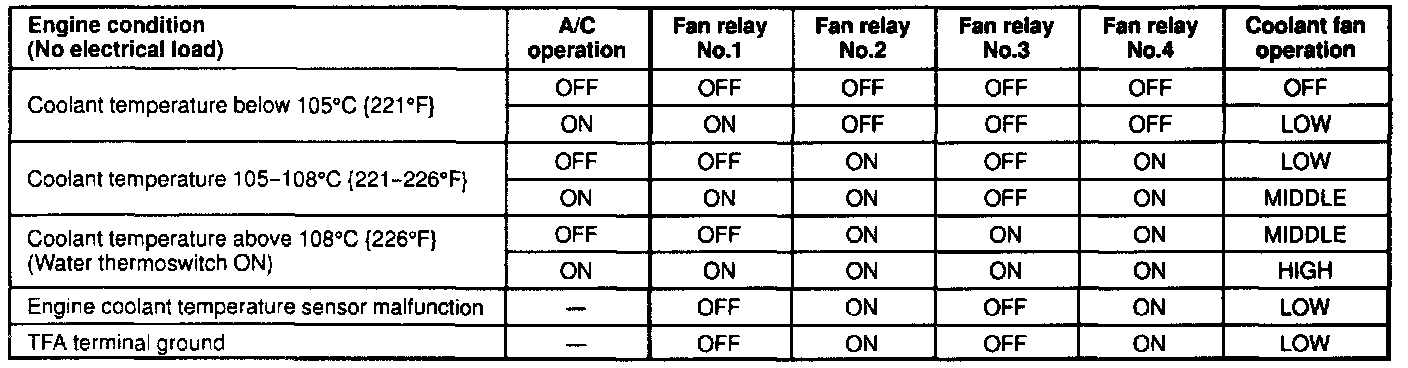

Operation The electrical coolant fan control system controls the electrical fan speed via the powertrain control module engine
(PCME).
Construction This system consist of the coolant fan, fan relays,
PCME, and input devices.
