Evaporative Emissions System: Testing and Inspection
System Inspection 1.
Warm up the engine to normal operating temperature and run it at idle.
2.

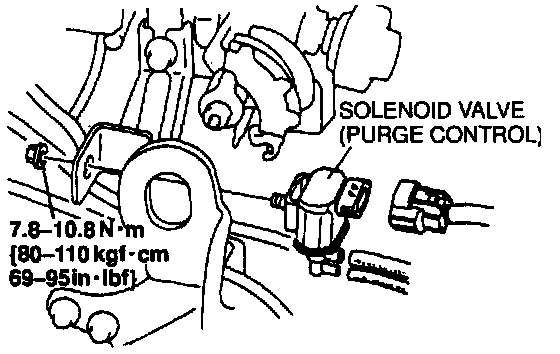

Disconnect the vacuum hose from the solenoid valve (purge control) as shown in the figure, and verify that no vacuum is felt at the solenoid valve.
3.
If not as specified, check the solenoid valve.
