Valve Body, A/T




Torque:

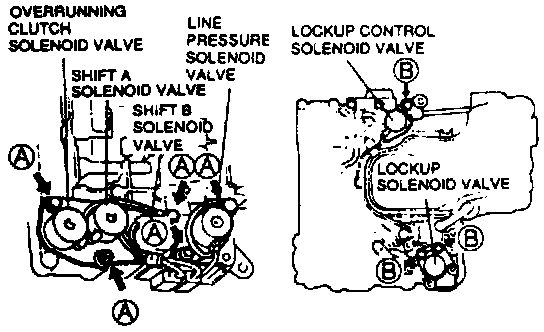

Bolts A: 6.9-9.8 Nm (61-86 in.lb.)
Bolts B: 9.9-12.7 Nm (86.9-112 in.lb.)
