ATF Thermosensor
Inspection 1.
Remove the ATF thermosensor. (Refer to
Service and Repair).
2.

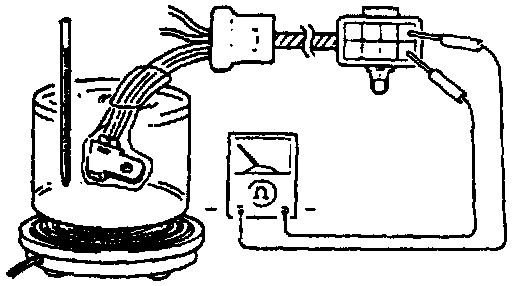

Wrap the ATF thermosensor and place it in water with a thermometer as shown, heat the water gradually.
3.

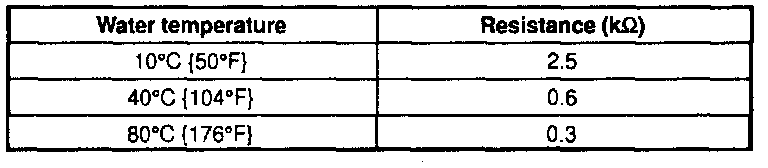

Measure the resistance between the terminals of the thermosensor.
4.
If not correct, replace the ATF thermosensor.
(Refer to
Service and Repair).

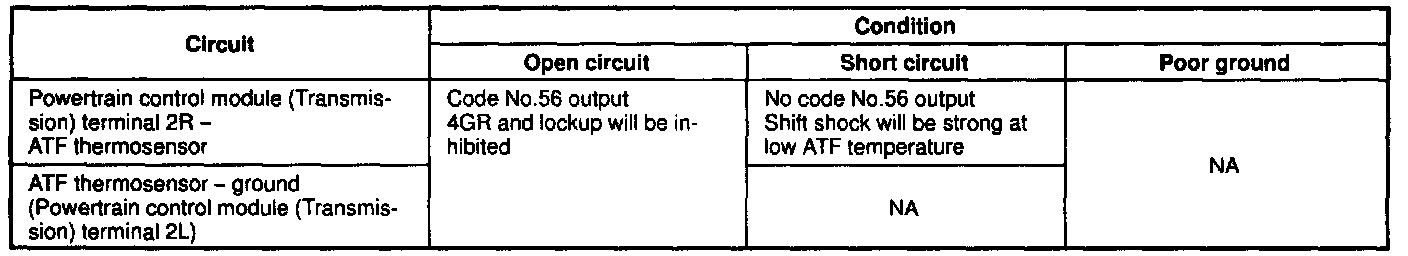

Troubleshooting Tip
