Disassembly

Fig. 1 Marking Bearing Caps:

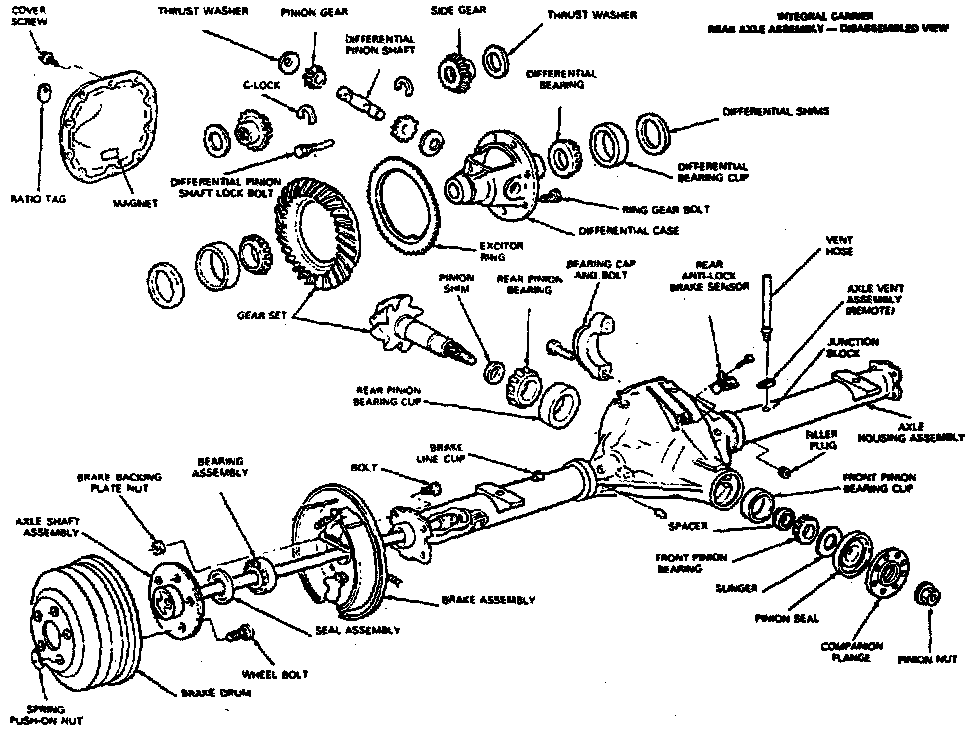

Fig. 2, One-Piece Case Differential Assembly:

1. Apply identification punch marks on the carrier, differential bearing cap and adjuster for reassembly purpose, Fig. 1.
2. Loosen the bearing cap attaching bolts and back off the adjuster slightly to relieve differential bearing preload.
3. Remove the differential assembly together with the bearing outer races. Make certain that each bearing outer race remains with its respective bearing.
4. Remove the drive pinion nut, then the pinion.
5. Disassemble and inspect all parts, Fig. 2. If damaged, replace as necessary.
