Shift Mechanism

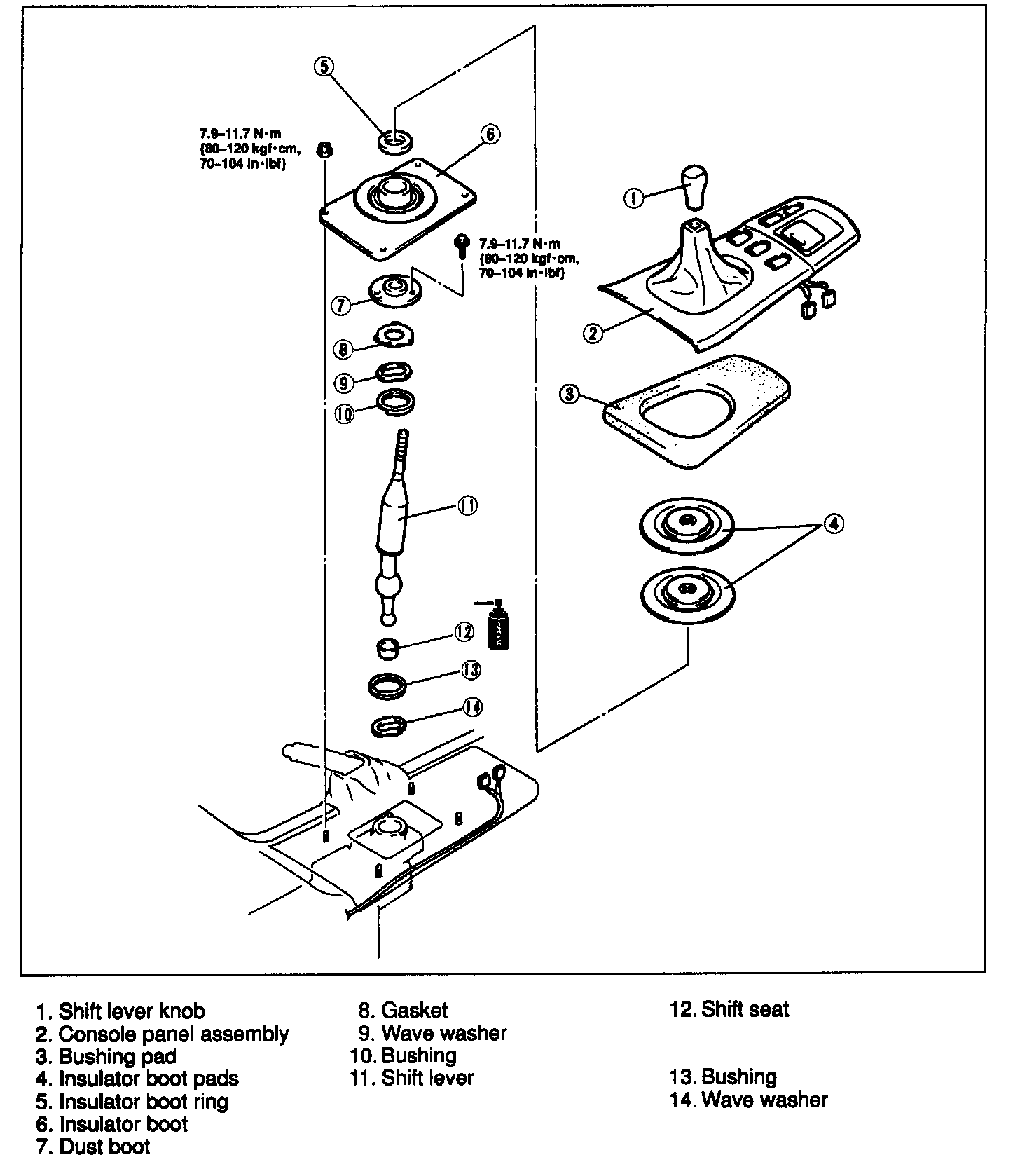

1. Disassemble as shown in the image.
2. Inspect each part, and replace if necessary.
3. Assemble in the reverse order of disassembly.
4. After assembly, pump the clutch pedal and verify that the shift lever moves smoothly.

Assembly Note

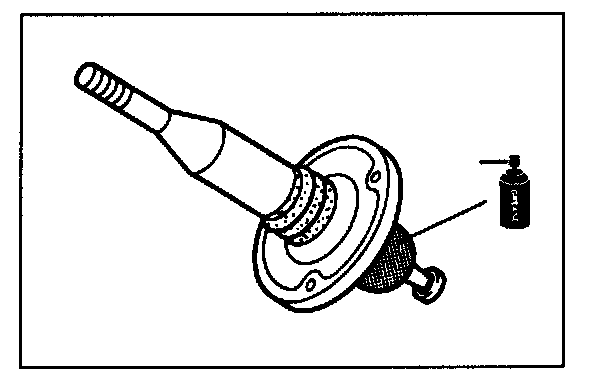

Shift seat
Apply grease to both the inside and outside of the shift seat.

Shift lever




The change control case must be filled with oil after the transmission has been reassembled and installed.

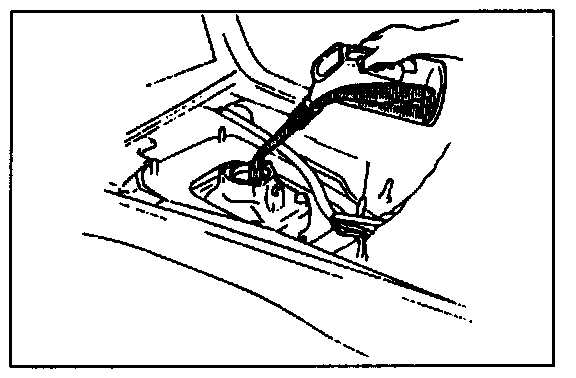

1. Fill the change control case with the specified oil.

Capacity: 80 - 95 cc (4.9 - 5.8 cu in)

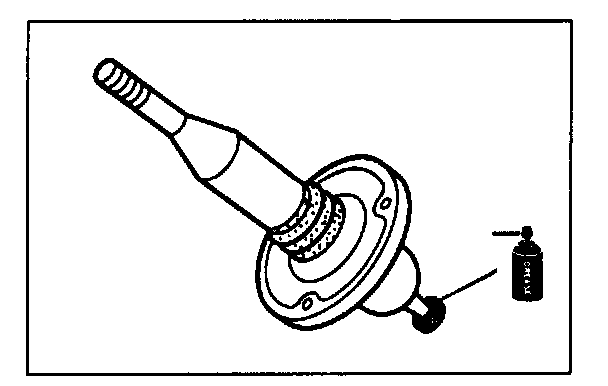

2. Apply grease to the shift lever ball joint.

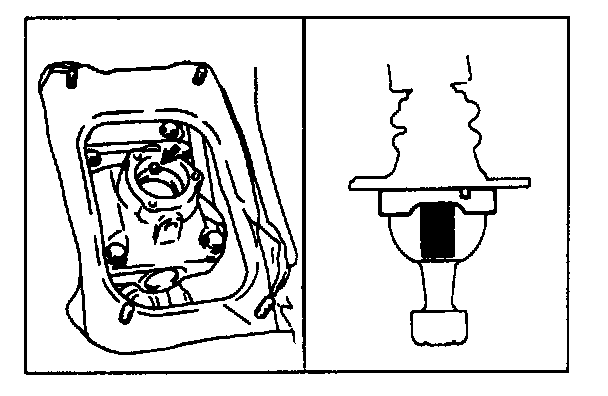

3. Align the control case pin with the slots in the change bushings and the shift lever, and install.
