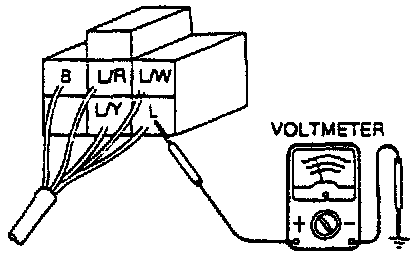

Fig. 10, Wiper Circuit Test Connections:

Voltage Test
Refer to Fig. 10 for the following.
1. Disconnect wiper motor connector, measure voltage between terminal L and ground with ignition on.
2. If there is no voltage, check fuse and wiring.
3. Using an ohmmeter, ensure there is continuity between terminal B and ground, if not inspect wiring.

Fig. 11, Wiper Motor Test Connections:

Motor Test
Refer to Fig. 11.
1. Connect battery voltage to terminal B of wiper motor, ground terminal A. Motor should turn at low speed.
2. Connect negative lead to terminal C. Motor should turn at high speed.
3. If the checks are not as specified, repair or replace motor as necessary.
