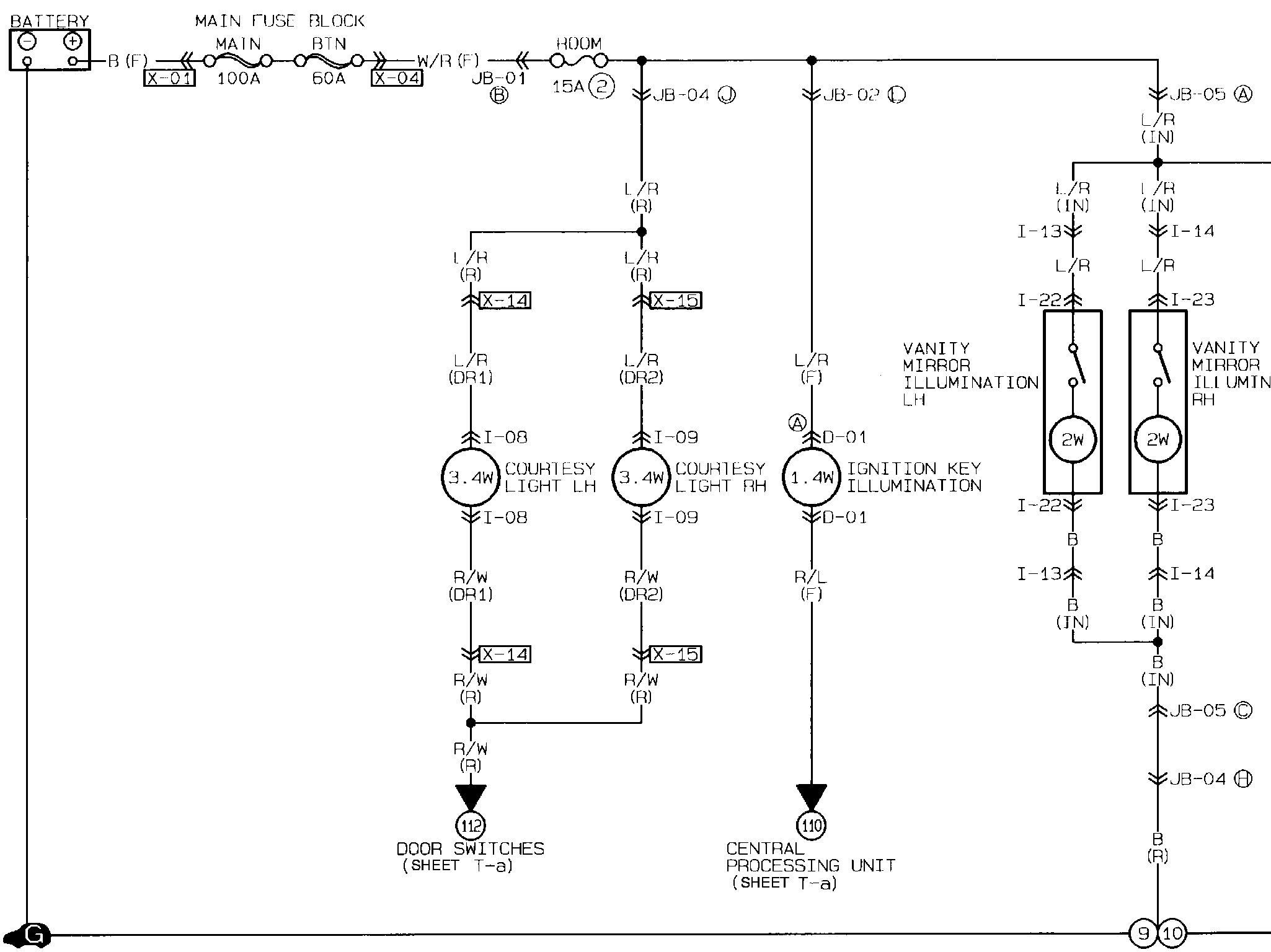

Interior Lighting Module

��Courtesy Lights, Ignition Key Illumination, Spot Lights, Interior Lights, Vanity Mirror Lights:
