Clutch Switch: Service and Repair




REPLACEMENT
1. Disconnect the clutch switch connector.

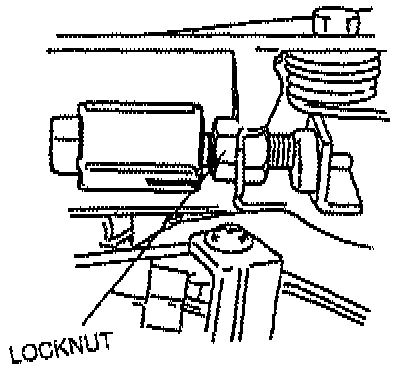

2. Loosen the locknuts.
3. Remove the clutch switch.
4. Install in the reverse order of removal.
5. Adjust the pedal height.
