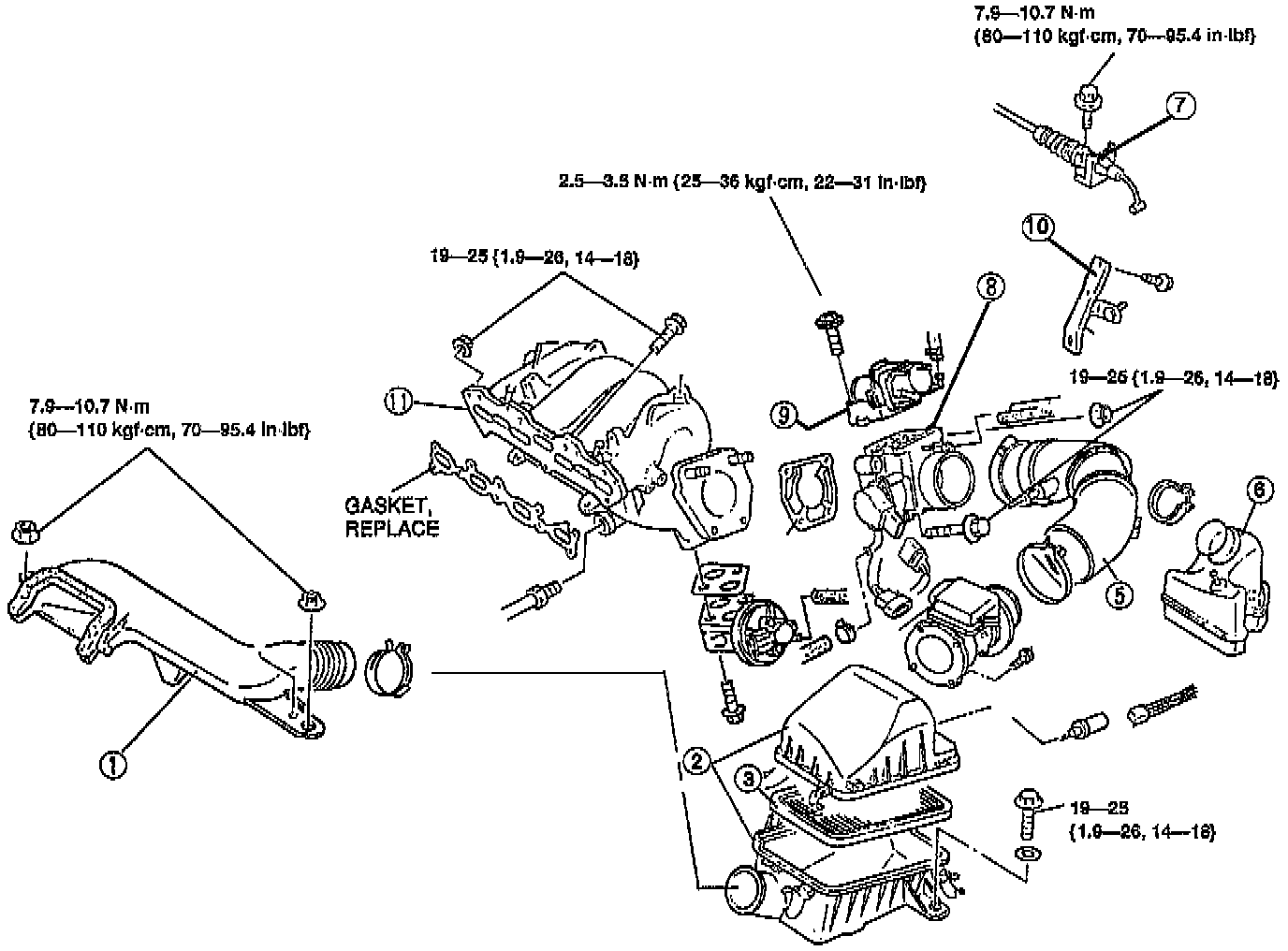

Intake Air System

INTAKE AIR SYSTEM
1. Fresh air duct
2. Air cleaner
3. Air cleaner element
4. Mass air flow sensor
5. Air hose
6. Resonance chamber
7. Accelerator cable
8. Throttle body
9. BAG valve
10. [1][2]Intake manifold bracket
11. [1][2]Intake manifold
