EGR Valve Position Sensor
>>
Specifications
>>
Manual Trans.
Manual Trans.

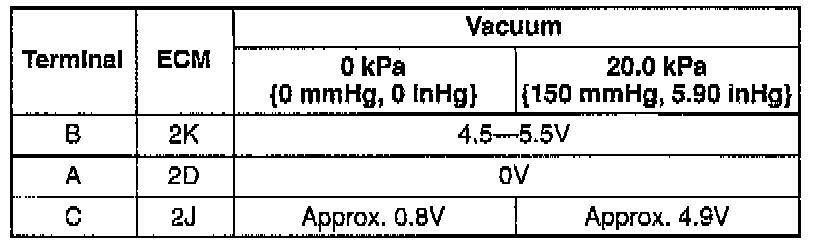

INSPECTION OF OUTPUT VOLTAGE

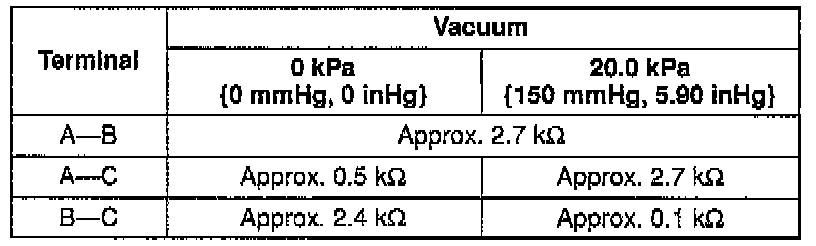

INSPECTION OF RESISTANCE
