Home >> Mazda >> 1995 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> EGR Valve Position Sensor >> Automatic Trans.

Automatic Trans.

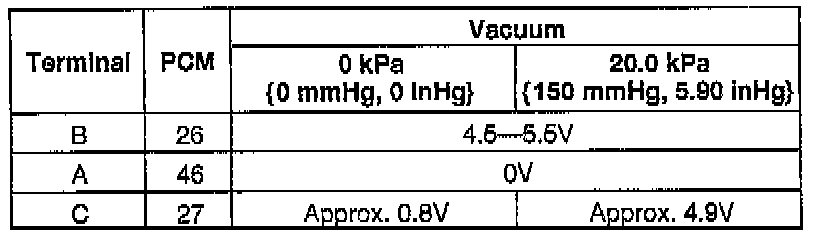

OUTPUT VOLTAGE CHART

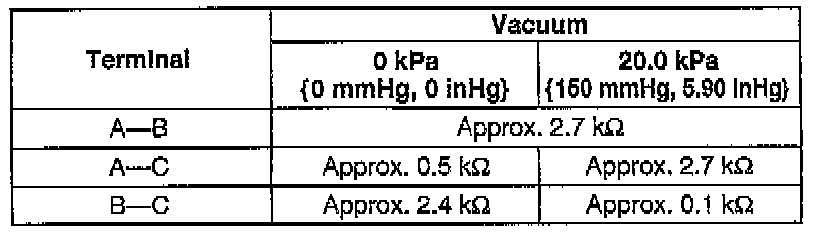

RESISTANCE CHART
