Mazda
>>
1995
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine - Coolant Temperature Sensor/Switch
>>
Automatic Trans.
Automatic Trans.

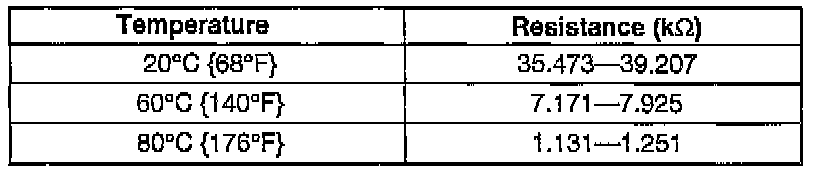

RESISTANCE CHART
