Fuel Filter: Service and Repair
REPLACEMENTHigh pressure side
1. Disconnect the fuel hoses from the fuel filter.

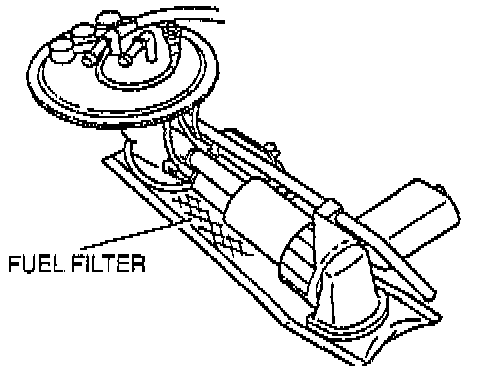

2. Remove the fuel filter and bracket.
3. Install in the reverse order of removal as shown in image.
4. Verify that the fuel hoses are pushed fully onto the fuel filter nozzles.
1. Negative battery cable
2. Air cleaner housing
3. Harness
4. Fuel filter (High pressure side)
REMOVAL/INSTALLATION
Low pressure side (in-tank filter)
1. Remove the fuel tank.

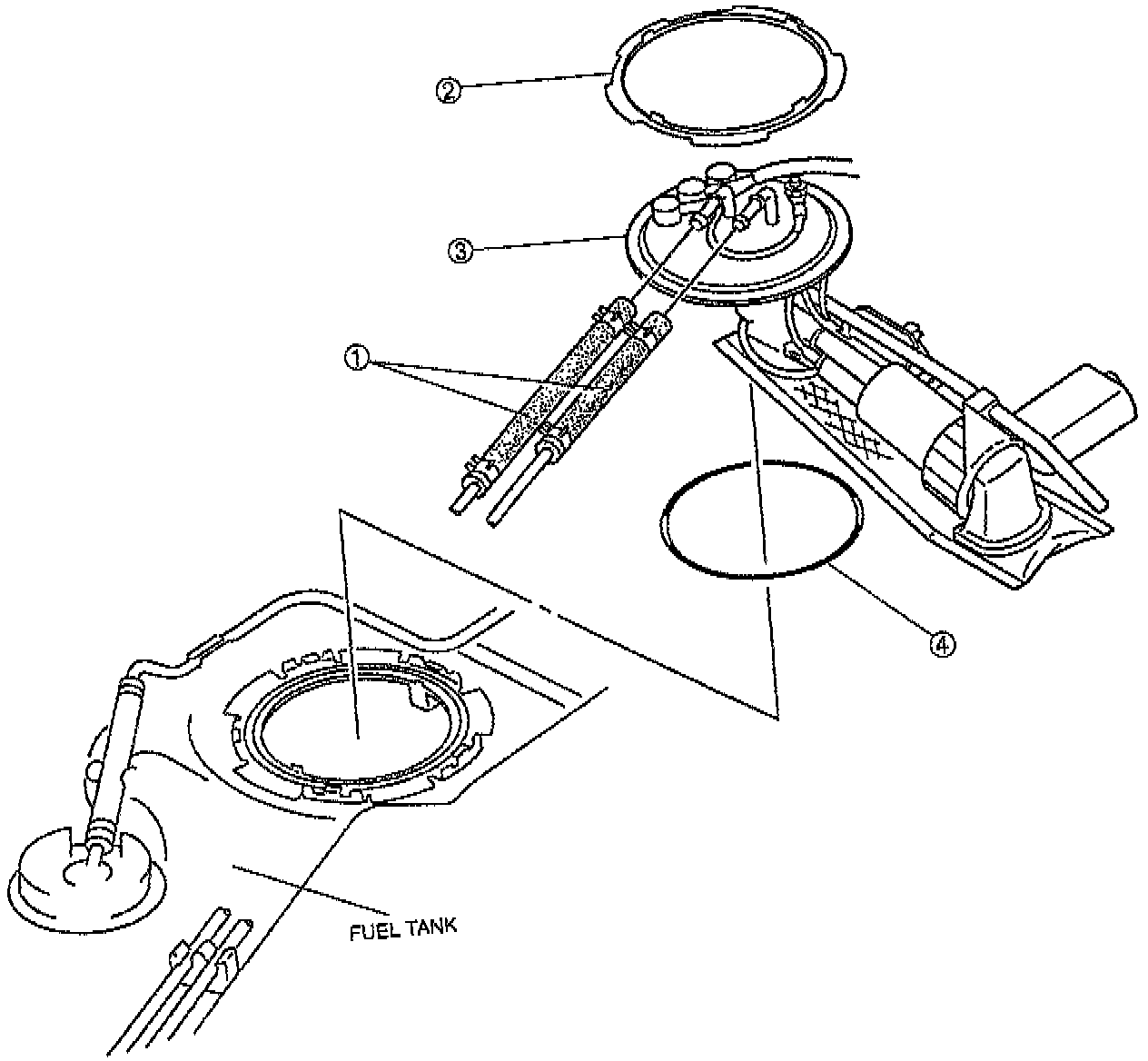

2. Remove in the order shown in the figure, referring to Removal Note.
3. Install in the reverse order of disassembly, referring to Installation Note.
1. Fuel hose
2. Fuel pump ring
3. Fuel pump
4. Fuel pump gasket
Removal Note
Rotate the fuel pump ring counterclockwise, and remove it.
Installation Note
Rotate the fuel pump ring clockwise until the flange touches the stopper.
