Home >> Mazda >> 1995 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Throttle Position Sensor

Throttle Position Sensor

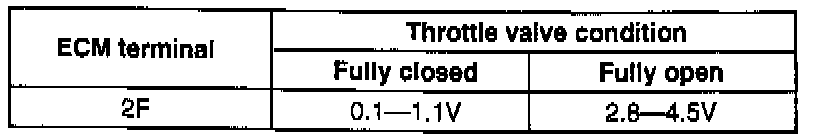

Throttle Position Sensor / Variable Resistor

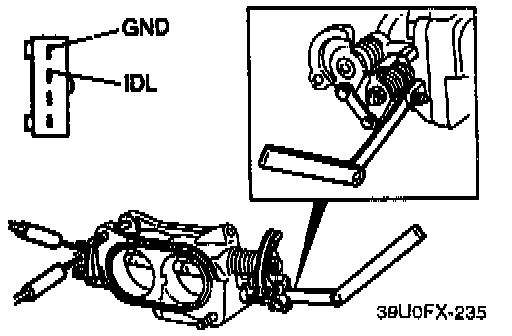

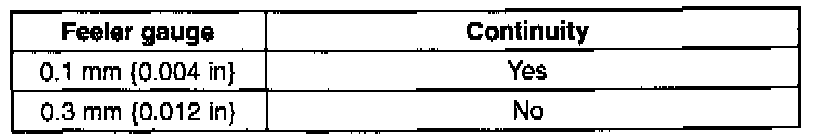

Throttle Position Sensor / Closed Throttle Position Switch
