Home >> Mazda >> 1995 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> CD Changer

CD Changer

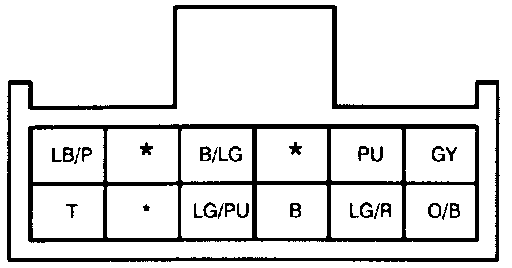

J-413 CD Changer:
