B2300 2WD L4-2.3L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
General Module
>>
T-1A
>>
T-224
T-224

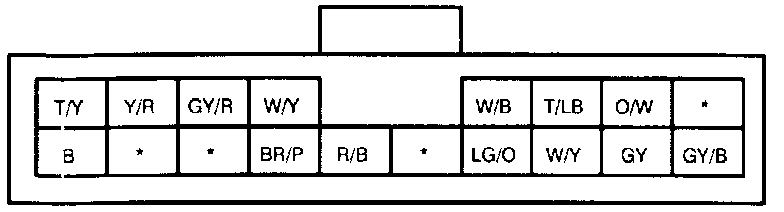

T-224 Generic Electronic Module (GEM) (MA):
