Home >> Mazda >> 1995 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

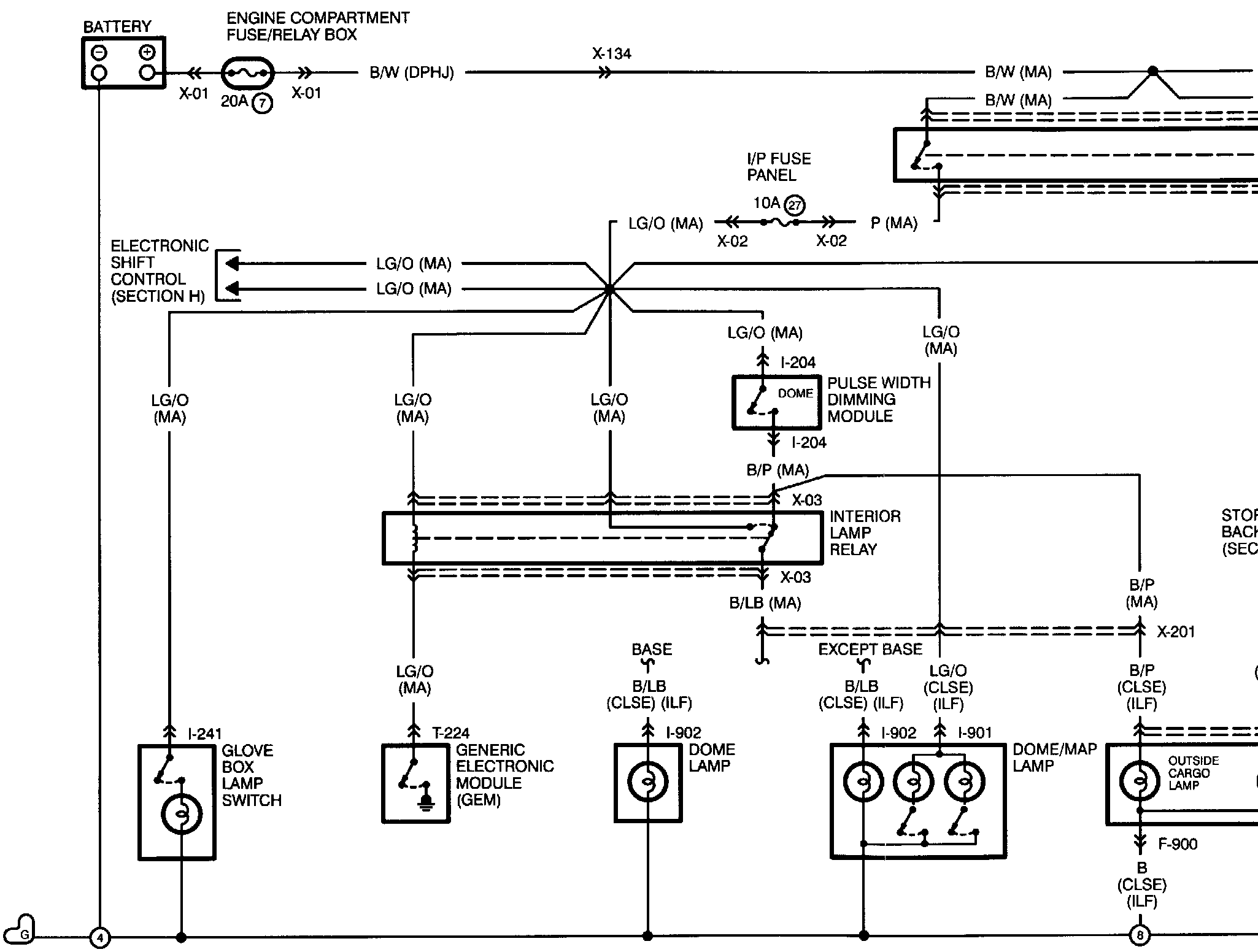

Interior Lighting Module

M�Interior Lamps, Cargo Lamp, Courtesy Lamps And Underhood Lamp:
