Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

INSPECTION

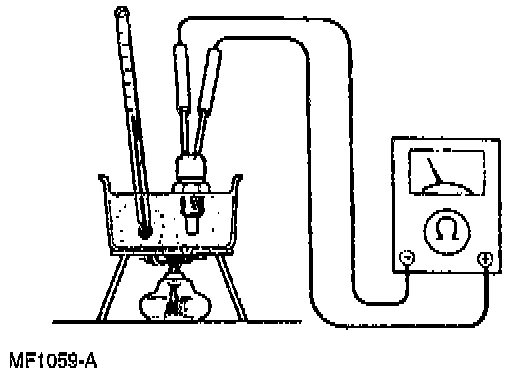

1. Place the sensor in water with a thermometer and heat the water gradually.

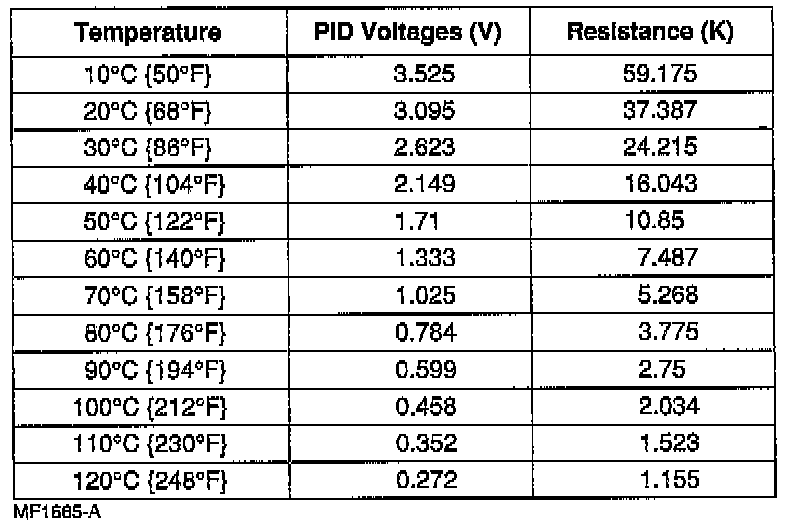

2. Measure the resistance of the sensor.







3. If not as specified replace the intake air temperature sensor.
