Power Steering Pressure Switch: Testing and Inspection

INSPECTION
1. Disconnect the power steering pressure switch.
2. Start the engine and let it idle.
3. Connect an ohmmeter to the switch.

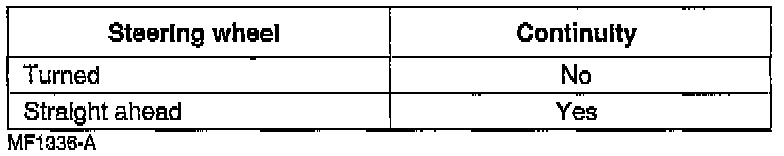

4. Check the continuity between the terminals of the switch.




5. If not as specified replace the power steering pressure switch.
