EGR Valve: Service and Repair

REPLACEMENT

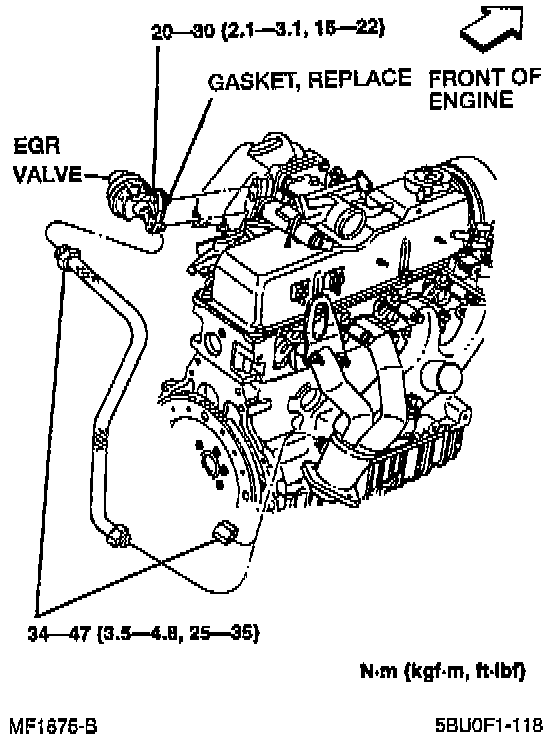

1. Remove the EGR valve in the sequence shown below:




1. EGR pipe
2. Vacuum hose
3. EGR valve and gasket

Note: Before installing the EGR valve, install new gaskets.

2. Install the EGR valve in the reverse order of removal.
