Transmission Temperature Sensor/Switch: Testing and Inspection

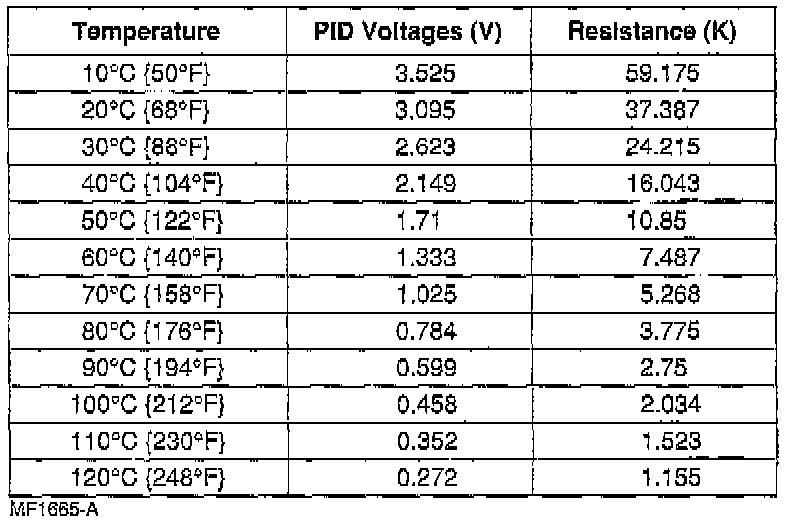

INSPECTION1. Access TFT PID.
2. Monitor the TFT PID voltage as the engine warms to normal operating temperature.
3. If TFT PID does not increase as engine reaches normal operating temperature, replace TFT sensor.
