Wiper and Washer Systems: Testing and Inspection

Refer to Fig. 27 through 35 for troubleshooting procedures.

Fig. 27 Troubleshooting Checklist:

Fig. 28 Troubleshooting Flowchart No. 1 (part 1 Of 2):

Fig. 28 Troubleshooting Flowchart No. 1 (part 2 Of 2):

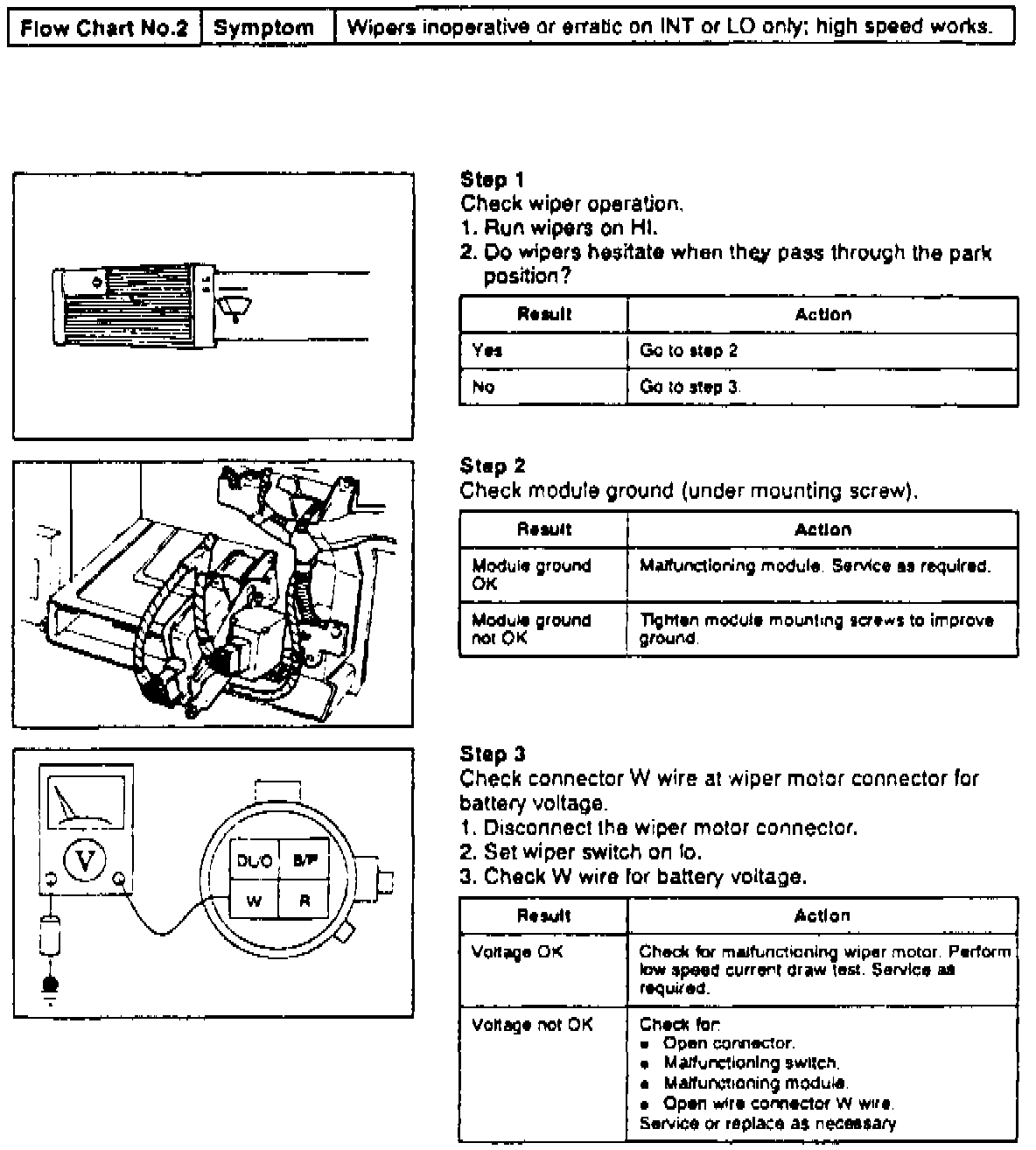

Fig. 29 Troubleshooting Flowchart No. 2:

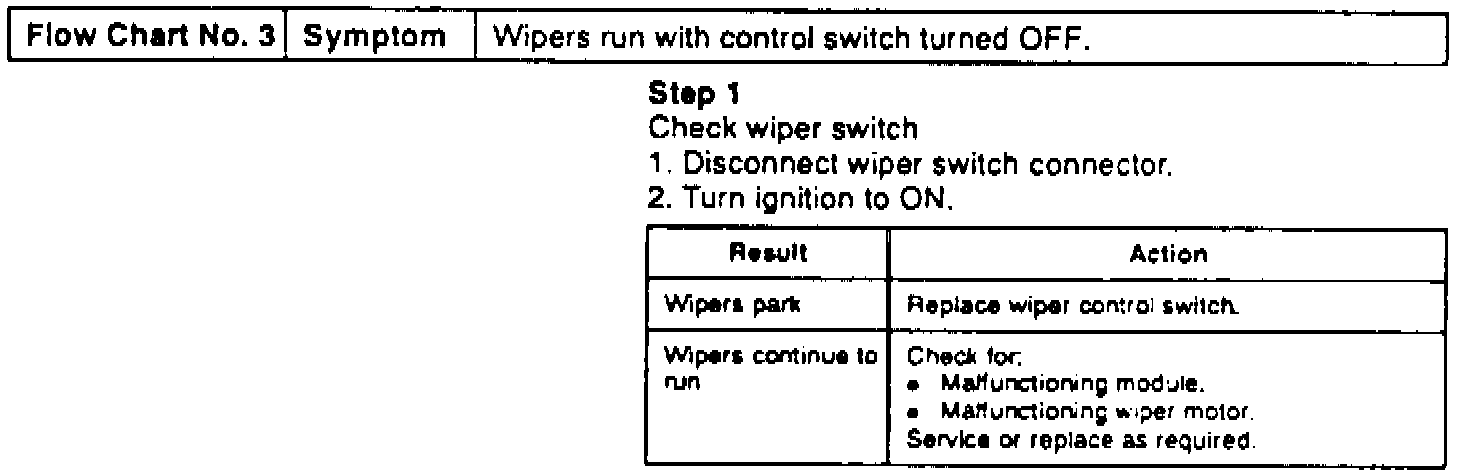

Fig. 30 Troubleshooting Flowchart No. 3:

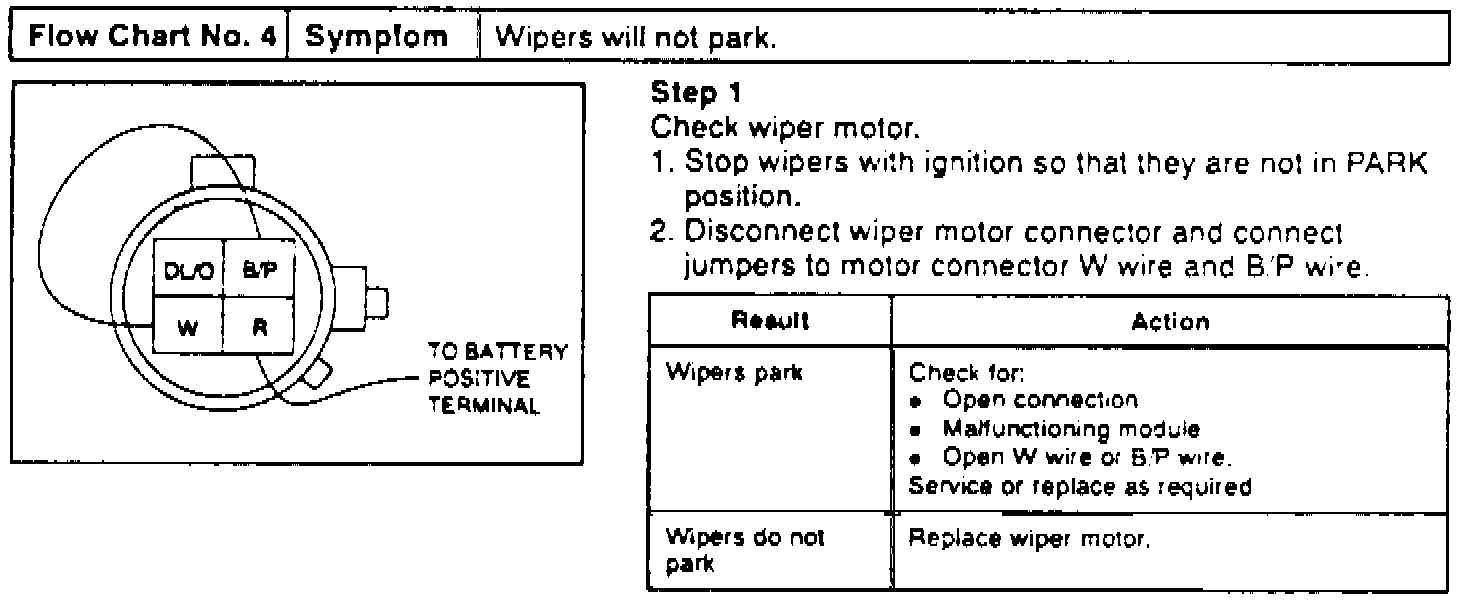

Fig. 31 Troubleshooting Flowchart No. 4:

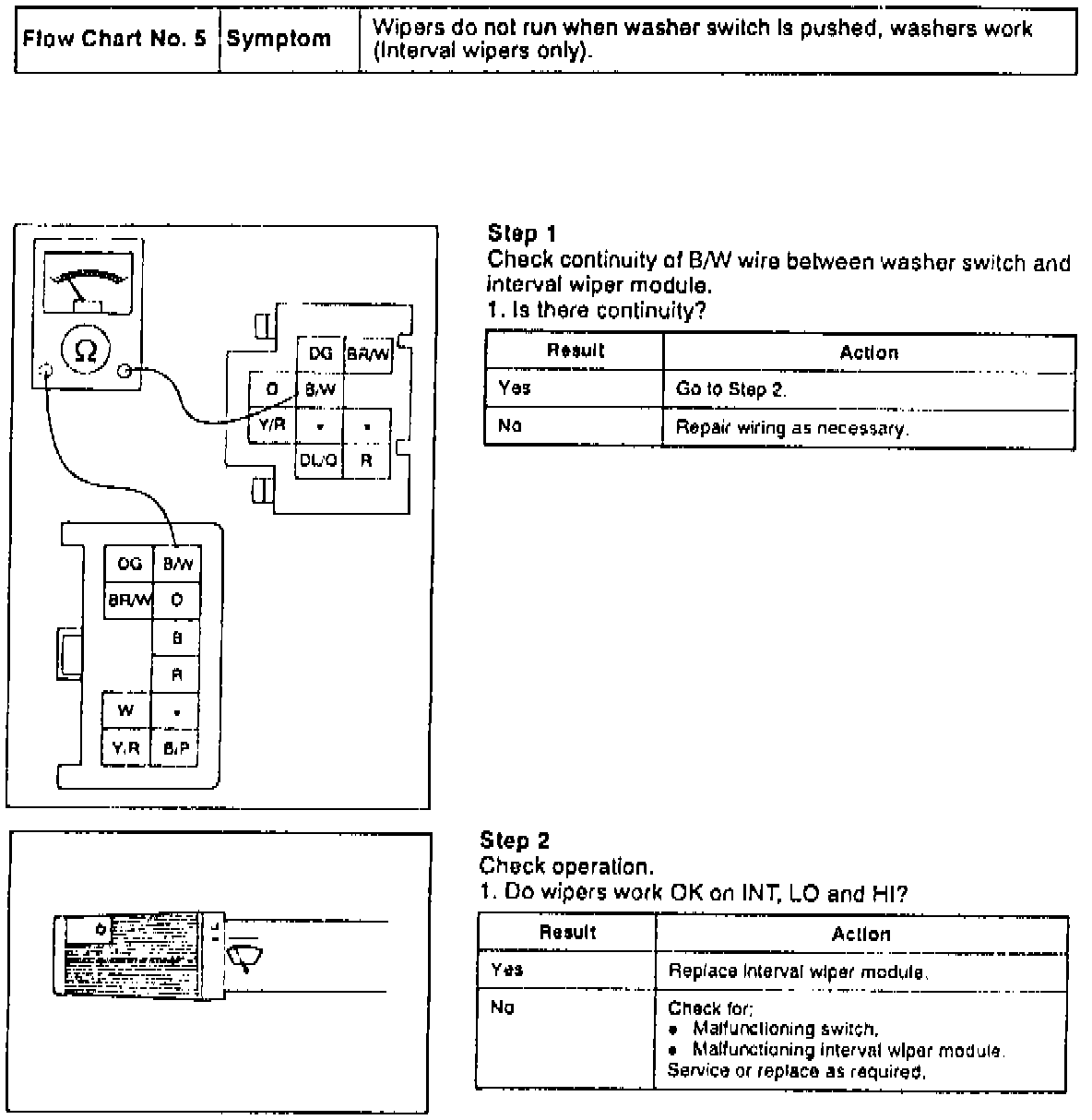

Fig. 33 Troubleshooting Flowchart No. 5:

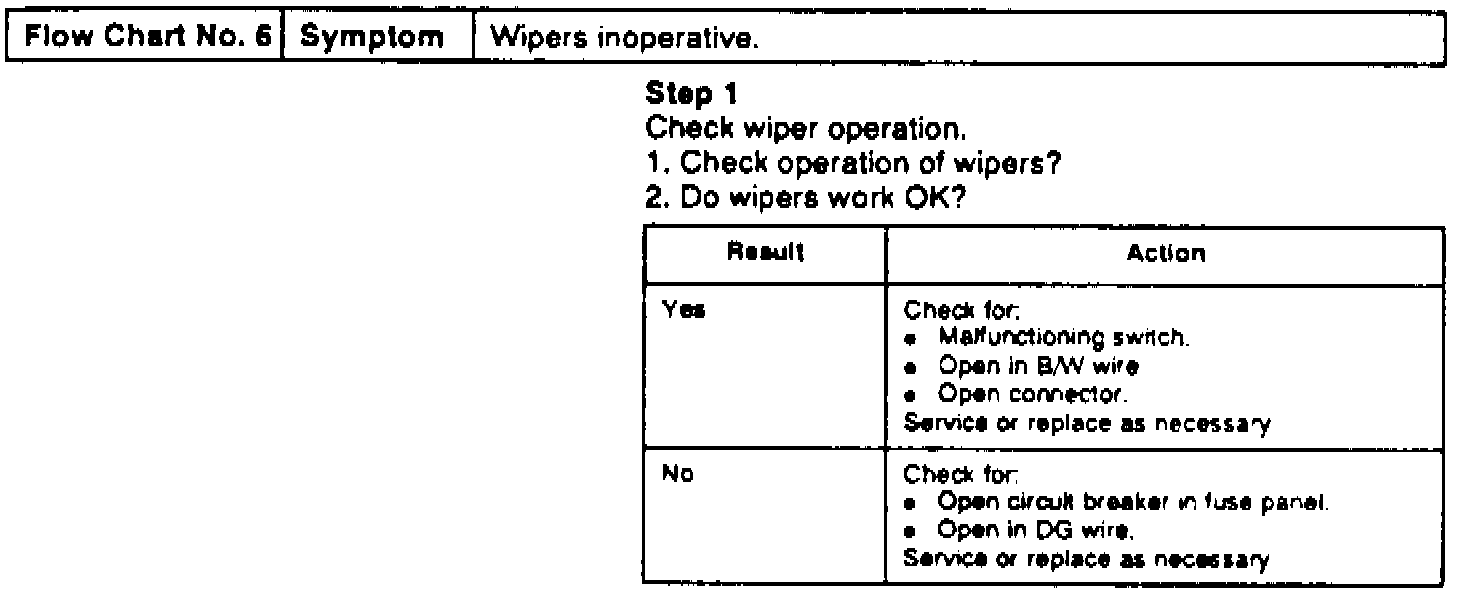

Fig. 32 Troubleshooting Flowchart No. 6:

Fig. 34 Troubleshooting Flowchart No. 7:

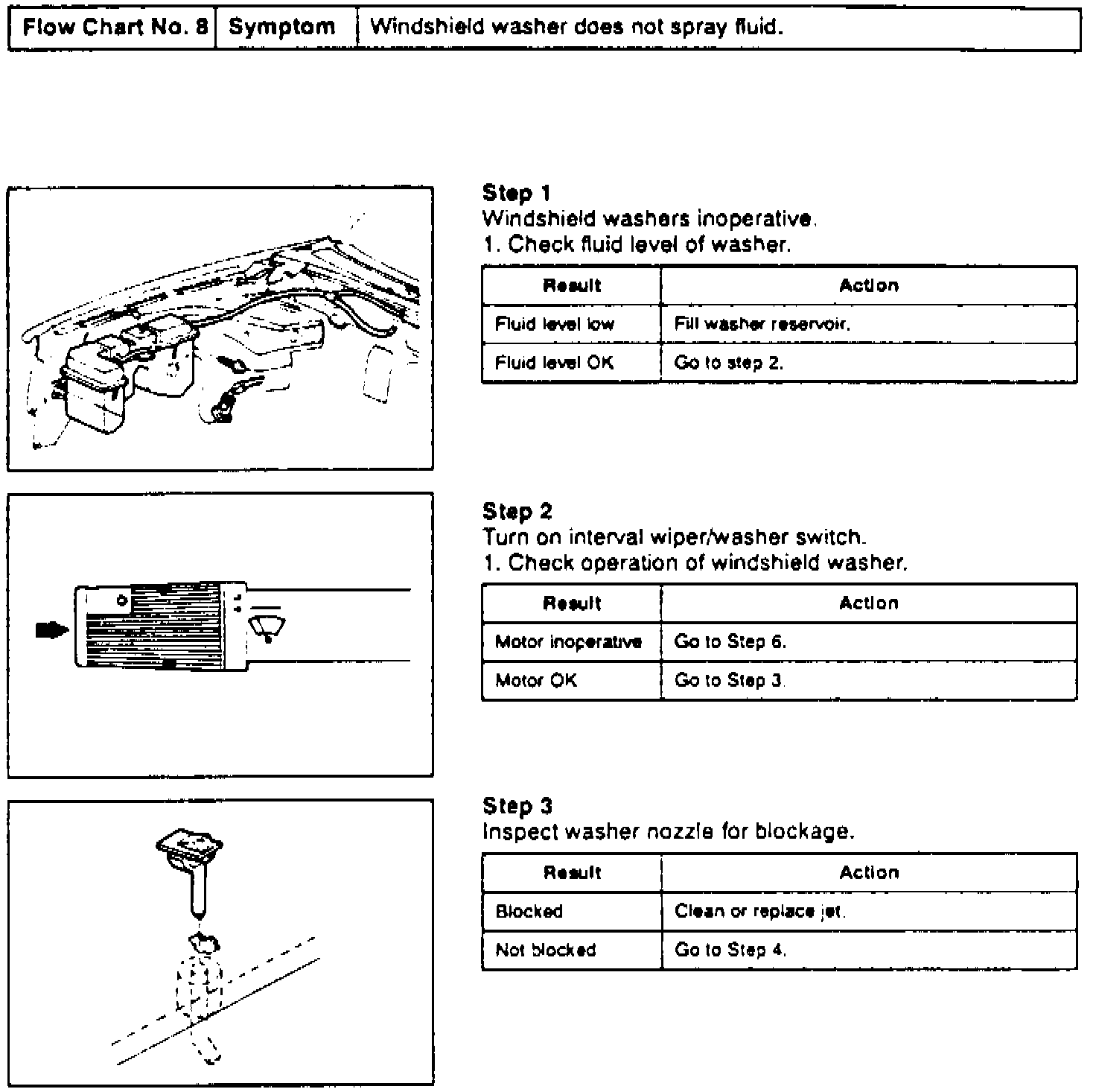

Fig. 35 Troubleshooting Flowchart No. 8 (part 1 Of 3):

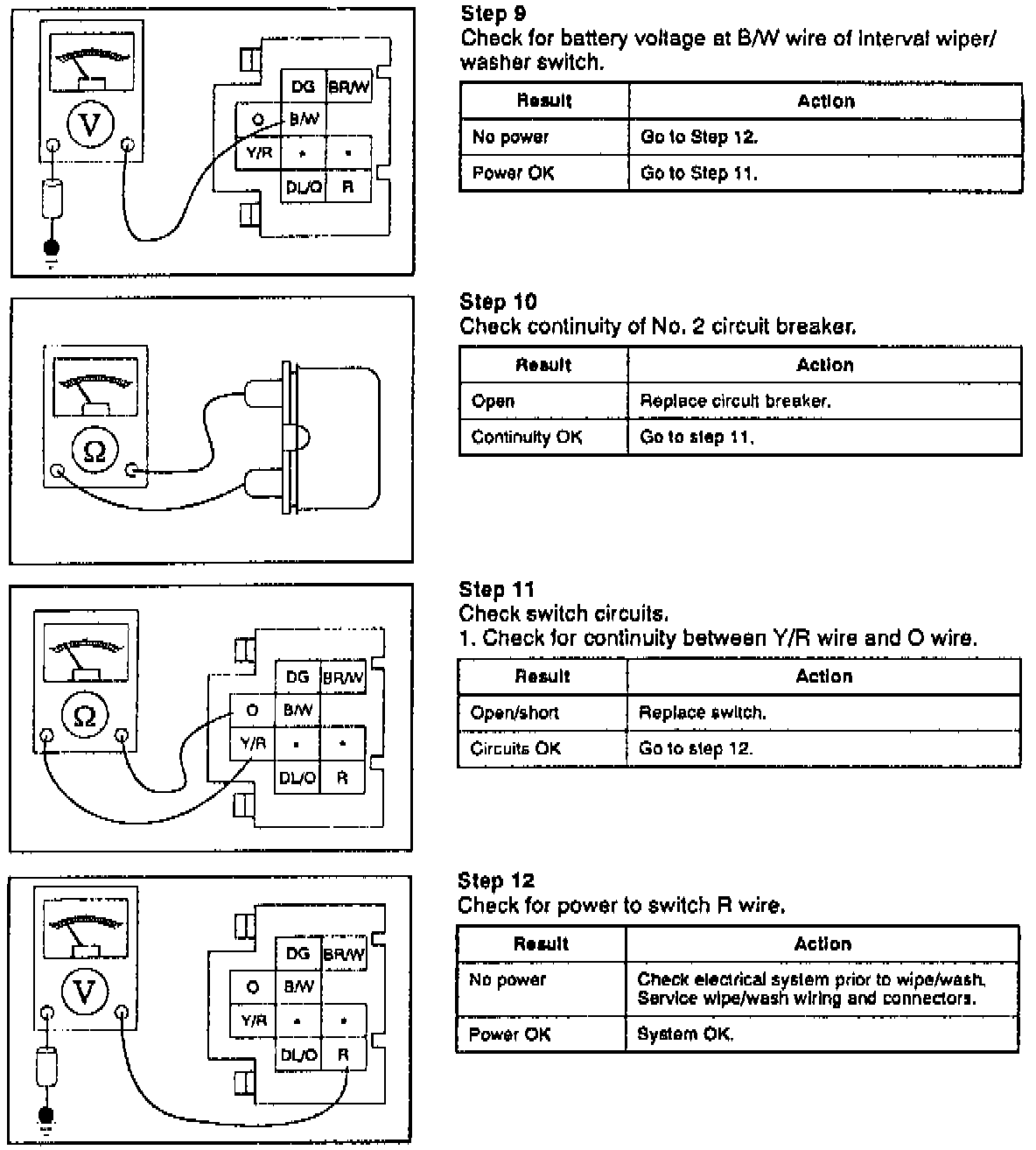

Fig. 35 Troubleshooting Flowchart No. 8 (part 2 Of 3):

Fig. 35 Troubleshooting Flowchart No. 8 (part 3 Of 3):
