Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1995 >> B2300 4WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, Transfer Case

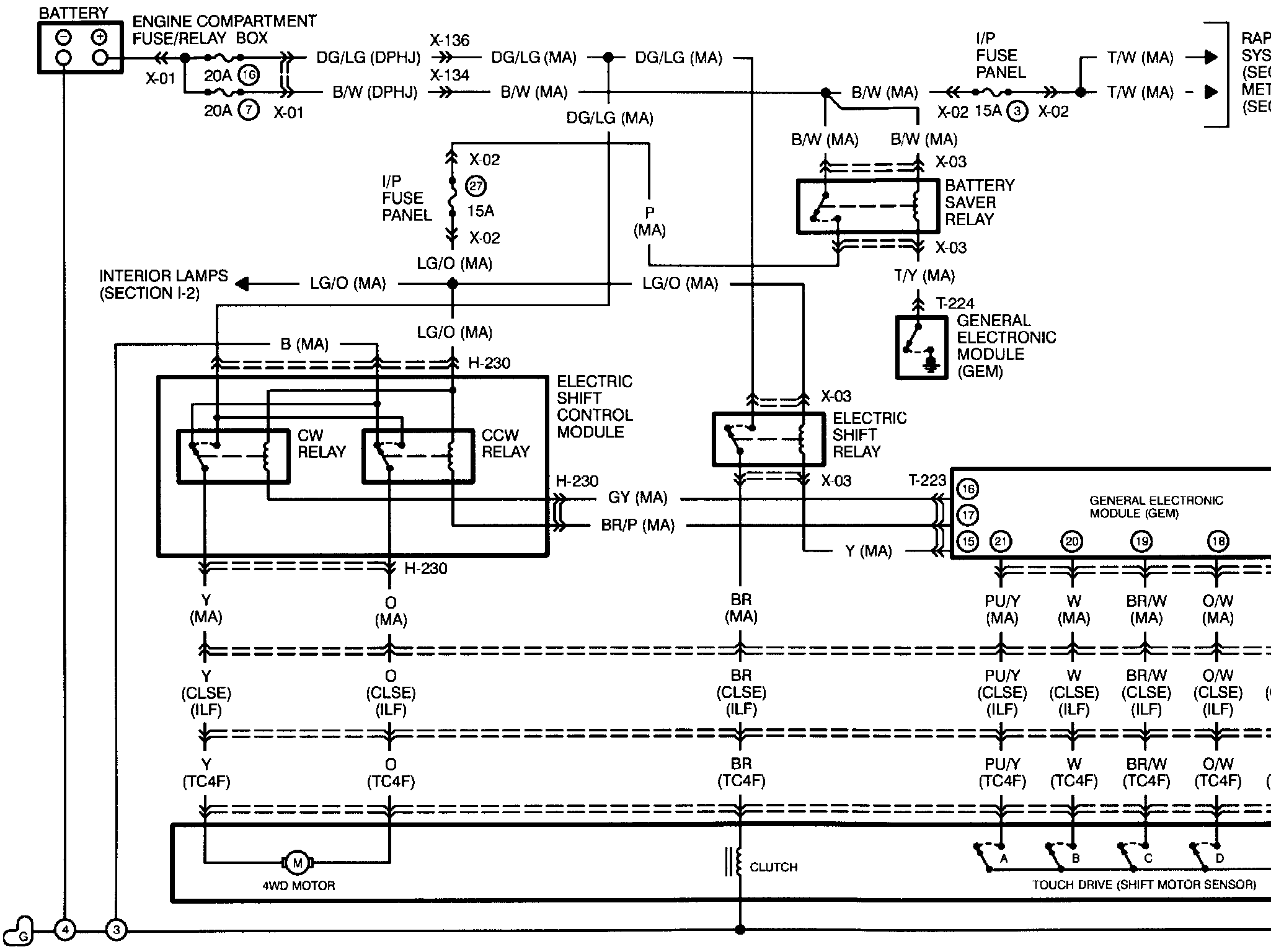

Control Module, Transfer Case

��B!Electronic Shift Control:
