Component Locations

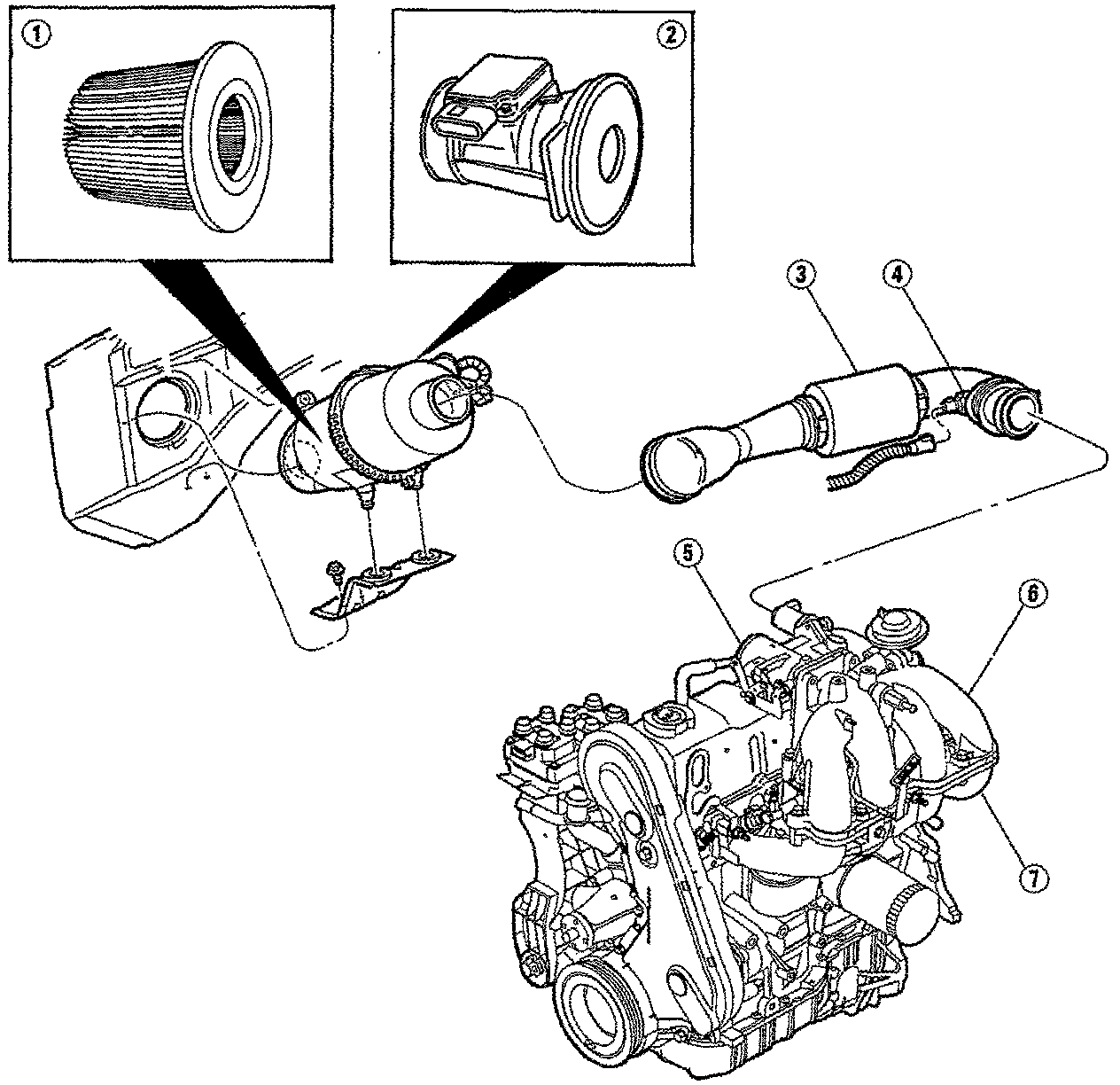

Intake System
1. Air cleaner element
2. Mass air flow sensor
3. Air intake hose
4. Intake air temperature sensor
5. Throttle body
6. Upper intake manifold
7. Intake manifold

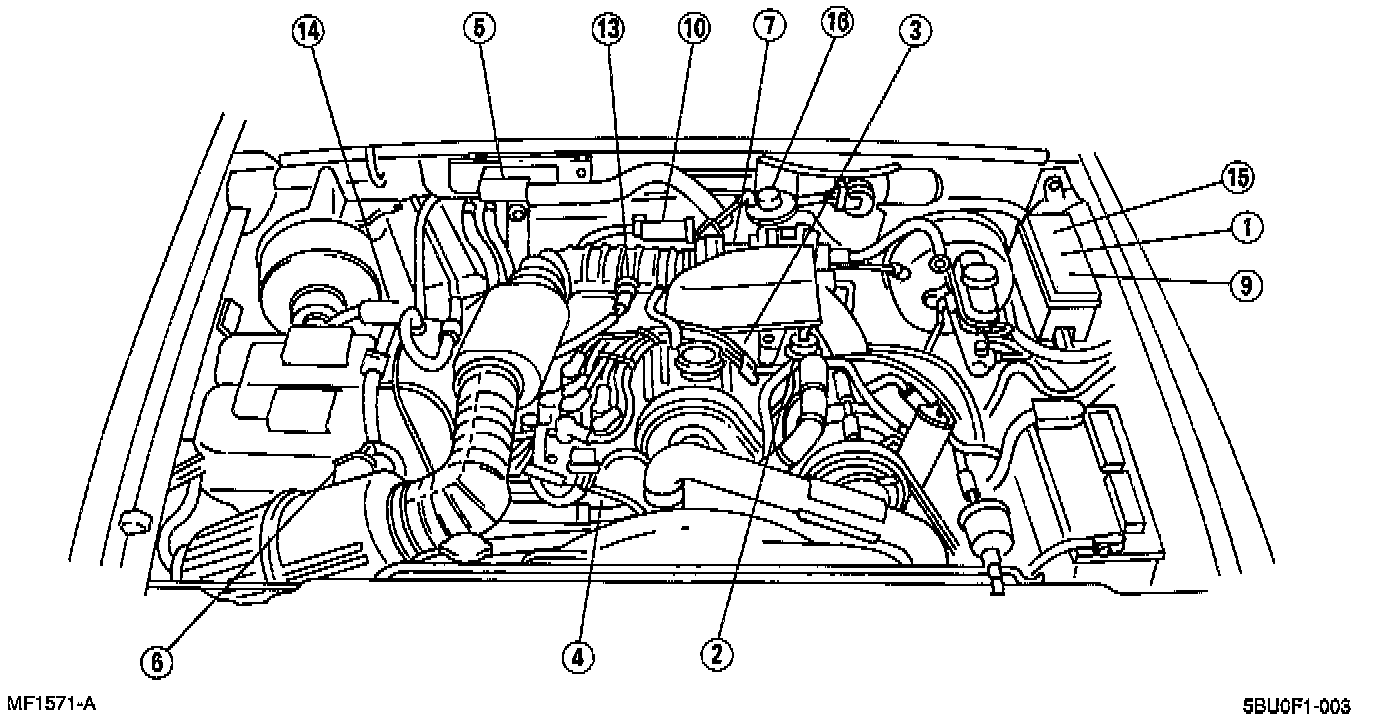

Control System
1. Fuel pump relay
2. Pressure regulator
3. Injector
4. Engine coolant temperature sensor
5. Powertrain control module (PCM)
6. Mass air flow sensor
7. Throttle position sensor
9. PCM power relay
10. Idle air control solenoid
13. Intake air temperature sensor
14. NC pressure switch Refer to 1995 B-series BETM
15. Wide open throttle A/C cutoff relay
16. EGR valve

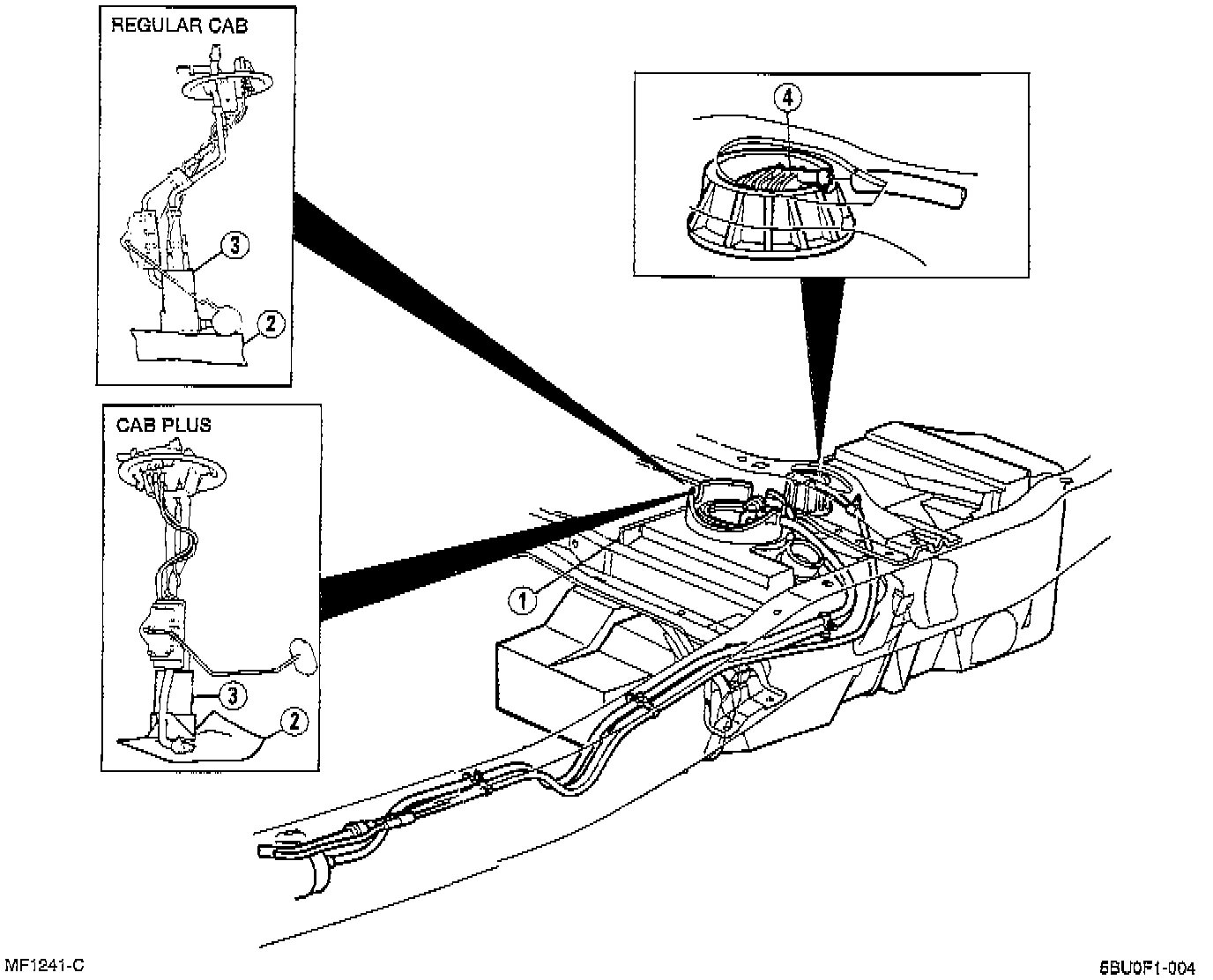

Fuel System
1. Fuel tank
2. Fuel filter (low-pressure side)
3. Fuel pump
4. Fuel vapor valve

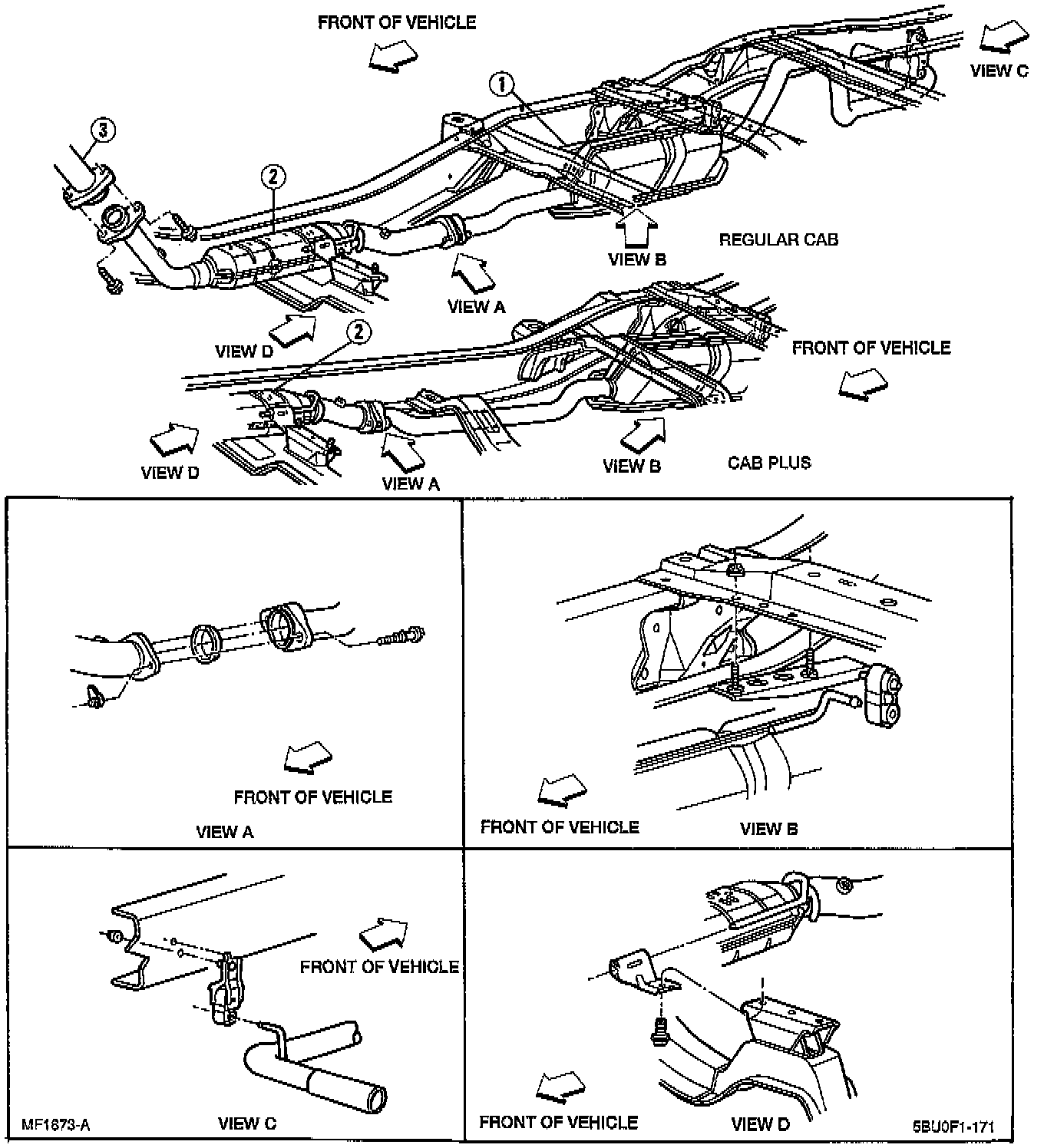

Exhaust System
1. Silencer
2. Three way catalytic converter
3. Exhaust manifold
