Home >> Mazda >> 1995 >> B3000 2WD V6-3.0L OHV >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations >> B-4

B-4

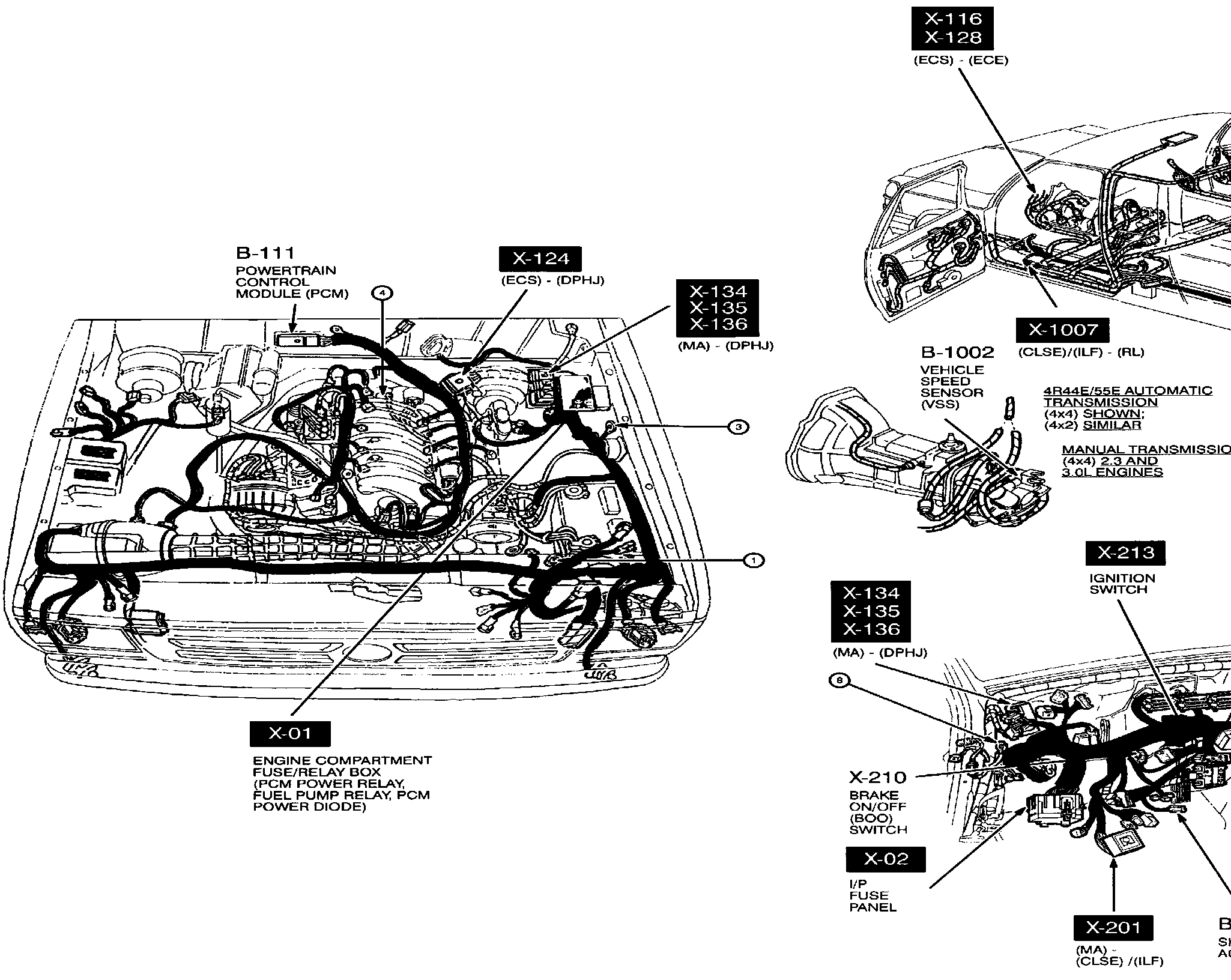

�q�=Connector Locations:
