B3000 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
>>
B-4A
B-4A

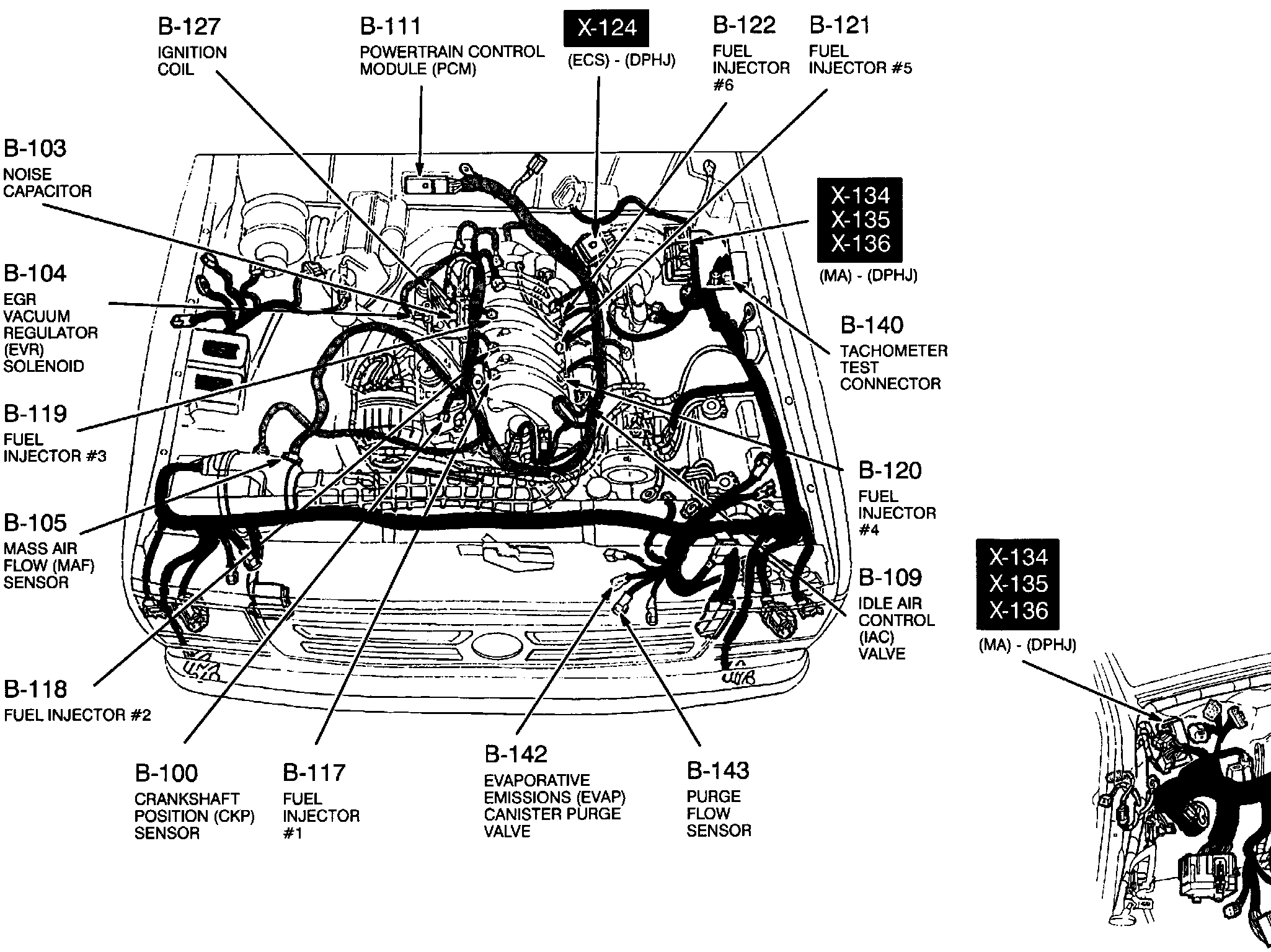

tE�=Connector Locations:
