Engine Control Module

Note: All values shown may vary ± 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.

NOTE: Must print both images from each terminal set to view complete chart.

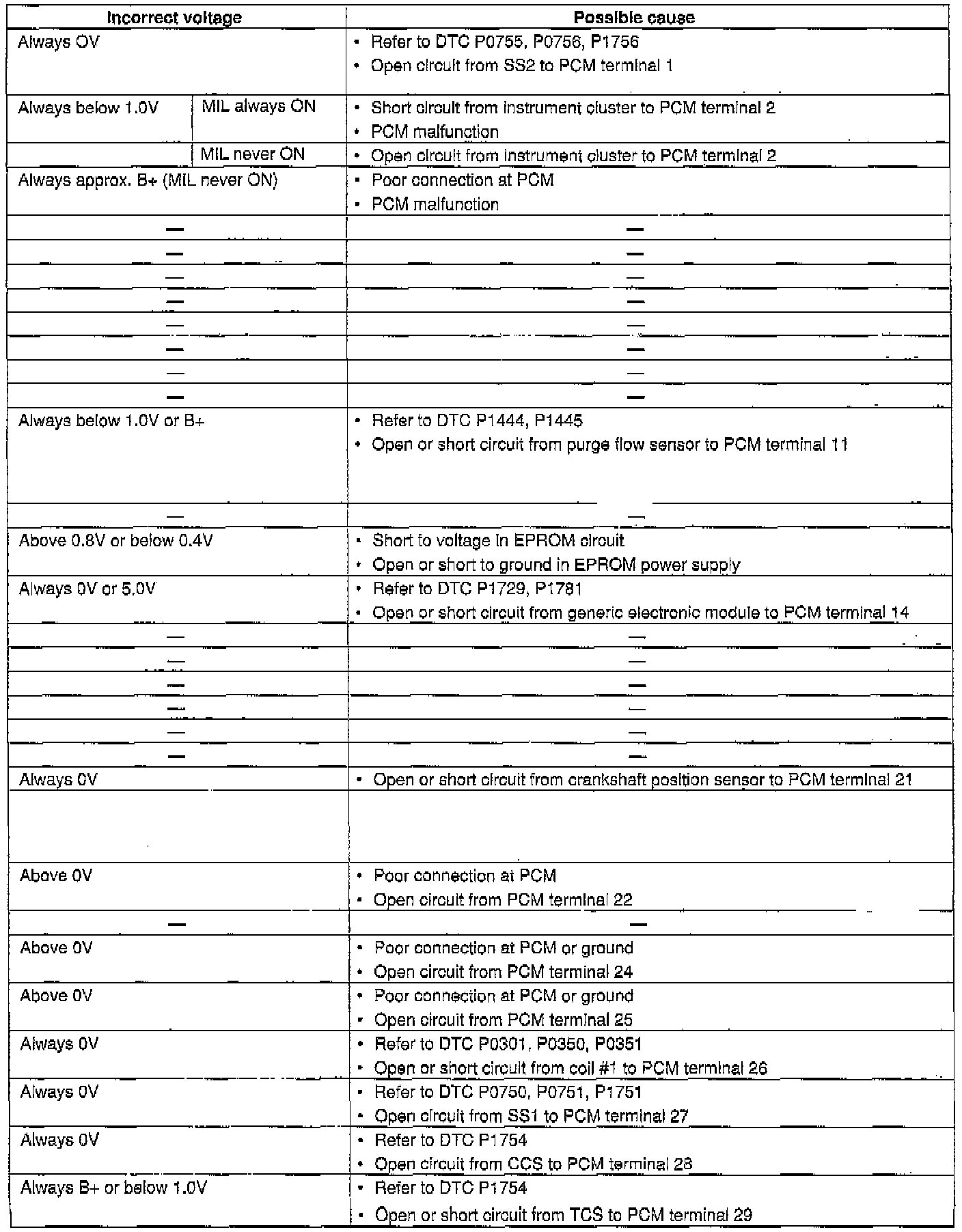

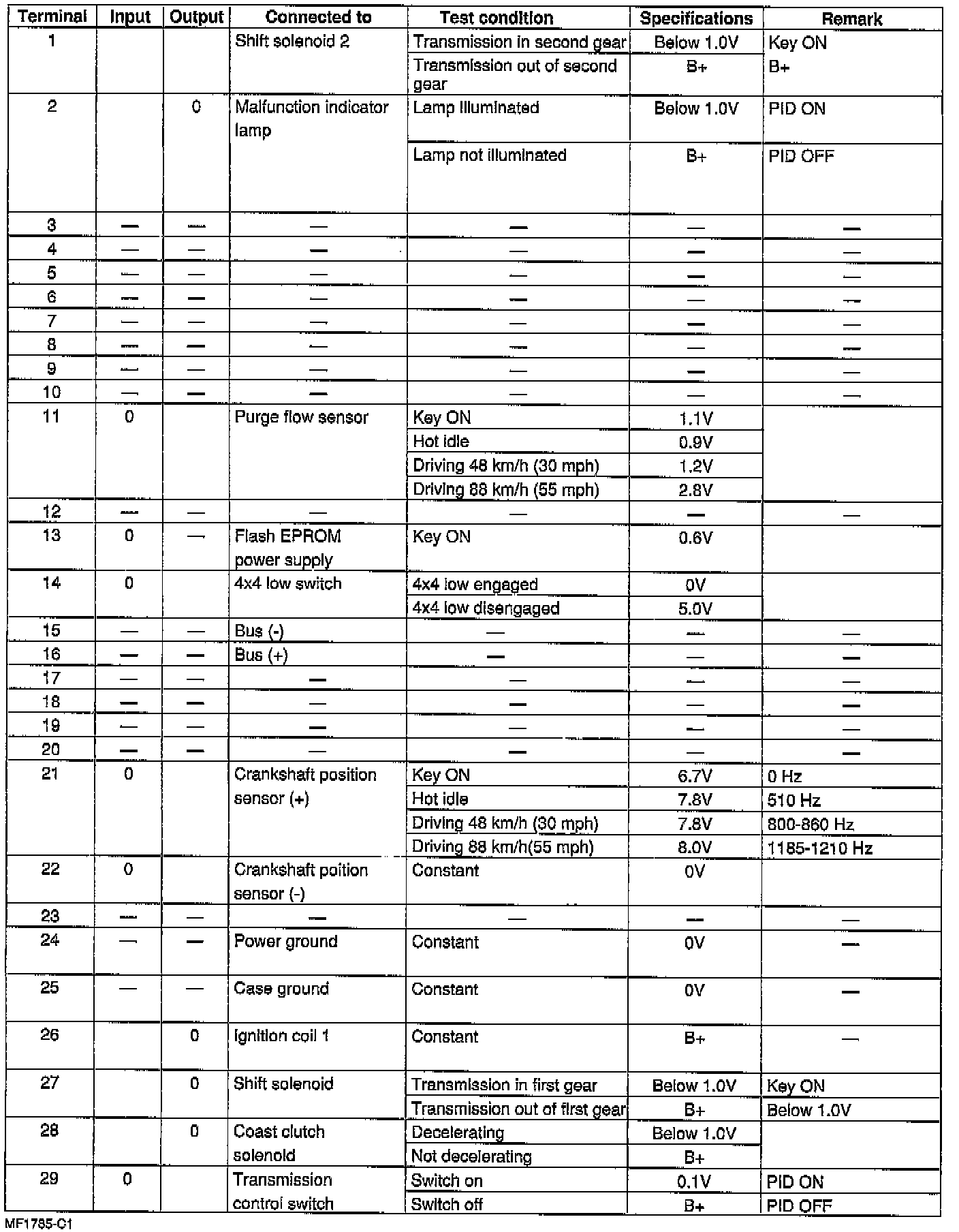

TERMINALS 1 THROUGH 29

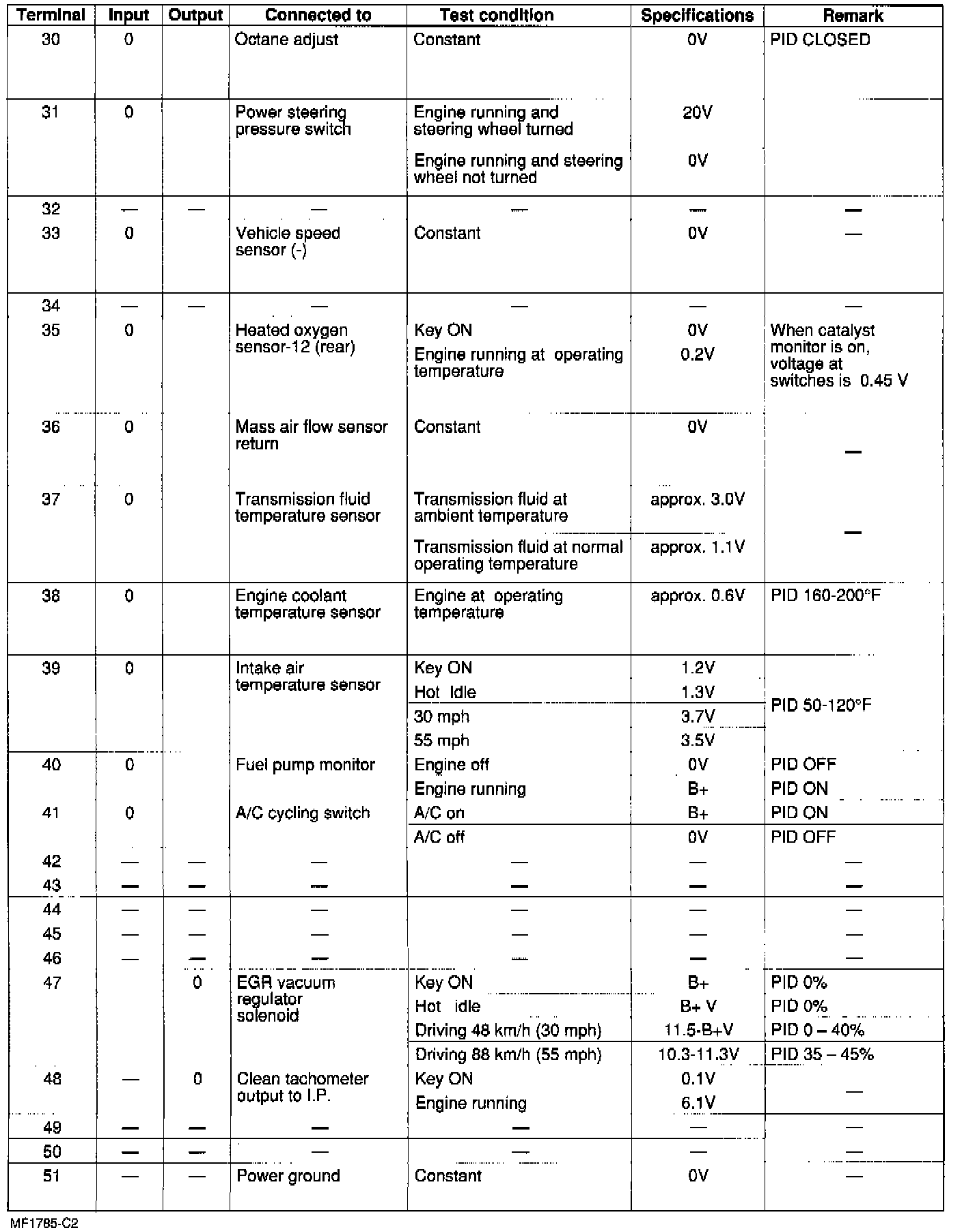

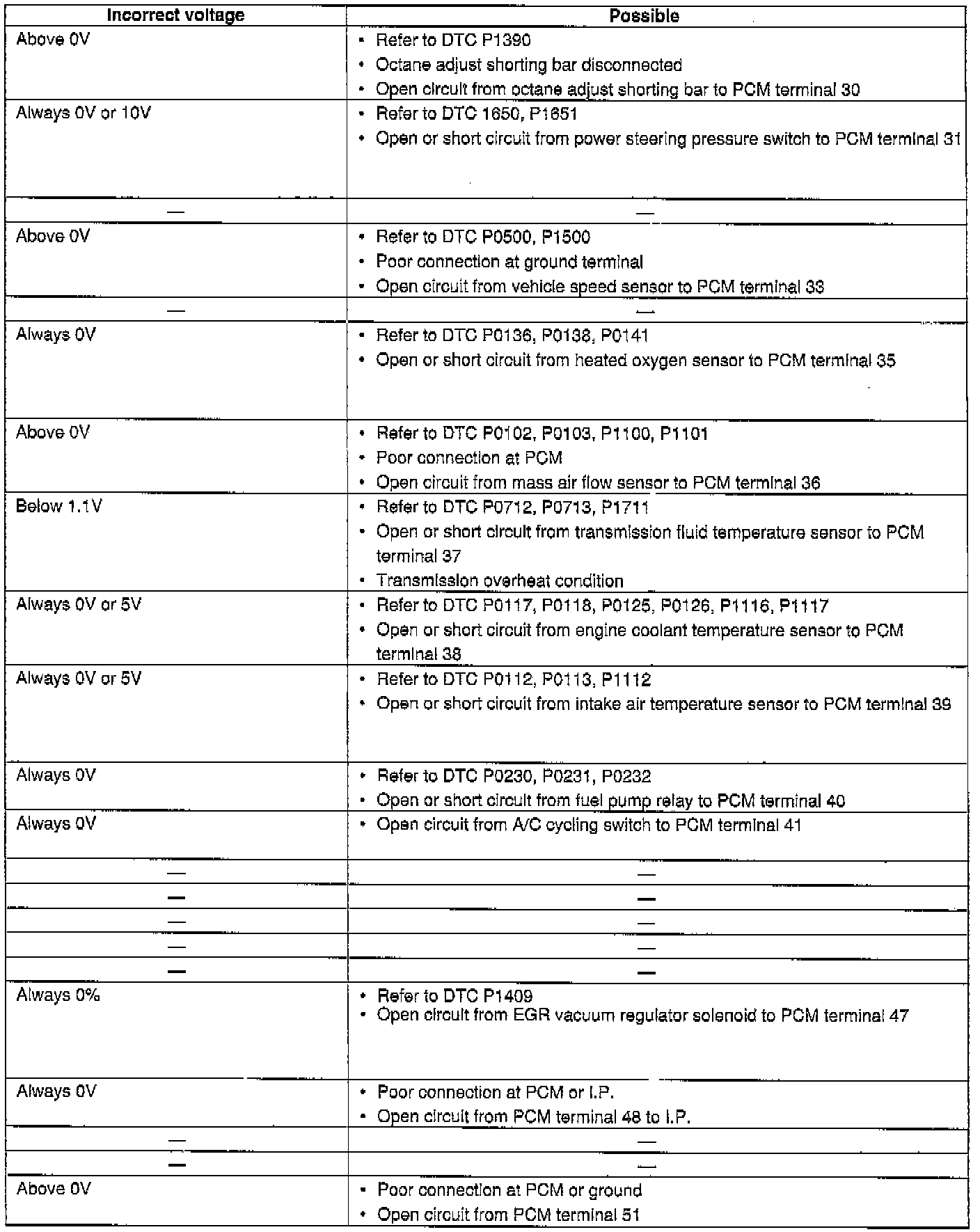

TERMINALS 30 THROUGH 51

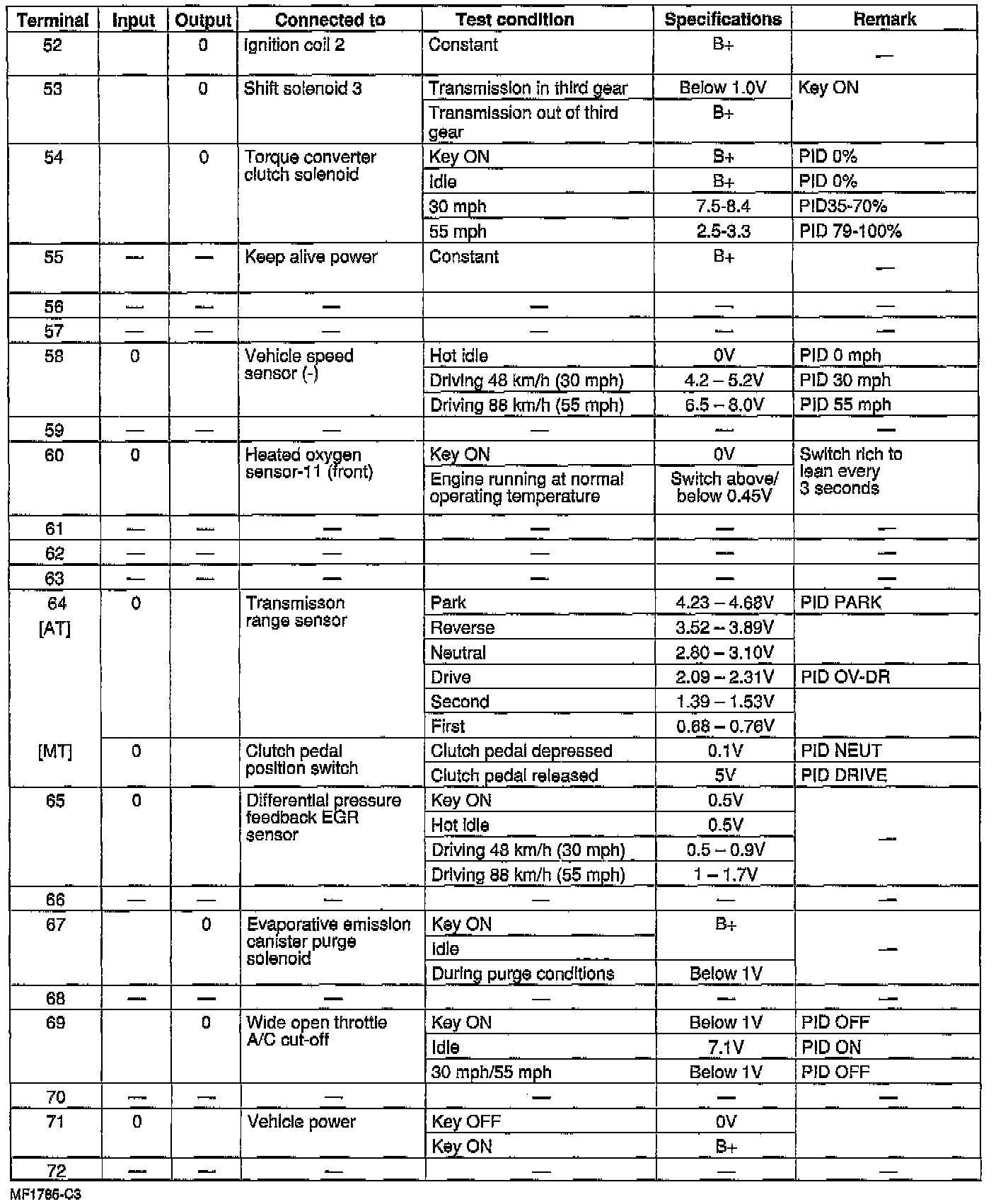

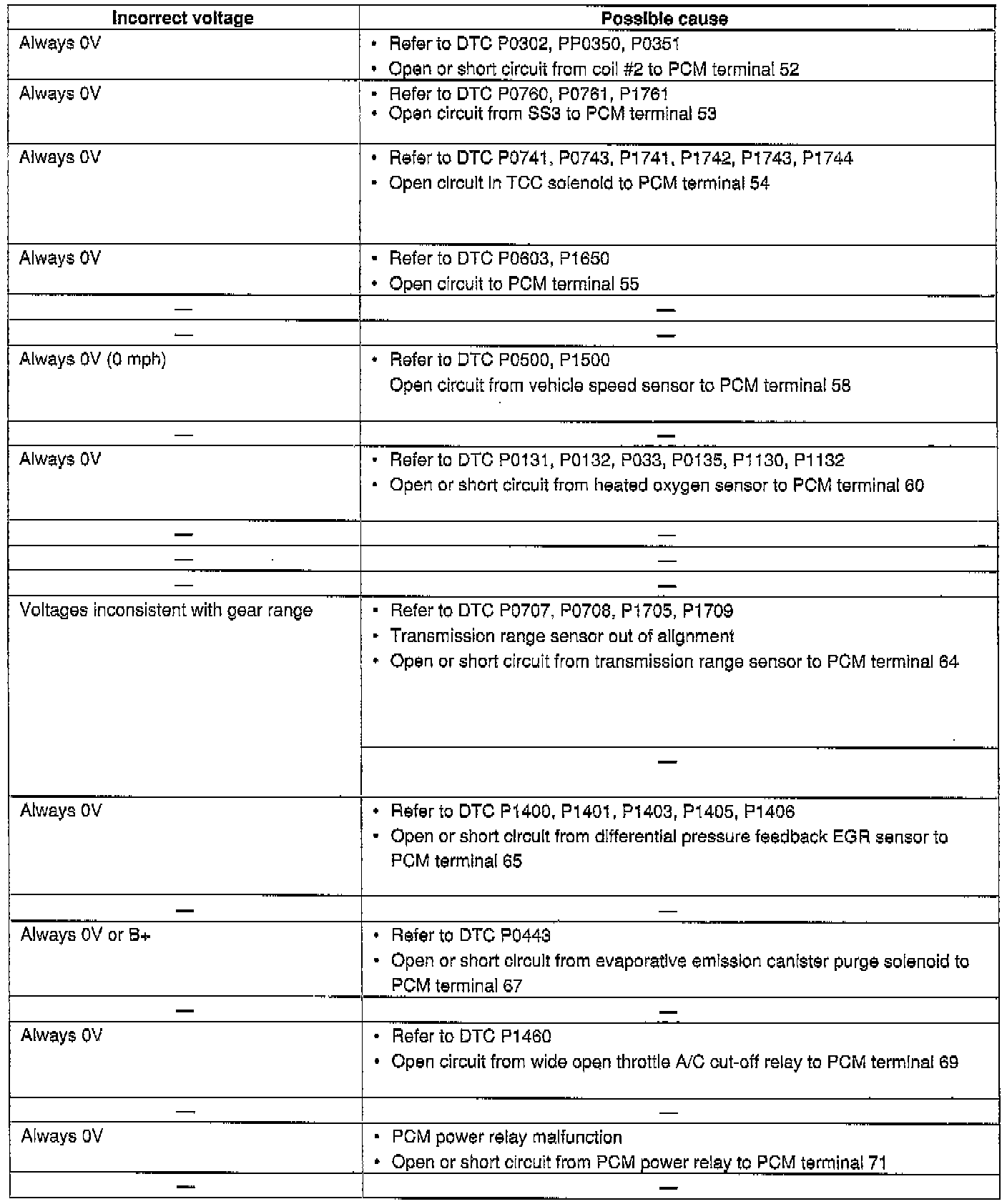

TERMINALS 52 THROUGH 72

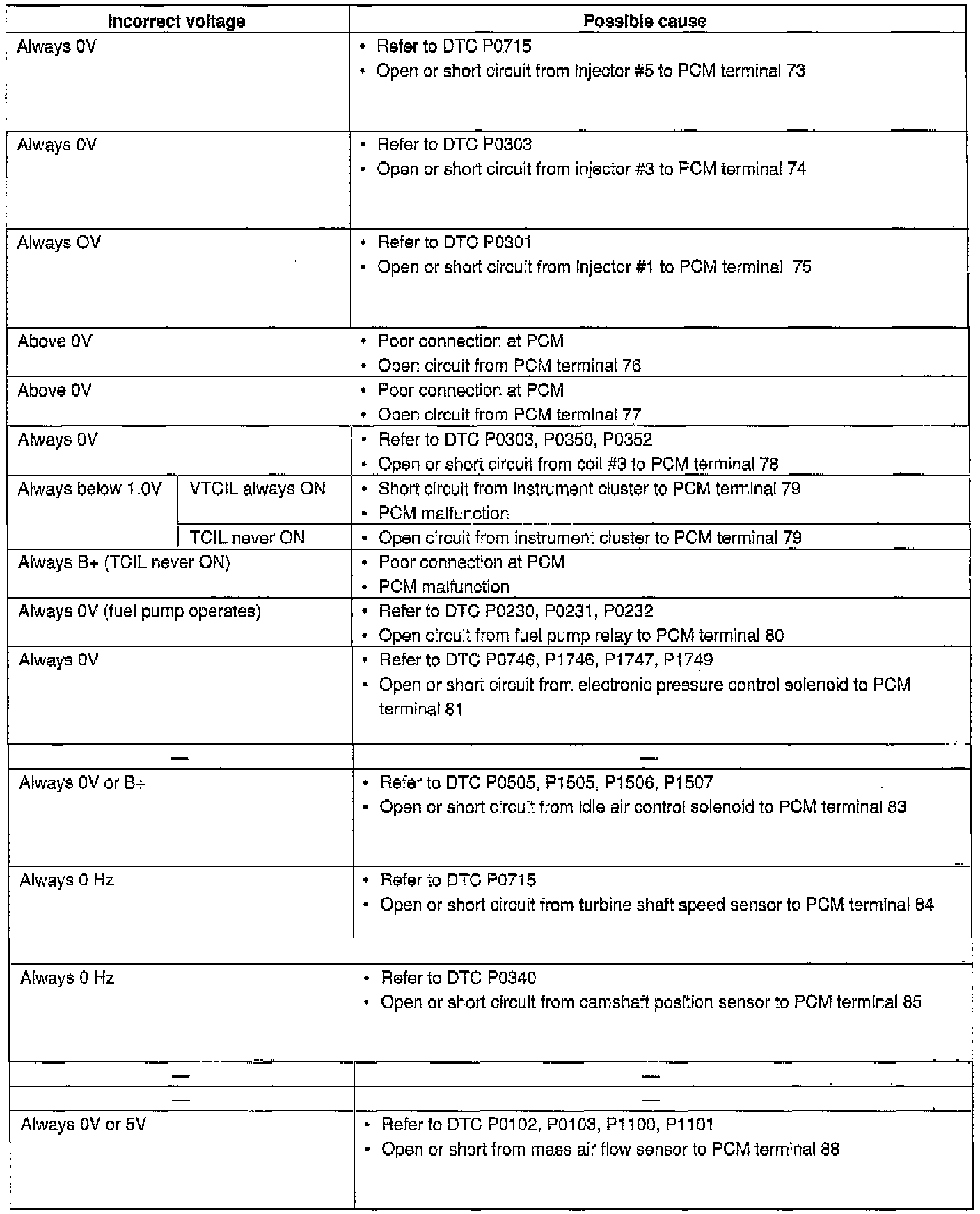

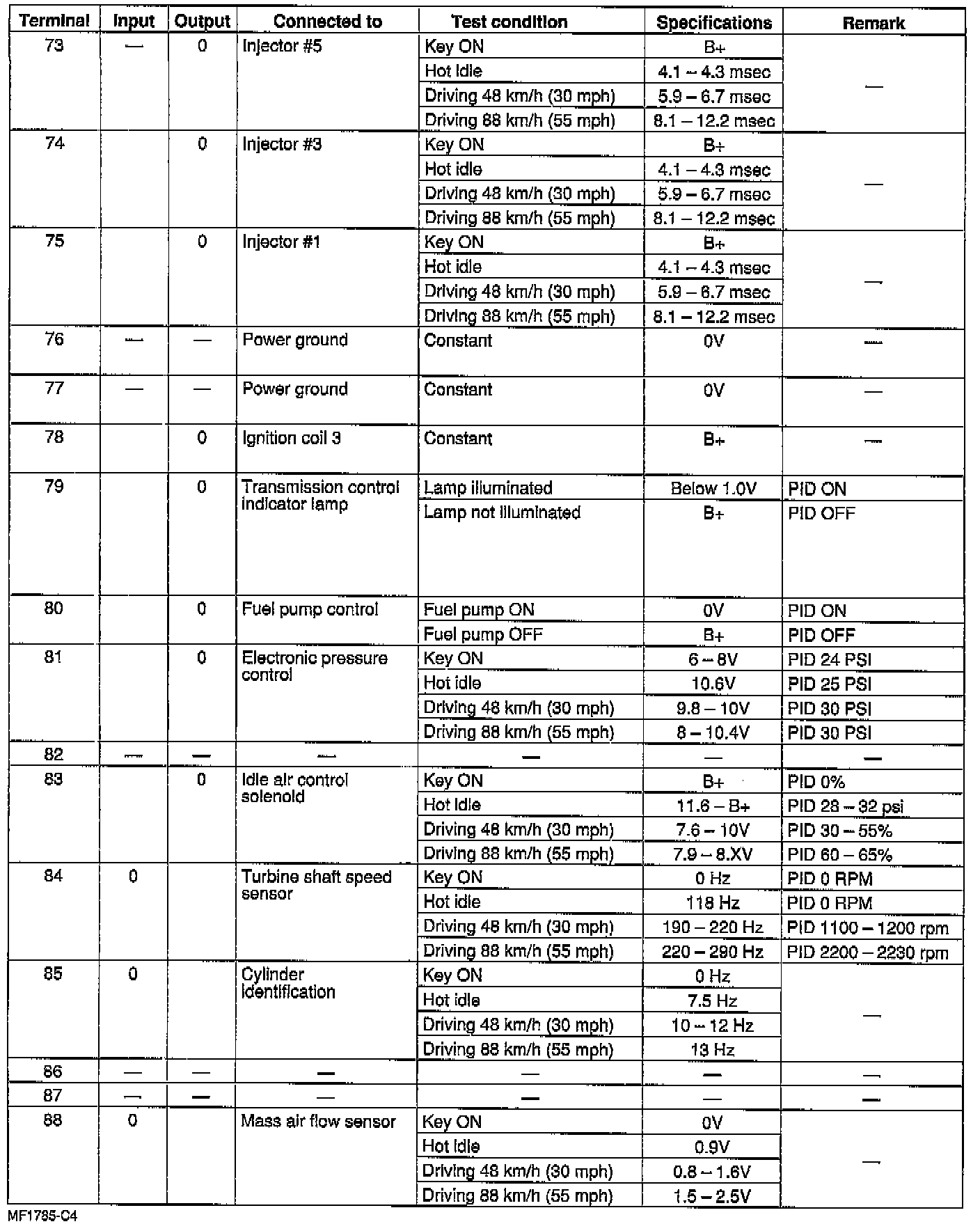

TERMINALS 73 THROUGH 88

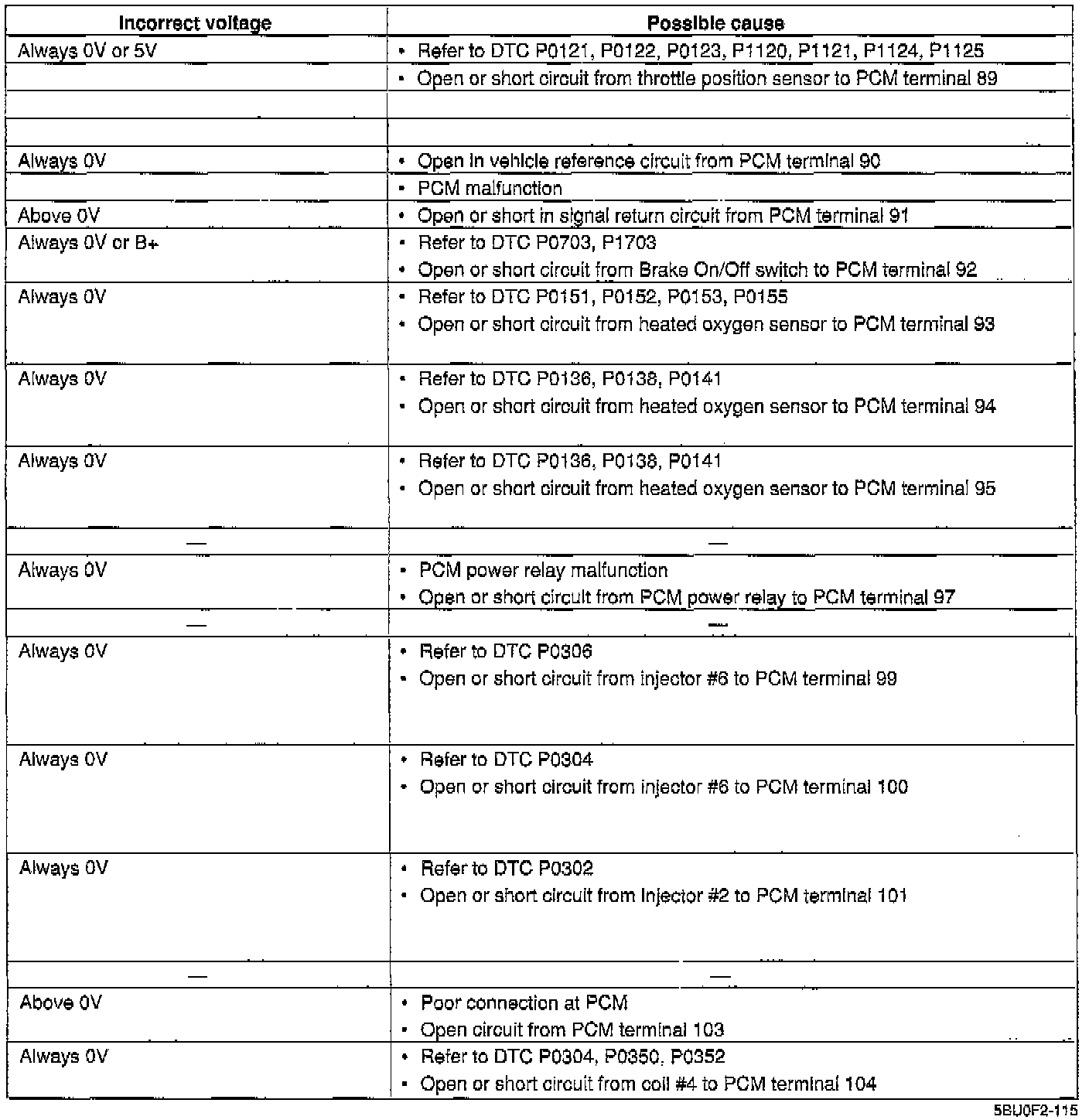

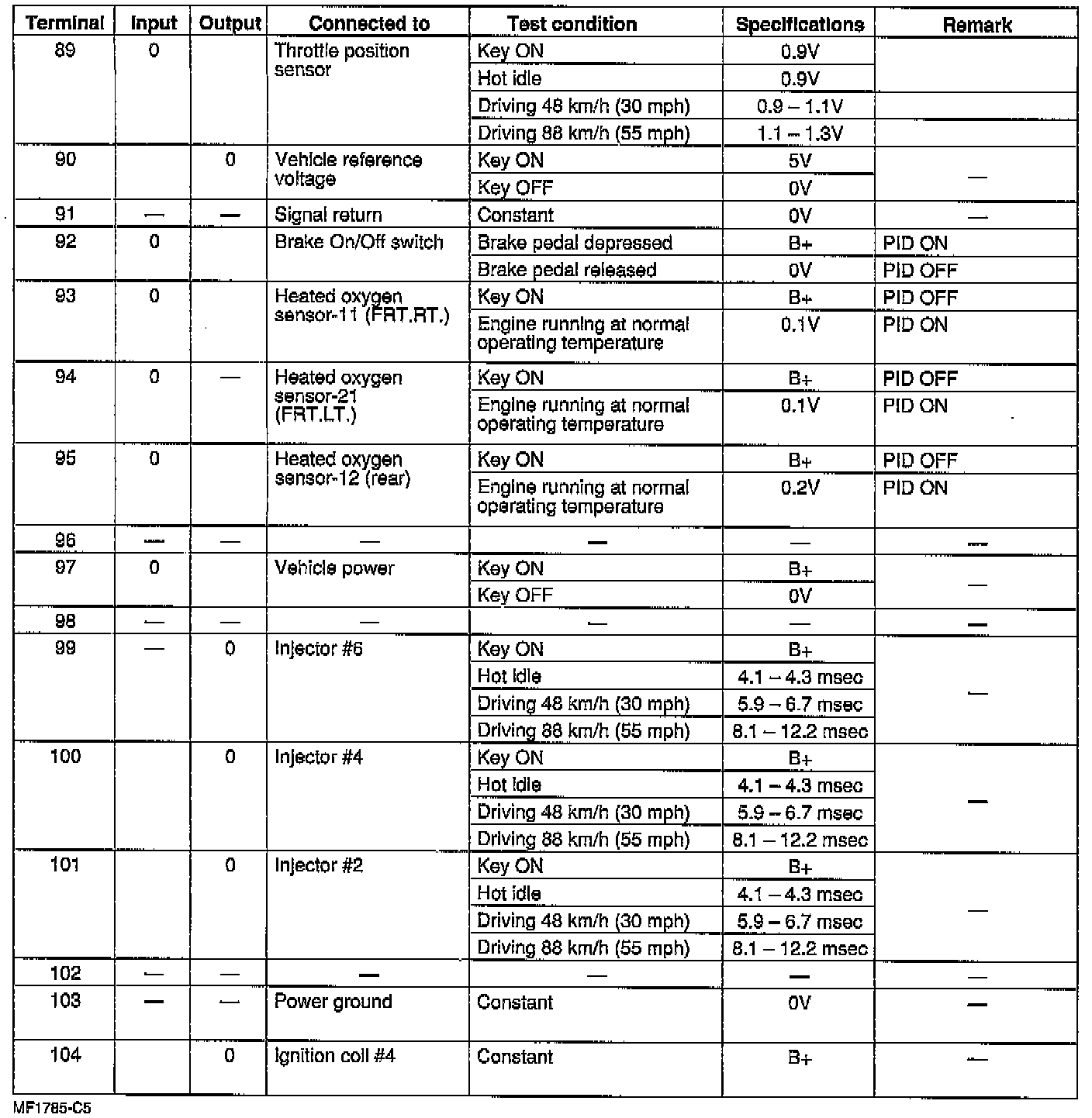

TERMINALS 89 THROUGH 104

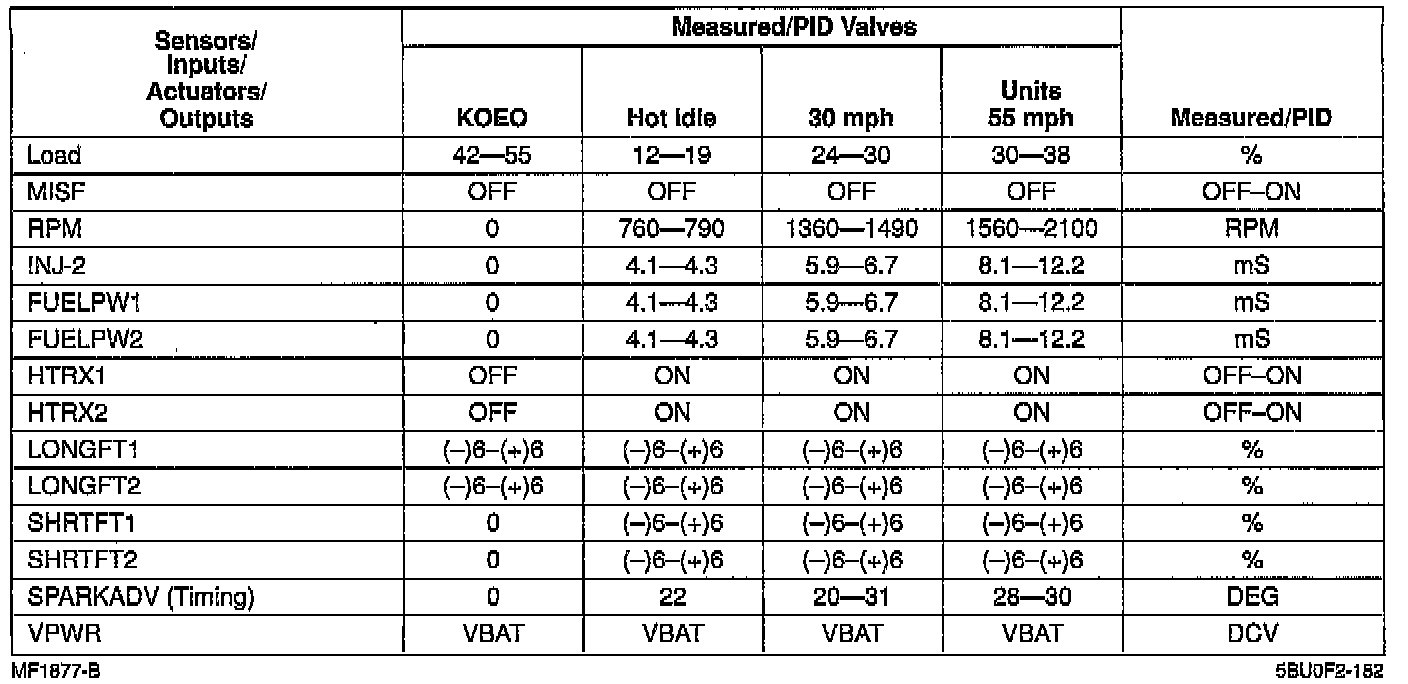

PID DATA MONITOR
