Component Locations

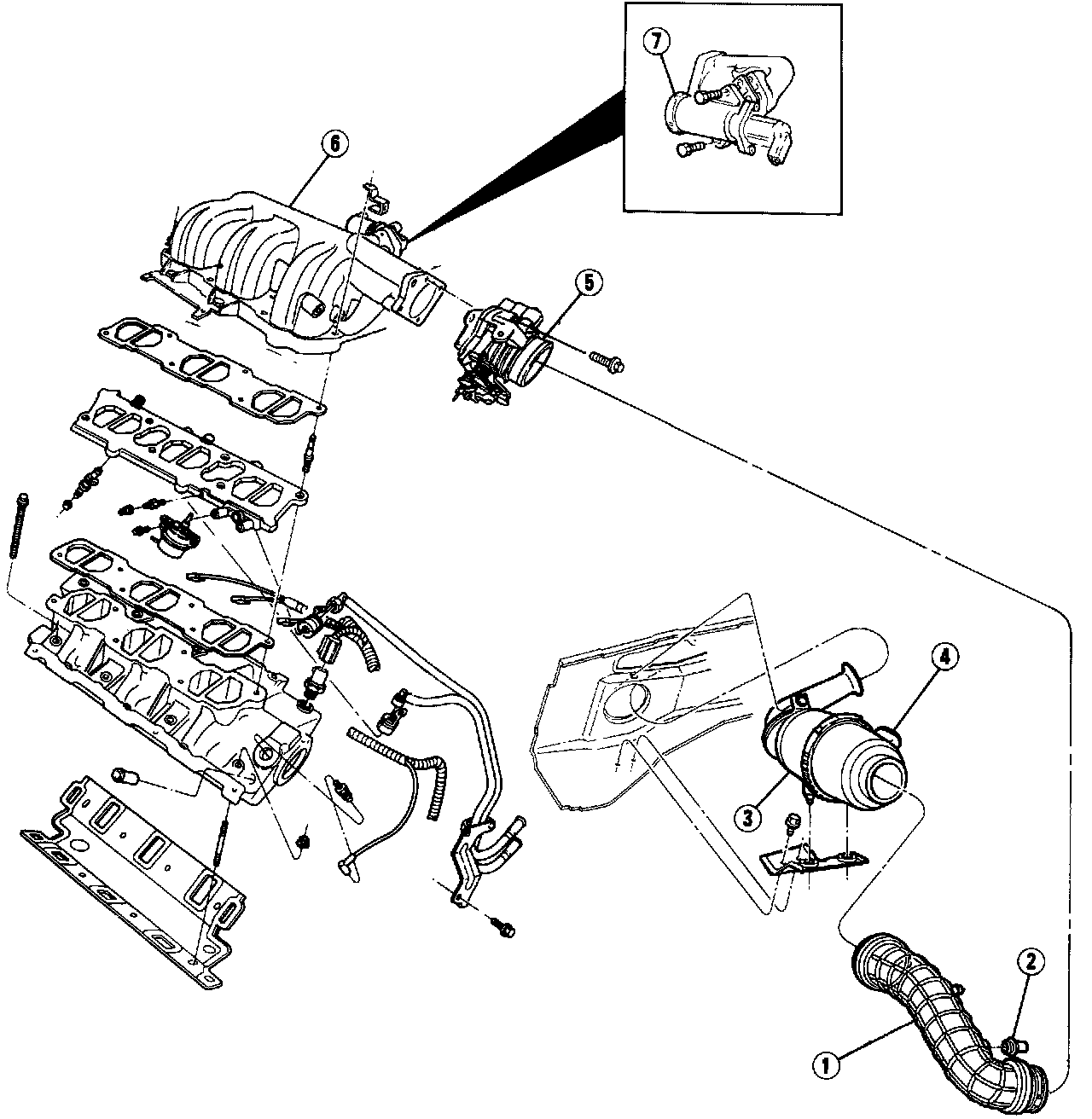

1. Air intake hose
2. Intake air temperature (IAT) sensor
3. Air cleaner housing
4. Mass air flow sensor
5. Throttle body
6. Upper intake manifold
7. Idle air control (IAC) solenoid
8. Intake manifold






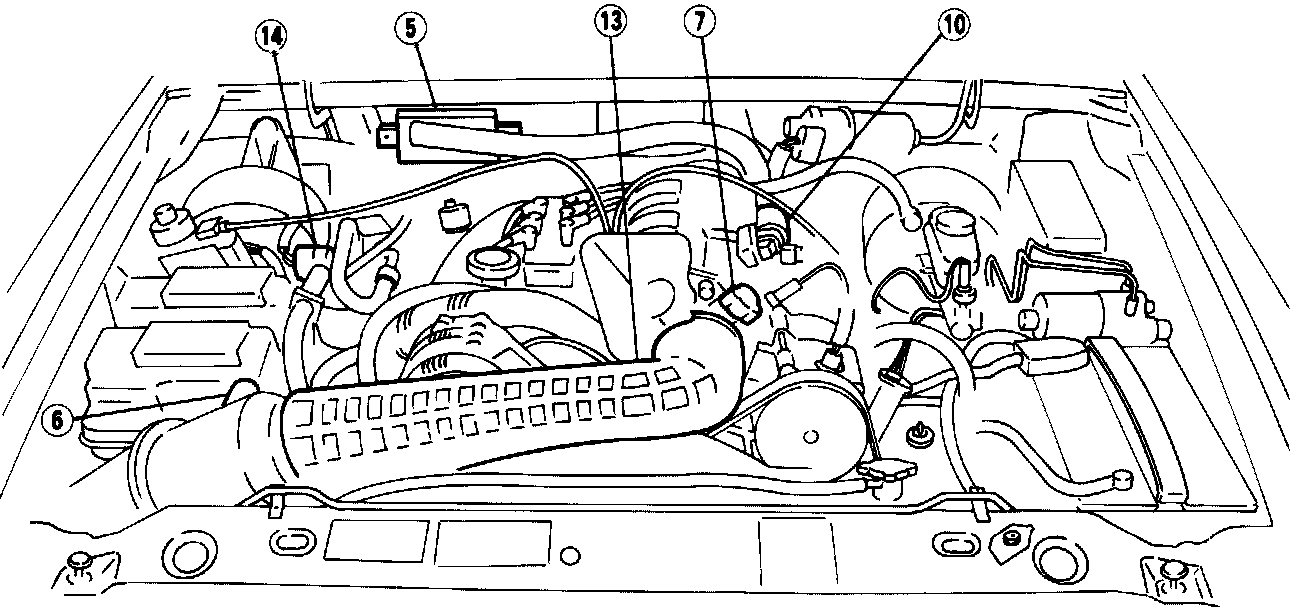

1. Fuel pump relay
2. Pressure regulator
3. Injector
4. Engine coolant temperature sensor
5. Powertrain control module (PCM)
6. Mass air flow sensor
7. Throttle position sensor
8. Camshaft position sensor
9. PCM power relay
