Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>

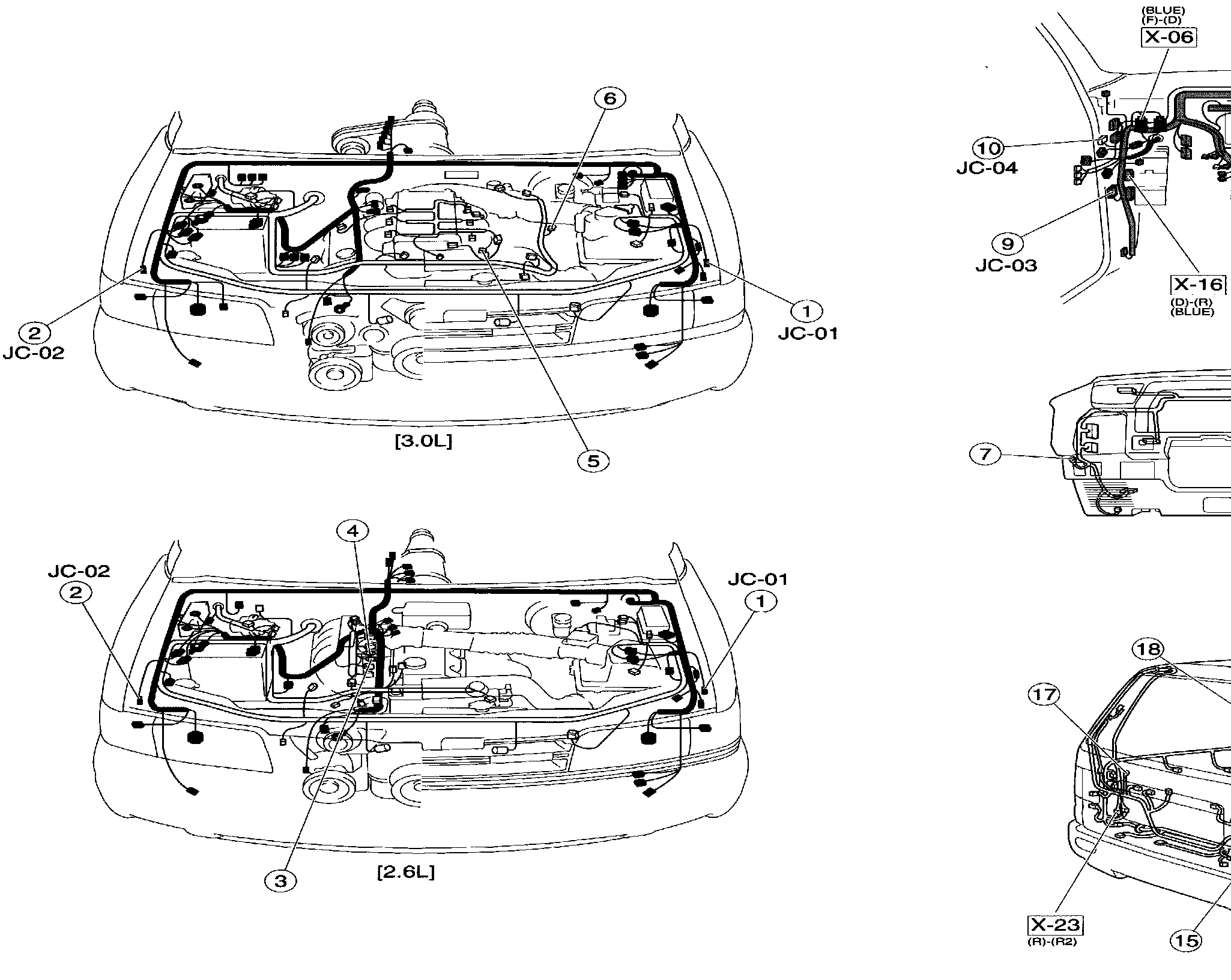

Connector Locations
Connector Locations
8p�]Connector Locations:
