MIL/TCIL Always ON
MIL/TCIL Always ON
Diagnostic Chart

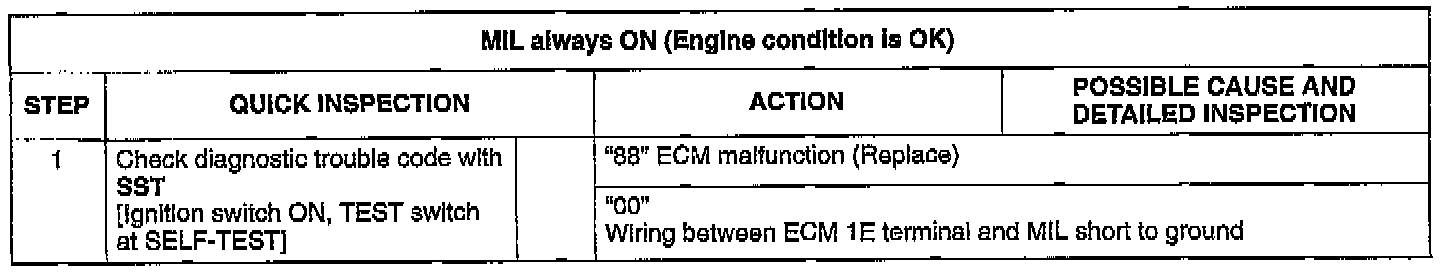

Diagnostic Chart:

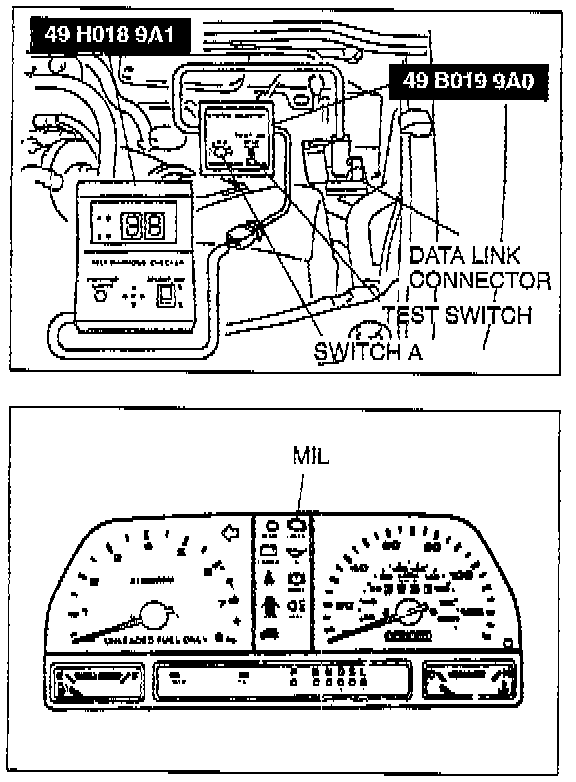

Test Step Visual Aids
Step 1:
