Control System Component Overview
Control System Component Overview

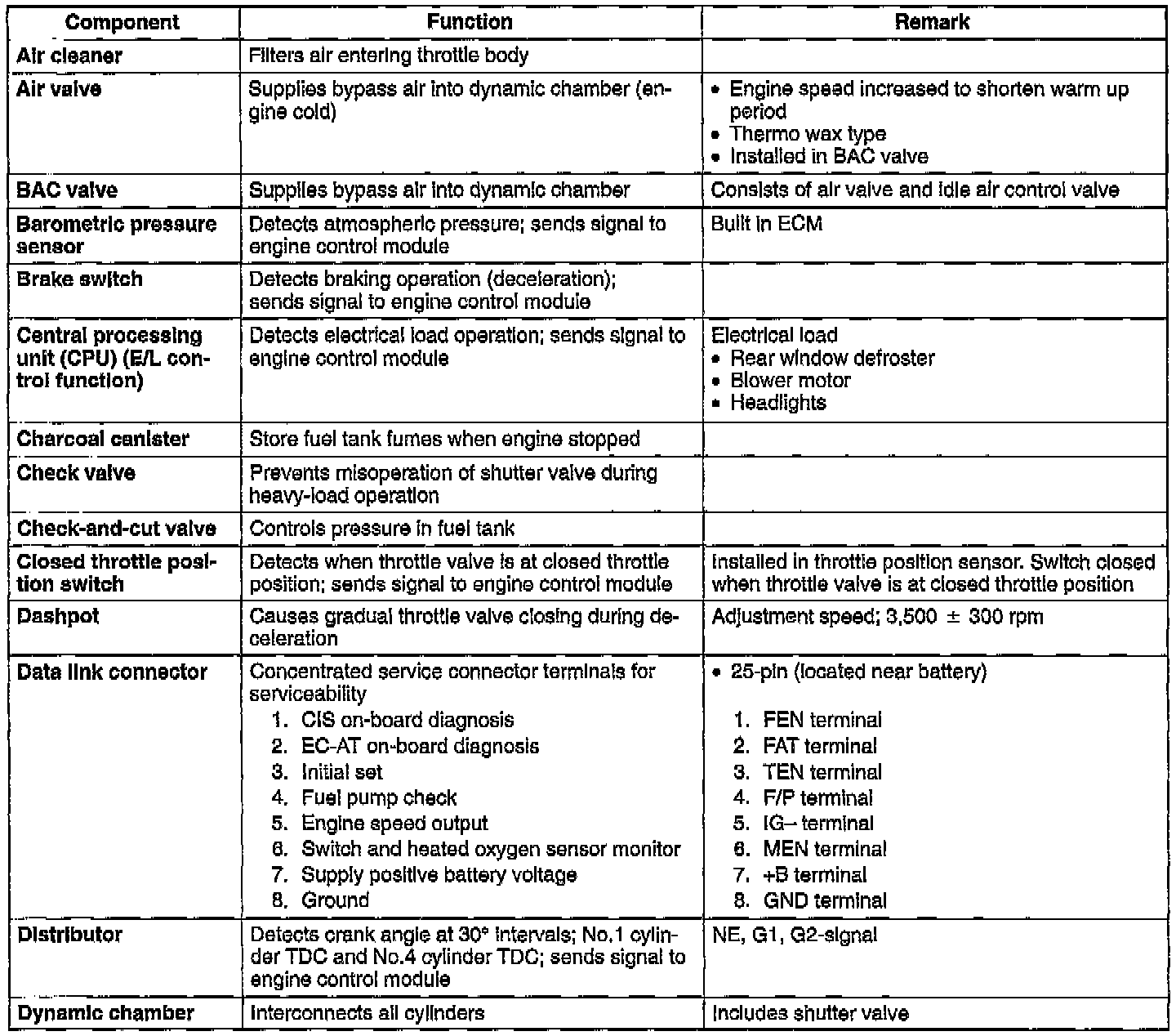

Air Cleaner Through Dynamic Chamber:

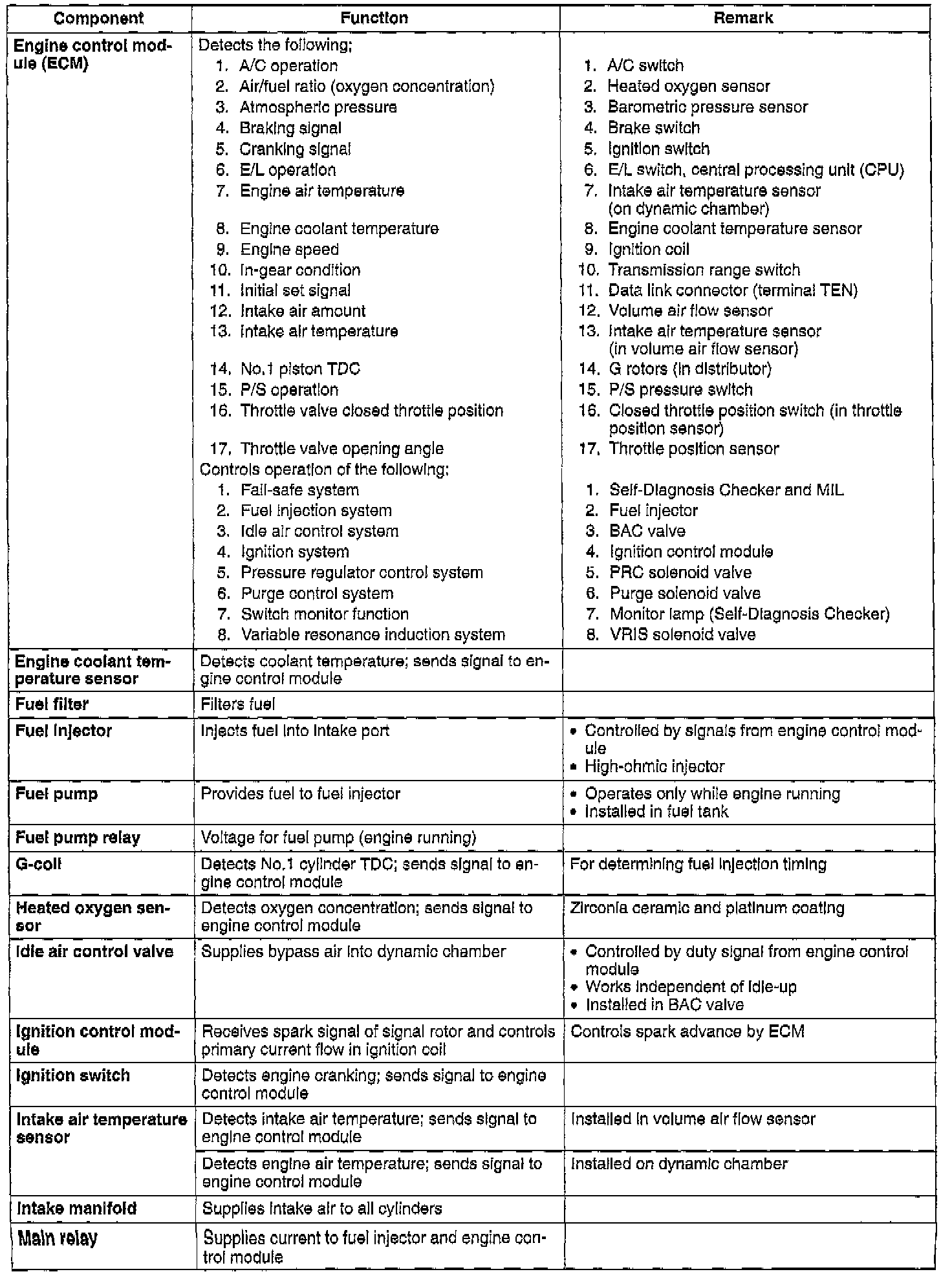

ECM Through Main Relay:

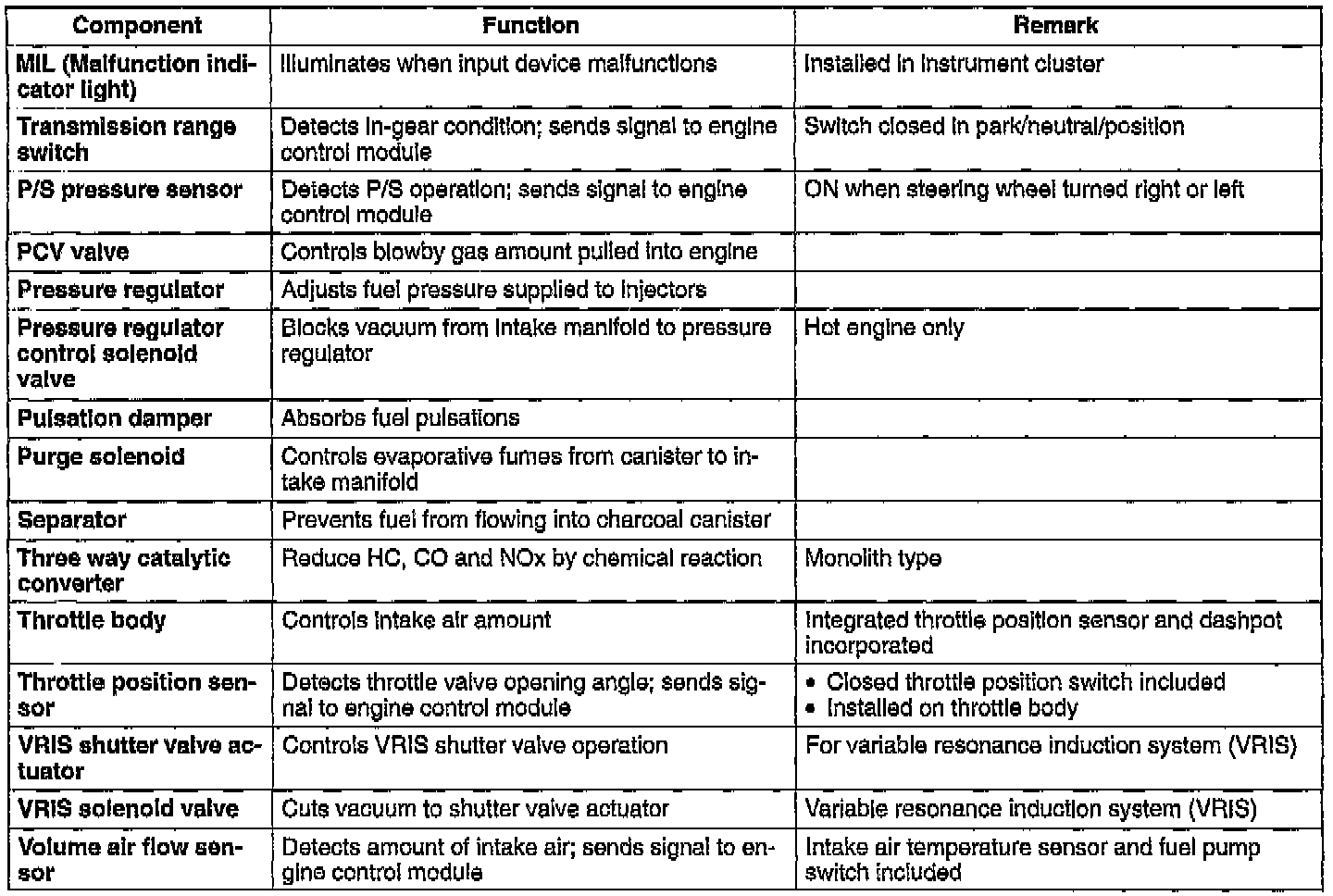

MIL Through Volume Air Flow Sensor:
