Mode Switch

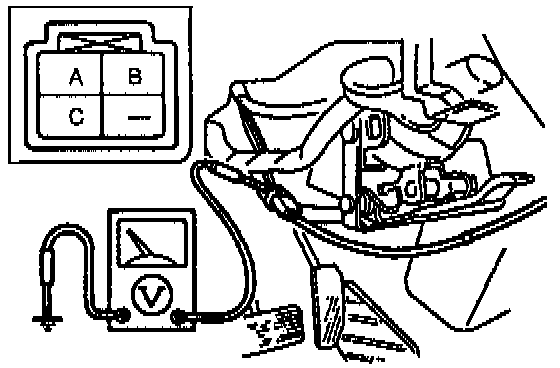

Inspection/Terminal voltage
1. Remove the column covers.
2. Turn the ignition switch ON.




3. Check the voltage between terminal A, and a ground.




4. If not correct, check continuity.

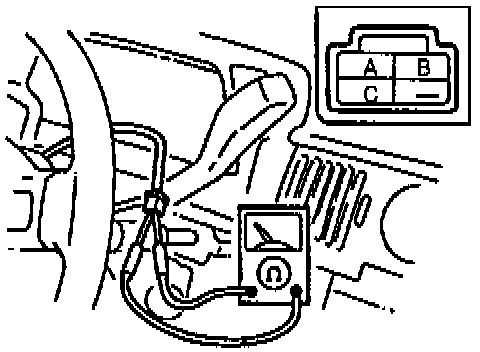

Inspection/Continuity
1. Disconnect the connector.

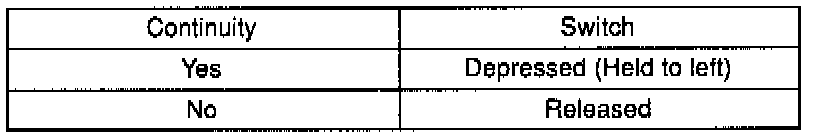

2. Check continuity between terminals A and B.




3. If not correct, replace the gear selector knob as an assembly.
