Transmission Temperature Sensor/Switch: Service and Repair

Removal
1. On level ground, jack up the vehicle and support it evenly on safety stands.




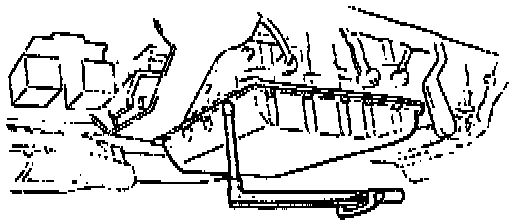

2. Loosen the oil pan mounting bolts, and drain the ATF into a suitable container.

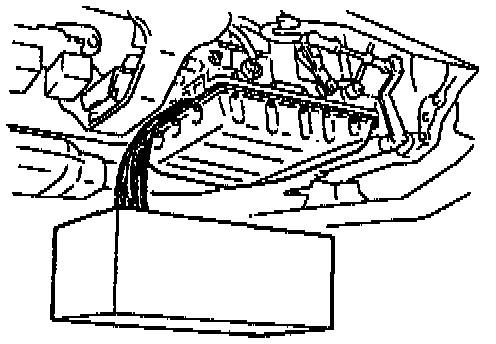

3. Remove the oil pan.

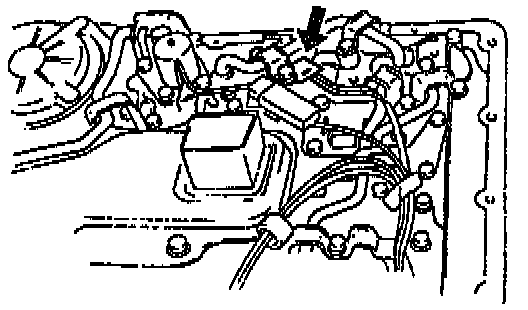

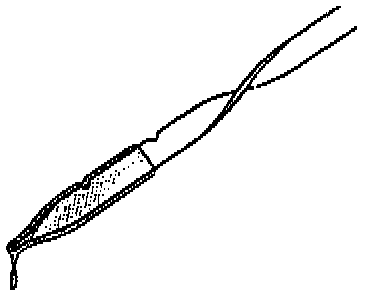

View: Transmission Fluid Temperature Sensor:

4. Remove the control valve body and solenoid connector.

5. Remove the transmission fluid temperature sensor.

Installation
1. Install the ATF transmission fluid temperature sensor and connect the connector.

Tightening torque: 6.9-8.8 Nm (61-78 in.lb.)




2. Install the oil pan.




3. Pour in ATF, and with the engine idling, check the ATF level and check for leaks.
