Home >> Mazda >> 1995 >> MPV 4WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> Central Processing Unit (CPU) (2/2)

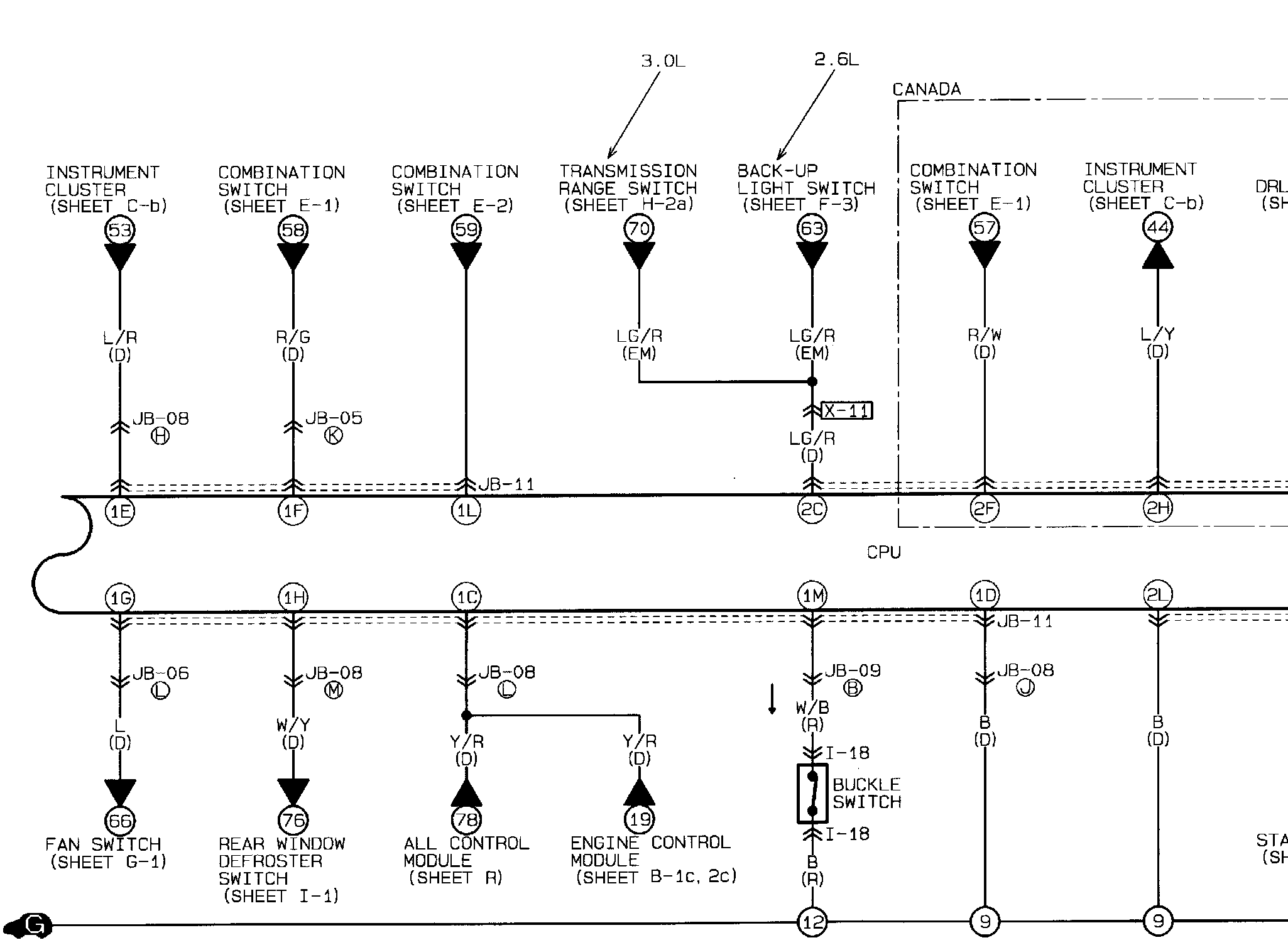

Central Processing Unit (CPU) (2/2)

�-�Central Processing Unit (CPU) (2/2):
