Transmission Fluid Temperature Switch

Inspection
1. Drain the ATF.




2. Disconnect the connector, and remove the transmission fluid temperature switch.

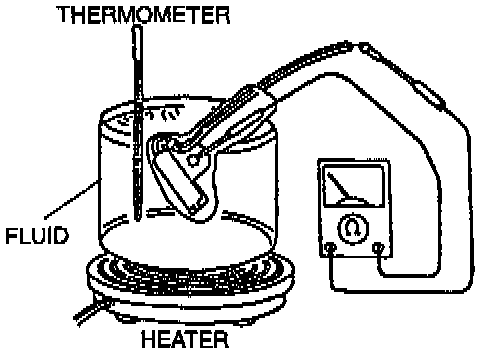

3. Place the transmission fluid temperature switch in fluid with a thermometer as shown, and heat the fluid gradually.

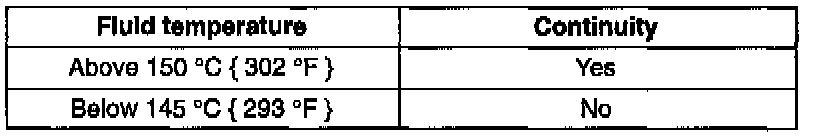

4. Measure the continuity between terminal and bracket.




5. If not correct, replace the transmission fluid temperature switch.
6. Install the transmission fluid temperature switch and connect the connector.

Tightening torque: 6.9-8.8 Nm (61-78 in.lb.)

7. Add ATF to the correct level.
