Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1995 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

Interior Lighting Module

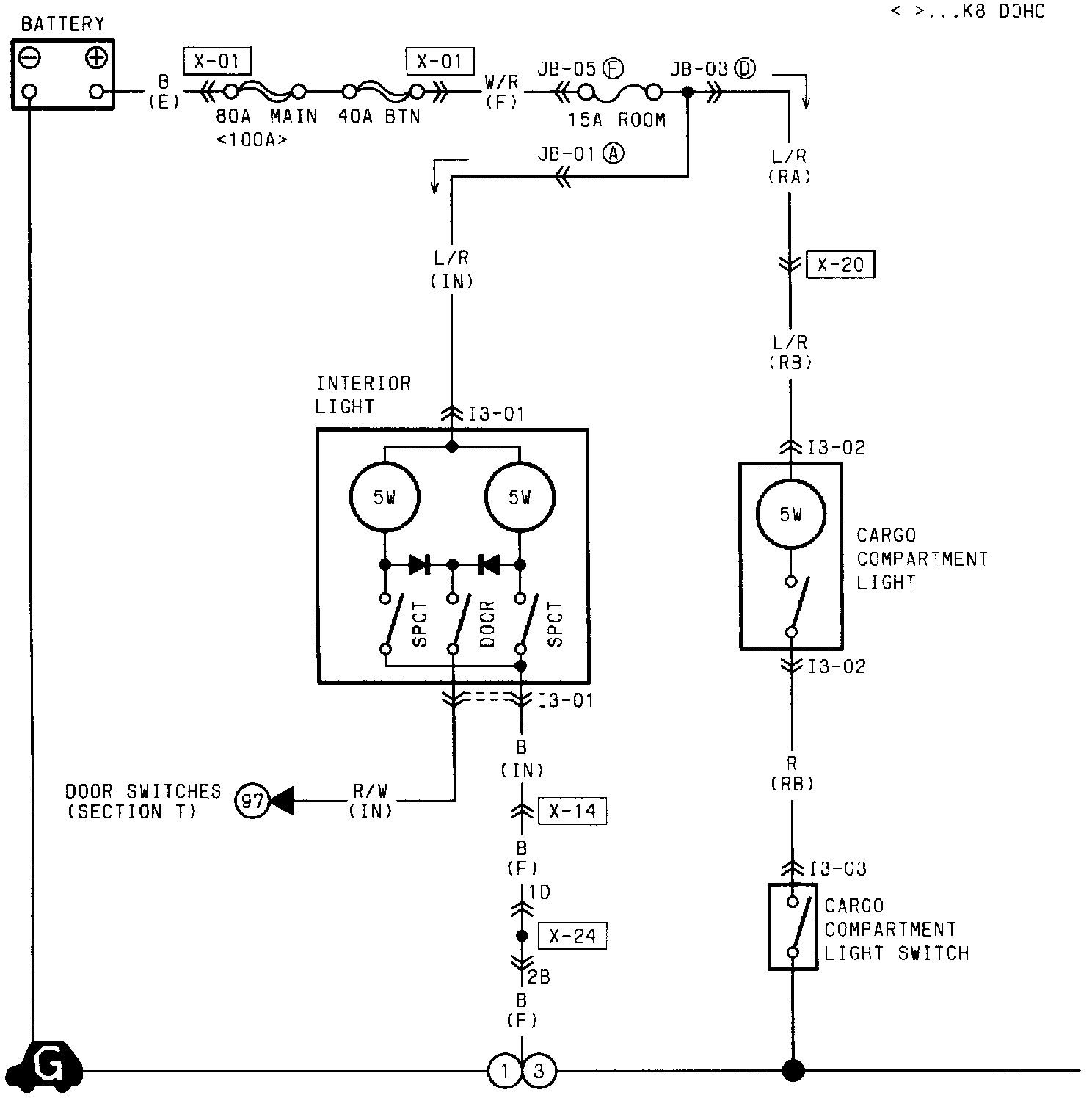

Interior Light, Cargo Compartment Light:
