Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
MX-3 L4-1598cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 1A-1P
Terminals 1A-1P

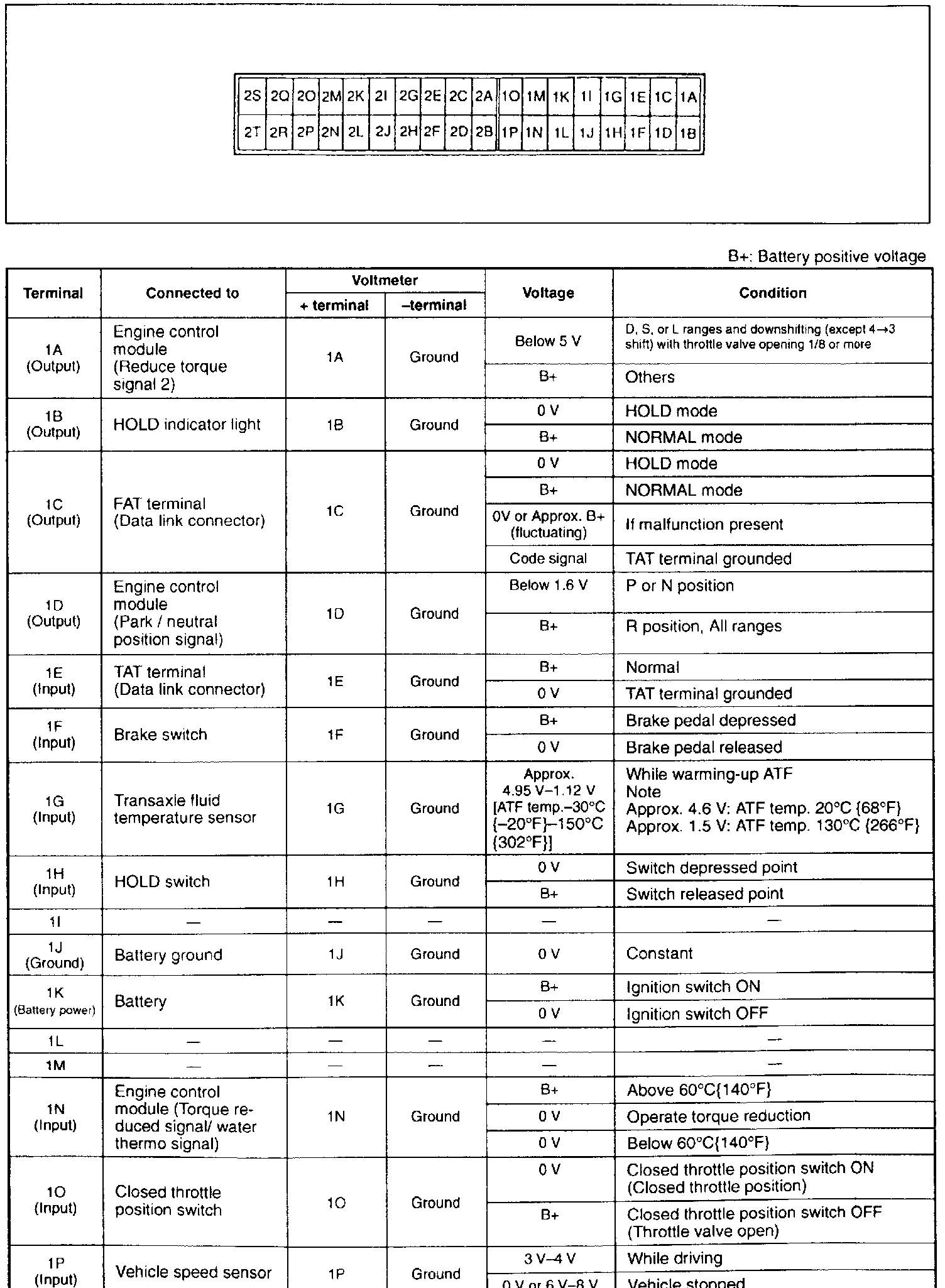

��QTerminal Voltage Chart:
