Power Steering Pressure Switch: Service and Repair

REPLACEMENT

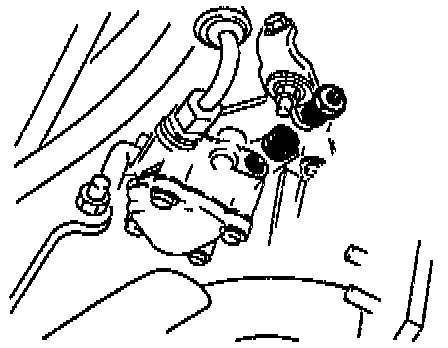

Replace the power steering pressure switch as shown in the figure.

Tightening torque: 25-29 Nm (19-21 ft.lb)
